Installation/Connection
5

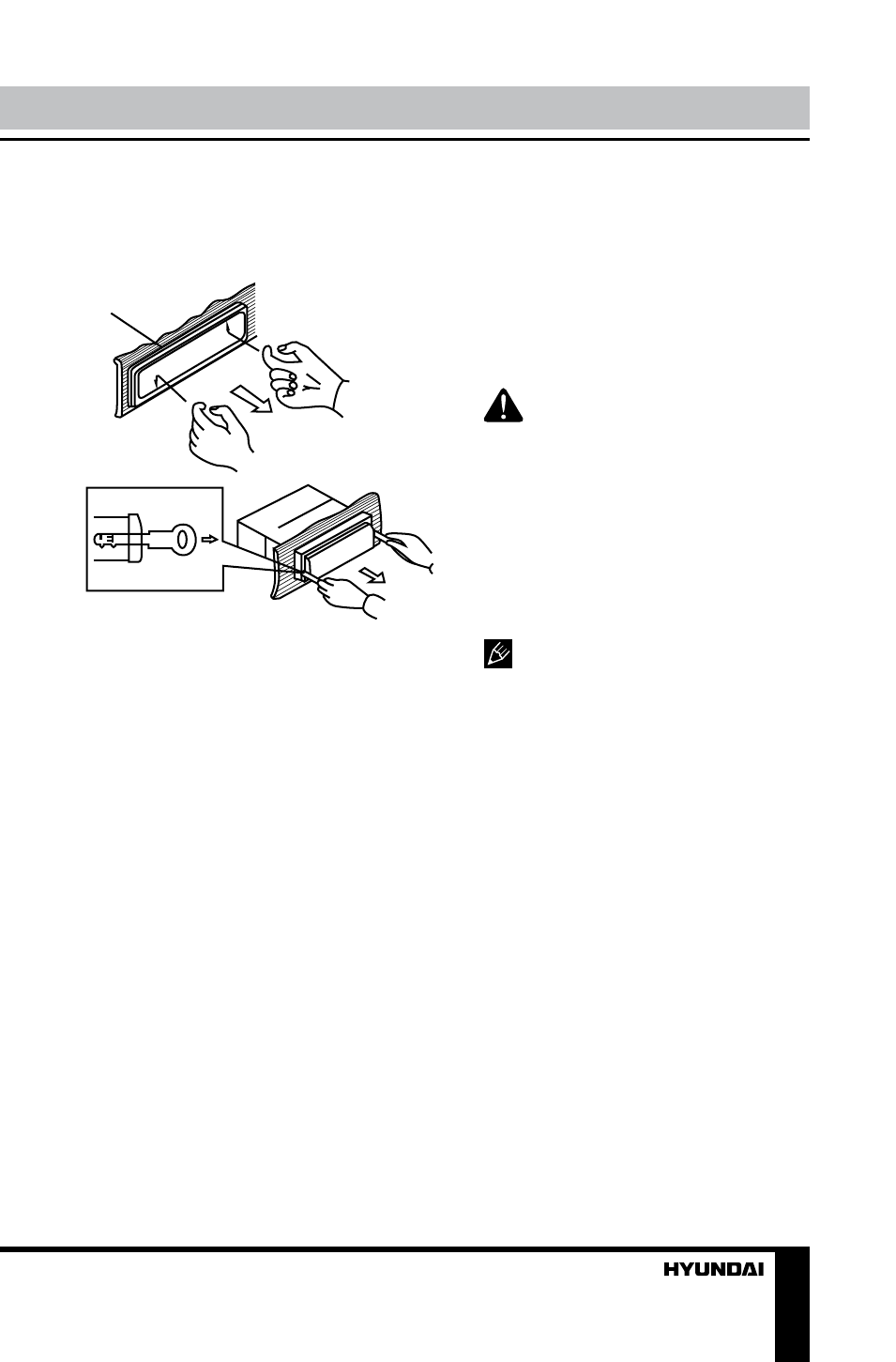

Dismantling the unit
a – Trim frame
b – Frame uninstall direction
c – Release key insertion
в
б
а
1. Switch off the unit and detach the
front panel.
2. Insert your fingers into the groove
in the front side of the trim frame (apply
some effort to detach the frame). Pull
the frame to detach it.
3. Insert the supplied release keys
into the both sides of the unit body
to click, as shown in the picture. To
extract the unit from the dashboard, pull
the release keys or the unit body to pull
it out. Before detaching the unit, ensure
it is not fixed with the metal strap.
Trim frame installation
To install the trim frame, press it
to the unit body and push it to fix it
in place. This should be done before
installing the front panel; otherwise
you are not able to install the trim
frame. When the trim frame being
installed, the side with the groove
should face down and fixed first.
Detachable control panel
Insert the right lockers on the
receiver into the right grooves of the
panel, and then press on the left part
of the panel until a click. Ensure the
panel is fixed properly.
To detach the front panel, press
RELEASE button. Detach the right
part of the panel from the locker.
The control panel can be
easily damaged by shocks. After
removing it, place it in a protective
case and be careful not to drop it
or subject it to strong shocks. The
rear connector that connects the
main unit and the control panel is an
extremely important part. Be careful
not to damage it by pressing on it with
fingernails, pens, screwdrivers, etc.
If the control panel is dirty, wipe
off the dirt with soft, dry cloth only.
And use a cotton swab soaked in
isopropyl alcohol to clean the socket
on the back of the control panel.
Anti-theft system
The front panel of this unit can be
stored in the included protective case
when not in used and carried away
when you leave the vehicle to deter
theft.
Switch off the power of the unit.
Detach the front panel, then put it to
the protective case and take it with
you.
