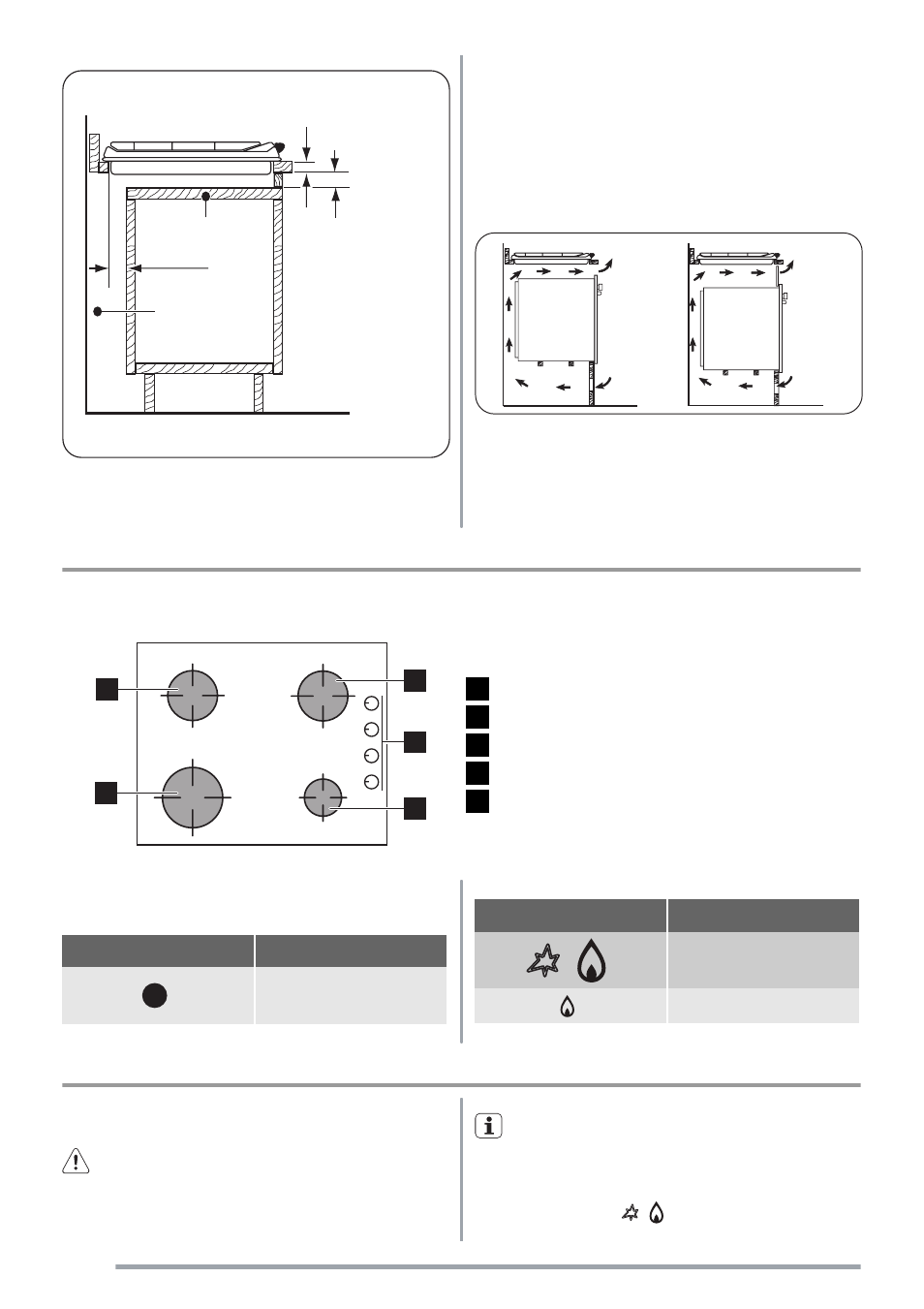

min 20 mm
(max 150 mm)
30 mm
60 mm
b
a
a) Removable panel
b) Space for connections
Kitchen unit with oven
The hob recess dimensions must obey the indication and
must be equipped with brackets to let a continuous supply
of air for safety reasons. The electrical connection of the
hob and the oven must be installed separately. It also lets
the oven to be easily taken off the unit.
50 cm
2
360 cm
2
180 cm2
120 cm
2
MANUFACTURER:
ELECTROLUX ITALIA S.p.A.
C.so Lino Zanussi, 30
33080 PORCIA (PN) - ITALIA
Description of the appliance
Cooking surface layout
2
1
5
4
3
1
Semi-rapid burner
2
Semi-rapid burner
3
Control knobs
4
Auxiliary burner
5
Rapid burner
Control knobs
Symbol
Description
no gas supply / off posi-
tion
Symbol
Description
ignition position / maxi-
mum gas supply
minimum gas supply
Operating the appliance
Ignition of the burner
Warning! Be very careful when you use open fire in
kitchen environment. Manufacturer decline any
responsibility in case misuse of the flame
Always light the burner before you put cookware.
To light the burner:
1. Turn the control knob counterclockwise to the max-
imum position ( ) and push it down.
