• None of a parts of the connection cable can not get a
temperature 90°C. The blue neutral cable must be
connected to the terminal block label with "N". The
brown (or black) phase cable (fitted in the terminal
block contact marked with "L") must always be con-
nected to the live phase.
Replacement of the connection cable
To replace the connection cable use only H05V2V2-F T90,
H05RR-F or H05 BB-F types. Make sure that the cable
section is applicable to the voltage and the working tem-
perature. The yellow/green earth wire must be approxi-
mately 2 cm longer than the brown (or black) phase wire.

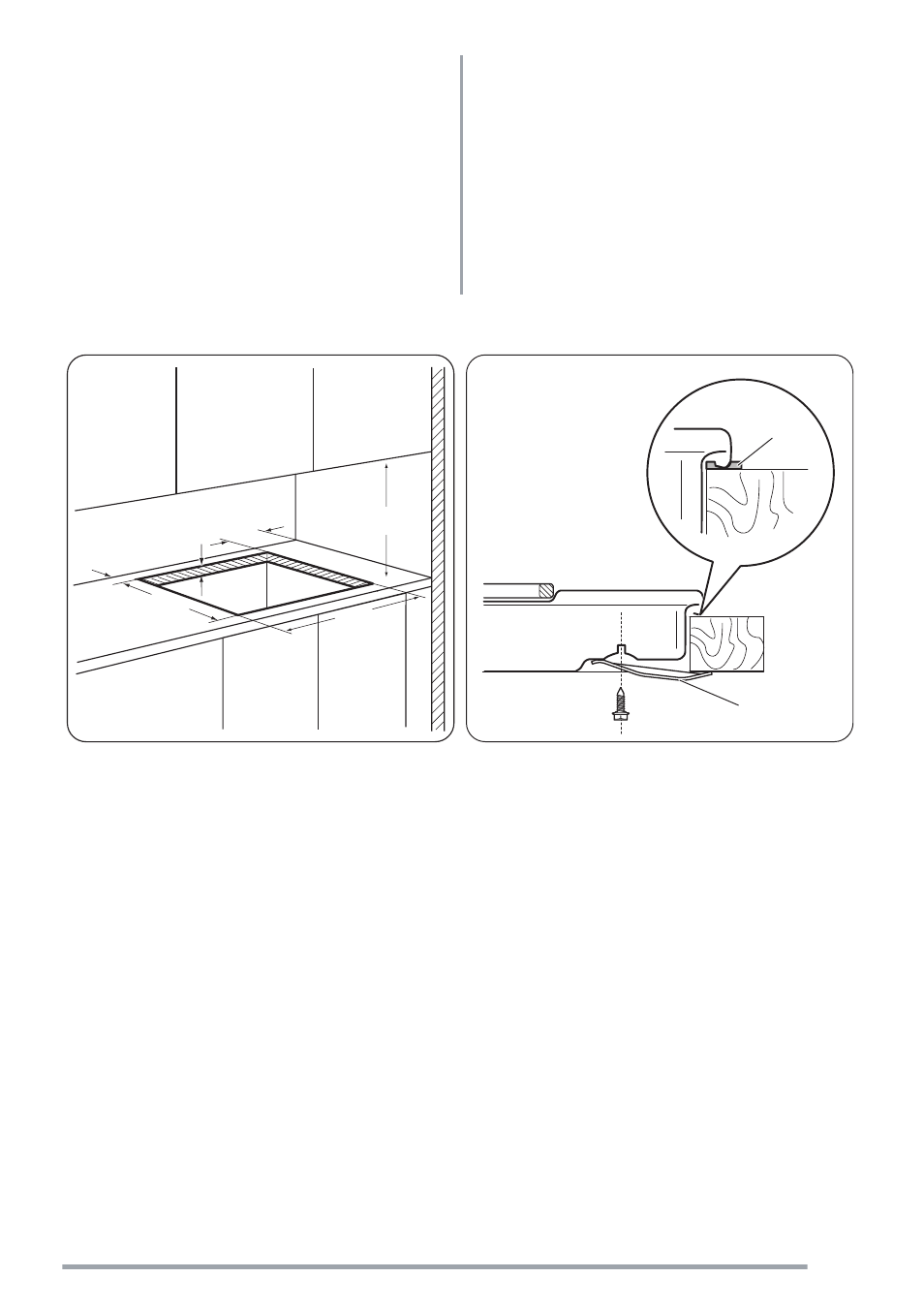

Building In
min. 55 mm
min. 650 mm
550 mm
min. 100 mm
30 mm
470 mm
A
B
A - supplied seal
B - supplied brackets
Possibilities for insertion
Kitchen unit with door
The panel installed below the hob must be easy to remove
and let an easy access in case a technical assistance in-
tervention is necessary.
