7. Building In
INSTALLATION AND ASSEMBLY

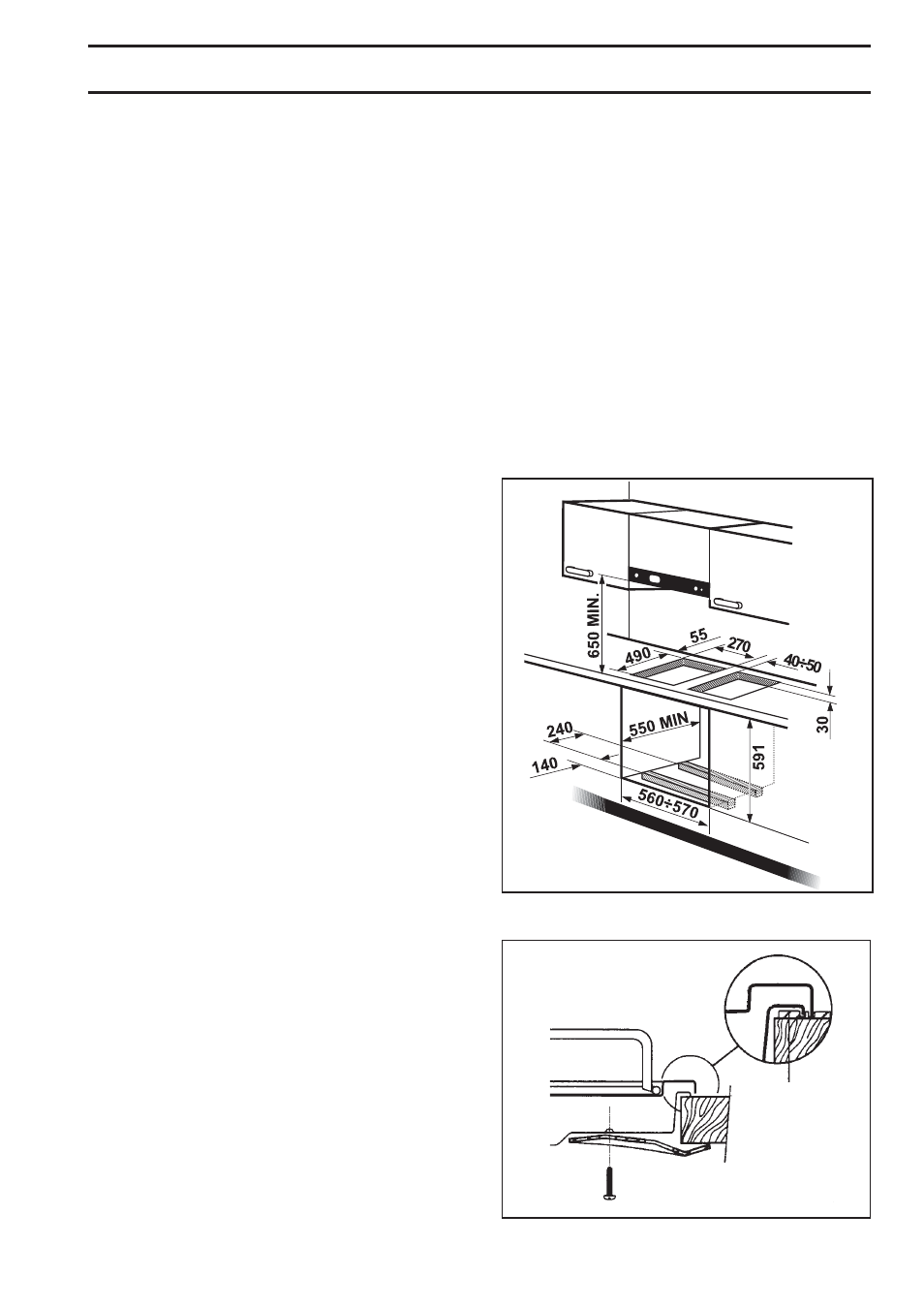

These hobs can be installed in a kitchen unit with an
opening for insertion whose dimensions are shown in Fig.
9.
Carry out the building in of the hob as follows:
• put the relevant sealings, supplied with the hob, on the
edges of the cut out, taking care that the sealings
meet without overlapping;
• place the hob in the cut out, taking care of its centring;
• fix the hob with the relevant screws (Fig. 10). The
traction of the screws is able to trace the sealing, any
excess of which can then be easily removed.
The edge of the hob forms a double labyrinth seal which
provides a total guarantee against infiltration of liquids.
Fig. 10
FO
0 1 9 9
a
a) sealing
Fig. 9
If several 30cm hob are to be installed side by side
into the same cut out, an assembly kit including
a support side bracket and supplementary
sealings is available at our After Sales Centres.
The relevant installation instructions are supplied
within the kit package.
