14
En

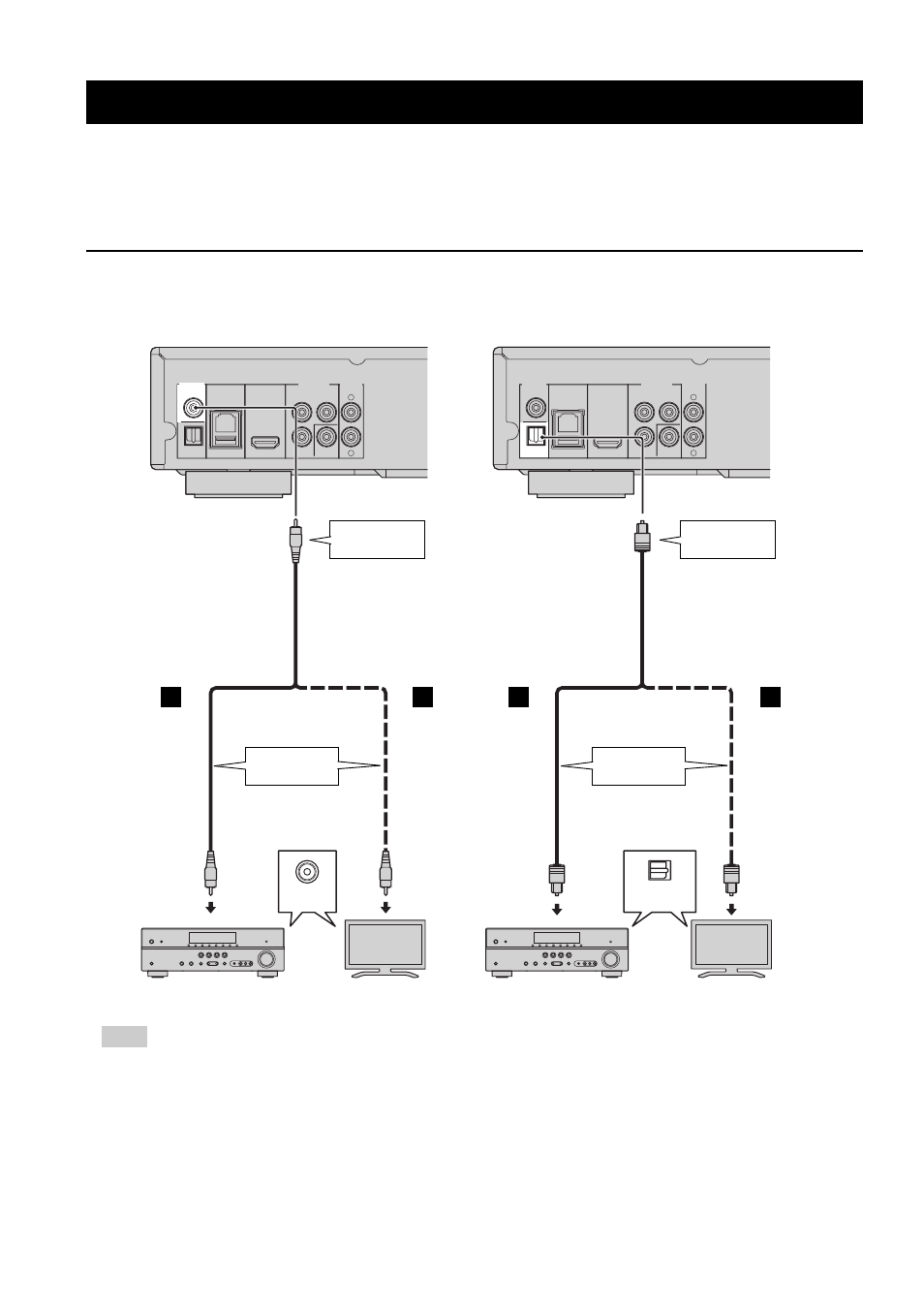

■ Connecting to the digital audio jack/terminal
– You can connect audio equipment or the TV to the COAXIAL jack/OPTICAL terminal.
– Firmly connect a Coaxial digital audio cable (commercially available) or optical cable (commercially available) to
the coaxial digital audio jack or optical digital audio terminal.
– See page 35 for information on the audio output formats.
Caution!
Do not connect the power cable of this Player until all connections are completed.
– For information on the output mode of COAXIAL jack/OPTICAL terminal, refer to the “Coaxial/Optical” (p. 34).
AUDIO CONNECTIONS
Hint
COAXIAL
COMPONENT
P
B
Y
VIDEO
OPTICAL
P
R
DIGITAL OUT
AUDIO OUT
VIDEO OUT
NETWORK
USB
HDMI
R
L
AV INPUT
COAXIAL
COAXIAL
COMPONENT
P
B
Y
VIDEO
OPTICAL
P
R
DIGITAL OUT
AUDIO OUT
VIDEO OUT
NETWORK
USB
HDMI
R
L
DIGITAL AUDIO IN
OPTICAL
This Player
To OPTICAL
terminal
TV
AV receiver
Optical cable
(commercially available)
Coaxial digital audio cable
(commercially available)
This Player
AV receiver
D
D’
To COAXIAL
jack
To coaxial
input jack
To optical
input terminal
TV
D’
E
E’
