Connecting to the HDMI terminal

– You can enjoy high quality digital picture and sound through the HDMI terminal.
– Firmly connect an HDMI cable (commercially available) to the HDMI terminals.
– See page 35 for information on the audio/video output formats.
– Use HIGH SPEED HDMI cables that have the HDMI logo (as shown on the back cover).

Caution!

Do not connect the power cable of this Player until all connections are completed.

HDMI CONNECTION

– When you use the HDMI Control function,

refer to the “HDMI Control” (p. 30).

– For information on the output mode of HDMI

terminal, refer to the “HDMI” (p. 34).

– When no picture is displayed, refer to

“TROUBLESHOOTING” (p. 39).

Connection for the playback

of Blu-ray 3D discs

To enjoy Blu-ray 3D discs on this Player, you need
the following equipments and connections:

– You need a TV and an AV Receiver (if you

need) that have 3D functionality.

– All the components must be connected with

HDMI cables.

– Blu-ray disc should contain 3D images.

Hints

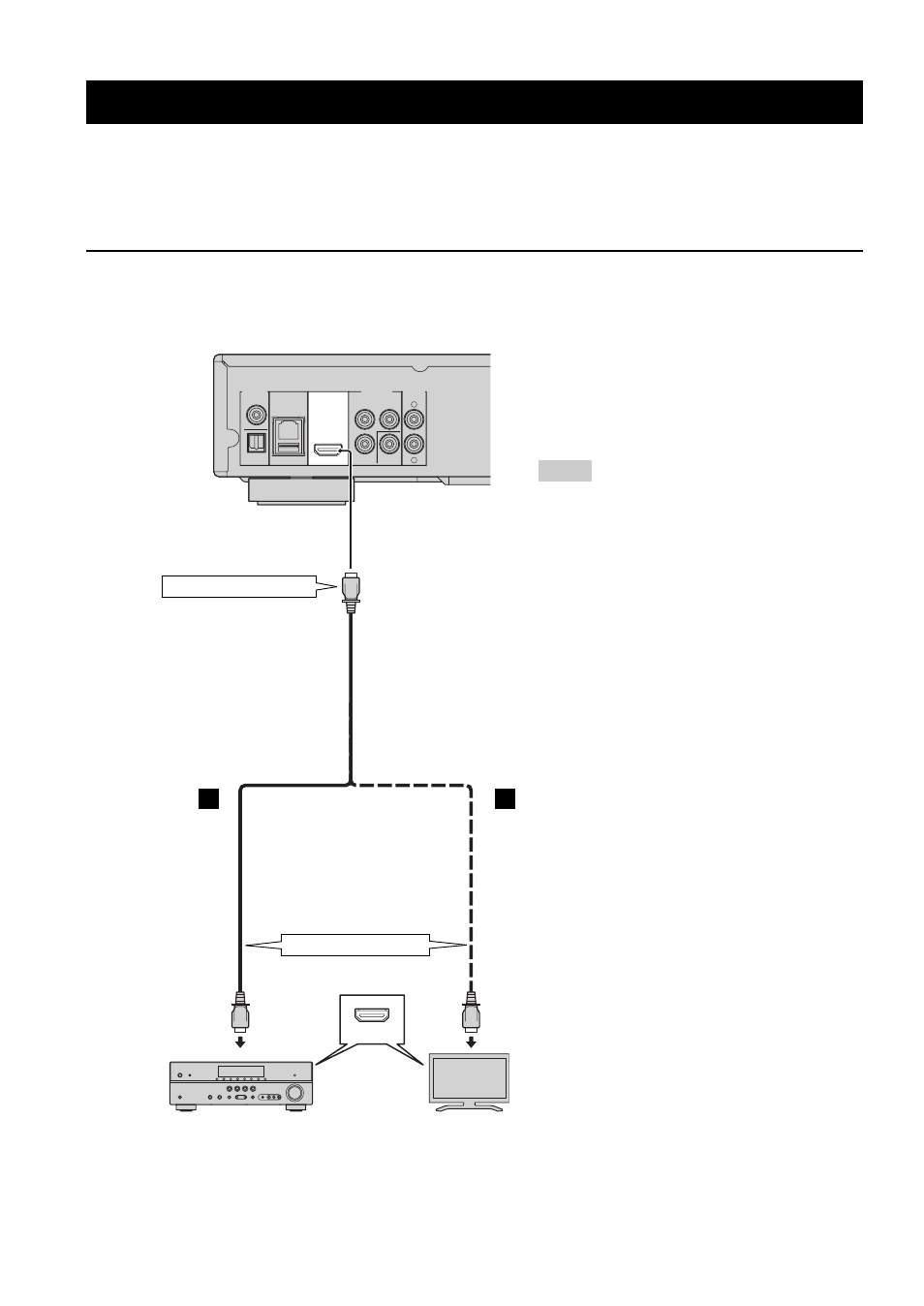

COAXIAL

COMPONENT

P

B

Y

VIDEO

OPTICAL

P

R

DIGITAL OUT

AUDIO OUT

VIDEO OUT

NETWORK

USB

HDMI

R

L

HDMI IN

This Player

To HDMI terminal

HDMI cable

(commercially available)

AV receiver

TV

A

A’

To HDMI input terminal
