E7
1
Remove the dust cap from the lens.
2
Align the lens locating pin to the groove on the camera
mount to fit the lens to the camera mount.
3
Turn the bayonet mount ring on the camera to secure the lens.
4
Connect the power/iris control cable of the lens to the cam-
era.
NOTE
1. Never hold the lens, drive unit and band portion to support
the entire weight of the camera. Excessive force to the mount
portion and drive unit of the lens may result in damage to the
lens mechanism.
2. Rated voltage: 12 VDC
Normal operation range: 10 to 17 VDC
If a battery or adapter is used, the output voltage may be
higher than the rated voltage depending on the manufacturers
and therefore the above voltages must be observed strictly.
If a voltage outside the normal operation range is used, the
drive unit may be damaged. And the lens power input has
the positive and negative polarities. Make sure to connect
the power cable to the correct polarity when connecting
the batteries or the adaptors. Connecting the cable to the
incorrect polarity may cause the damage to the product.

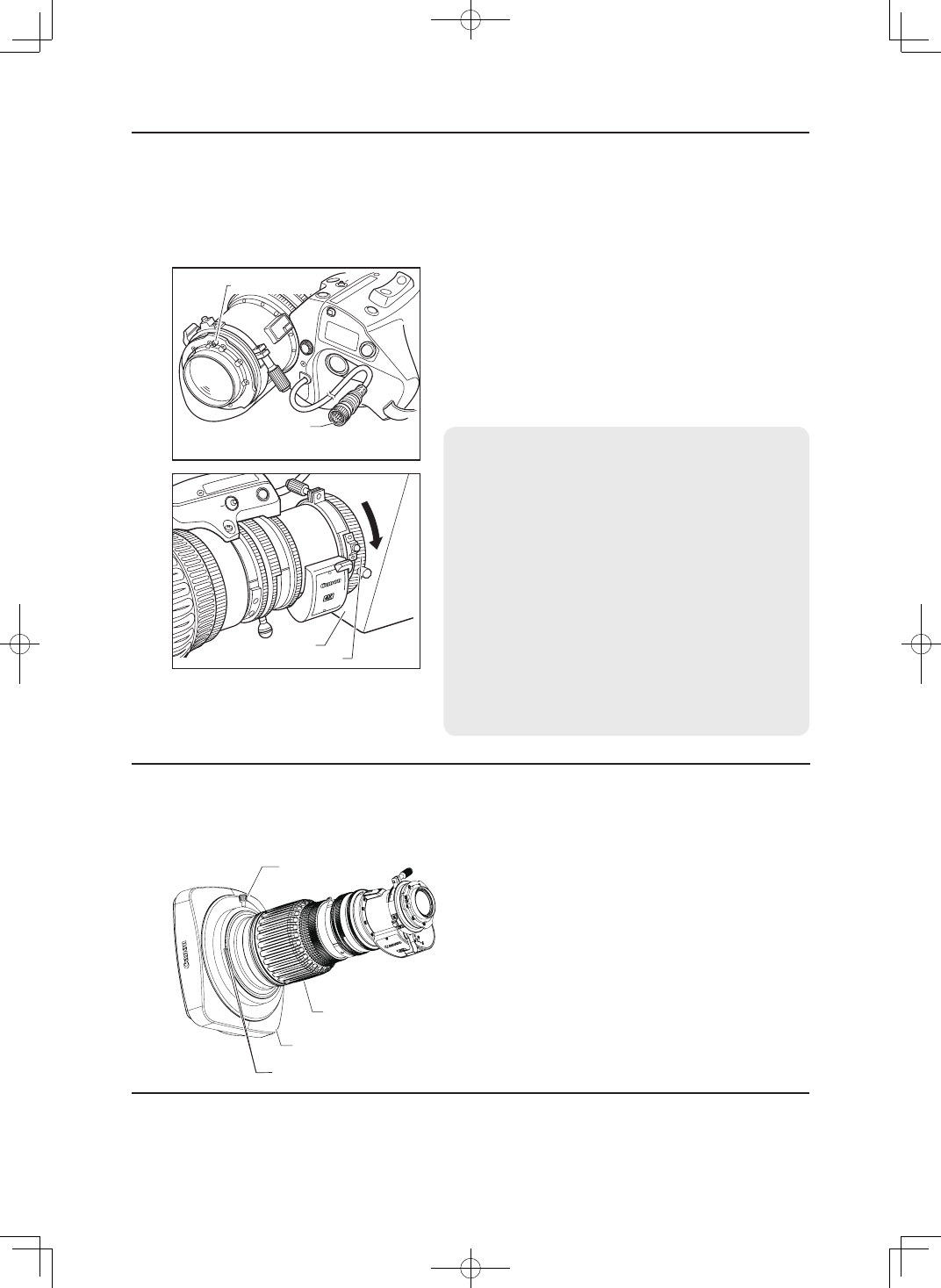

2 HOW TO MOUNT
2-1. MOUNT THE LENS ON THE CAMERA
Before mounting the lens on the camera,make sure that the camera's power is turned off.
VTR
DISPLA
Y
RET
MEMO
AUX
T
W
ڦ
ڦ ڦ ڦ ڦ ڦ
Power/Iris
Control Cable
Locating Pin
ڦ
ڦ
ڦ
ڦ
ڦ
ڦ
ڦ
ڦ
ڦ
M
AUX
MEMO
Camera
Bayonet Mount Ring
Secure
2 HOW TO MOUNT
1
Fit the hood on the front of the lens barrel.
2
Align the index marks on the hood and lens barrel.
3
Tighten the hood lock knob.
Hood Lock Knob
Lens Barrel
Hood
Index Mark
2-3. TURN IT ON
Turn on the camera,and the power of the lens will be supplied.
2-2. MOUNT THE HOOD ON THE LENS
The lens cap is attached to the lens at the factory. Please remove the lens cap before mounting the
hood.
