• Never bridge or combine the speaker wire outputs. When not using four speakers, use electrical tape to tape the
ends of the unused speaker outputs to prevent a short circuit.
• Never ground the negative speaker terminals to chassis ground.

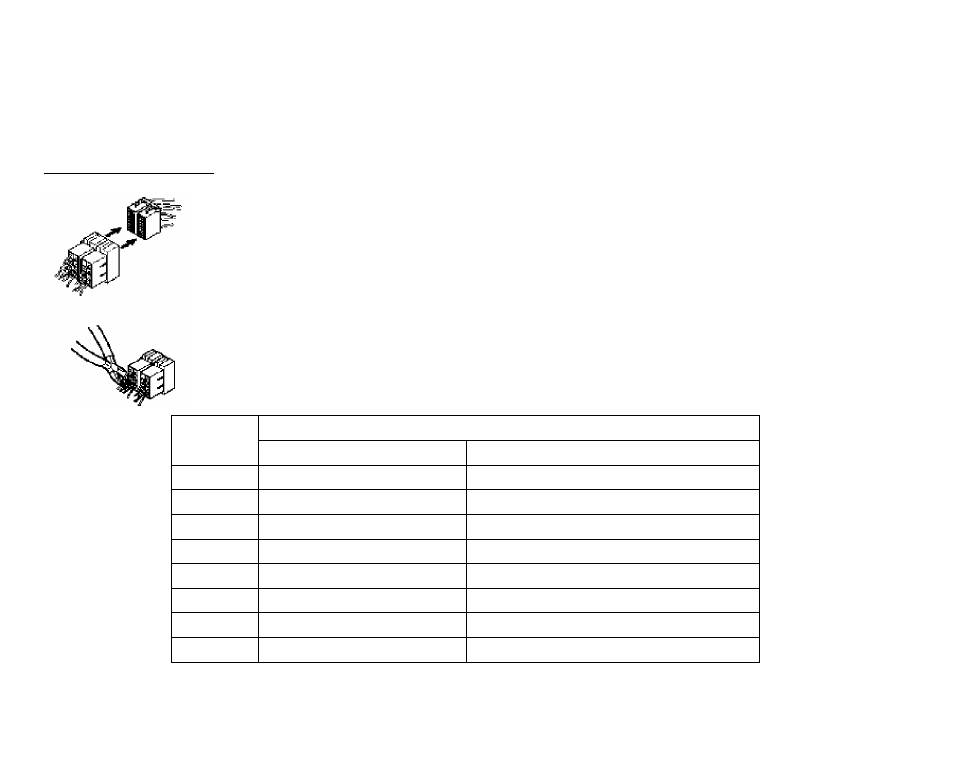

Using the ISO Connector
1. If your car is equipped with the ISO connector, then connect the ISO connectors as
illustrated.
2. For connections without the ISO connectors, check the wiring in the vehicle carefully
before connecting, incorrect connection may cause serious damage to this unit.
Cut the connector; connect the colored leads of the power cord to the car battery as shown in
the color code table below for speaker and power cable connections.
Location
Function
Connector A Connector B
1 Rear Right (+)—Blue
2 Rear Right (-)—Blue/White Stripe
3 Front Right (+)—Grey
4 Battery 12 V (+)/yellow Front Right (-)—Grey/White Stripe
5 Auto Antenna/orange Front Left (+)---Green
6 Panel light/white Front Left ((-)—Green/White Stripe
7 ACC+/red Rear Left (+)—Brown
8 Ground/black Rear Left (-)—Brown/White Stripe
9
