38
If the front panel does not open
because of a blown fuse
1
Press the clip inside the front cover with
a release key (supplied), and pry the
front cover free.
2
Repeat step 1 on the left side.
The front cover is removed.
3
Use a release key to push in the clip on
the left side of the unit, then pull out the
left side of the unit until the catch clears
the mounting.
4
Repeat step 3 on the right side.
5
Slide the unit out of the mounting.

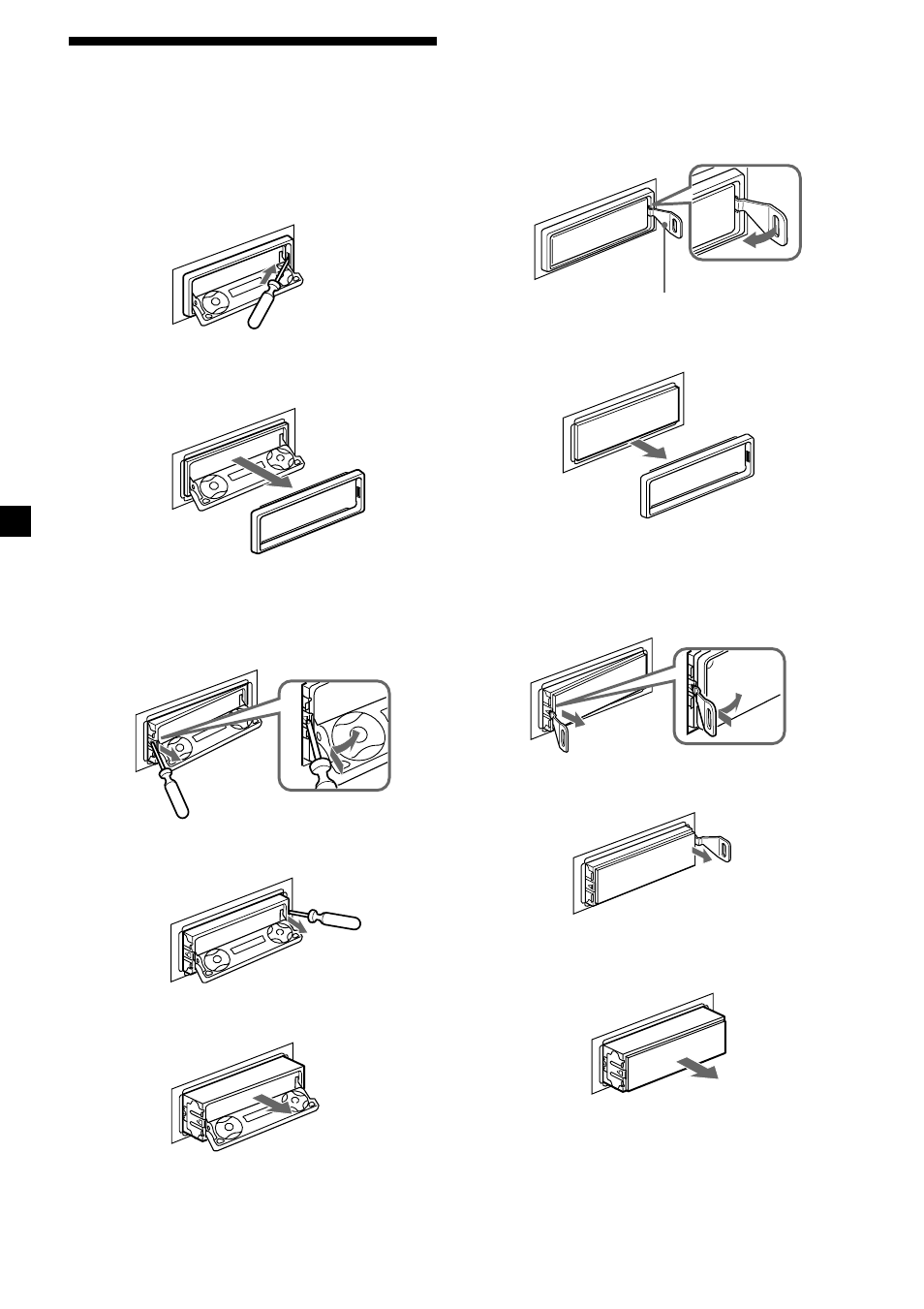

Dismounting the unit
With the front panel open
1
Press (OPEN) of the unit, then press the
clip inside the front cover with a thin
screwdriver, and gently pry the front
cover free.
2
Repeat step 1 on the left side.
The front cover is removed.
3
Use a thin screwdriver to push in the clip
on the left side of the unit, then pull out
the left side of the unit until the catch
clears the mounting.
4
Repeat step 3 on the right side.
5
Slide the unit out of the mounting.
Release key (supplied)
