Installation of gas cookers
^Before your appliance is Connection of the gas hose to the
connected to the gas supply, oven
check the ensure that the gas convenient position is selected by interchanging
category and pressure
, i i » + 1 ,
specifications shown in the data P'^9 according to the
plate corresponds with your gas location of the mam gas inlet valve. If you make
supply. If necessary call ^ connection with a flexible metal hose , locate
authorized service for a seal between the main gas pipe. The inner
adjusting to gas category. diameter of the flexible hose, which the butane
hose nozzle is connected, should be 6mm for
*This appliance shall be installed the house-type gas tubes.
in accordance with the The inner diameter of the flexible hose, which
regulations in force and only used
in a well ventilated space. Read
'
the instructions before installing ^ hose should tightly be fitted to
or using this appliances. squeezing with a clamp.The
In the interest of safety this plastic hose end is soaked In hot water for one
appliances must be installed minute to soften and inserted fully into the
and/or serviced by a competent hose nozzle. The damp is fastened securely by
person as stated in the gas safety a screw driver. The other end of the hose is
regulations current editions, connected to the gas valve with the same
operation.
* Please refer to the data plate . . . . . , ^ j ^ ,
. The hose should be replaced before its last
for details about gas supply and
pressures. Hose
* The appliance must not be : s
installed in a room without a 1 ^
window or other controllable ^ ® f *
opening. If
IS
installed in a room : ^ z - z m ^
without a door which opens , , ^ ^ ^ ^ ^
dirprtiv tn tnhp niit^idp a Caution!
oirectiy to tone outside, a Make the oven connection to the gas
permanent opening is required, ¡„let valve, the hose length must be
The air circulation should be 2 short and be sure that there is no
m3/h per kW of burners, leakage. The hose used should not
be longer than 125 cm for safety.
3 O-ring 1
hose 'p
P {seal}
nozzle ^ hoss
IPG nozzle
NG

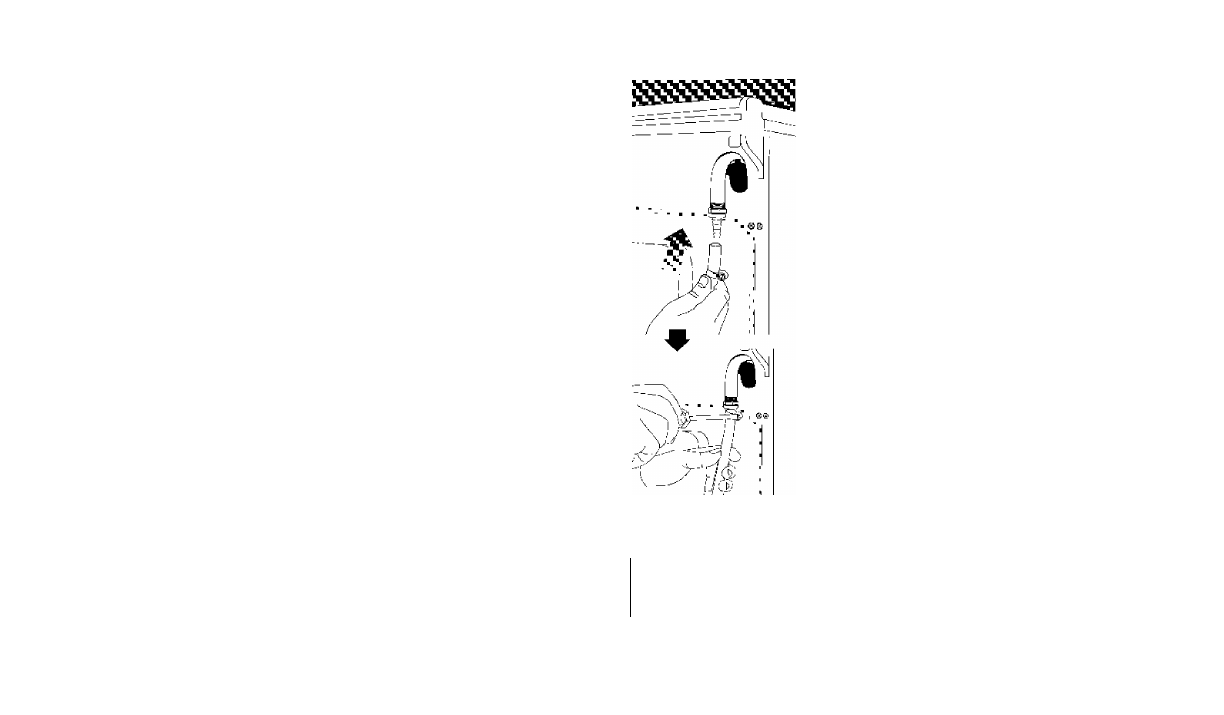

Connection of the gas hose
to the oven
Convenient position is selected by
interchanging the hose nozzle and
plug according to the location of the
main gas inlet valve. The plastic hose
end is soaked in hot water for one
minute to soften and inserted fully
into the hose nozzle. The clamp is
fastened securely by a screw driver.
The other end of the hose is
connected to the gas valve with the
same operation.
Gas leakage control
During control, be sure that the control
knobs are closed and the gas inlet
valve is open. Apply soap bubbles to
the connections for leakage control.
In case leakage exists, buble will
appear. In such case, check the gas
connection immediately. Do not
control gas leaks by using fire.
Caution!
Never use lighter or match flame,
for controlling the gas lackage.
Chmp
Tube
Hose nozzle and elbow
types for Natural gas
and Butane/propane
