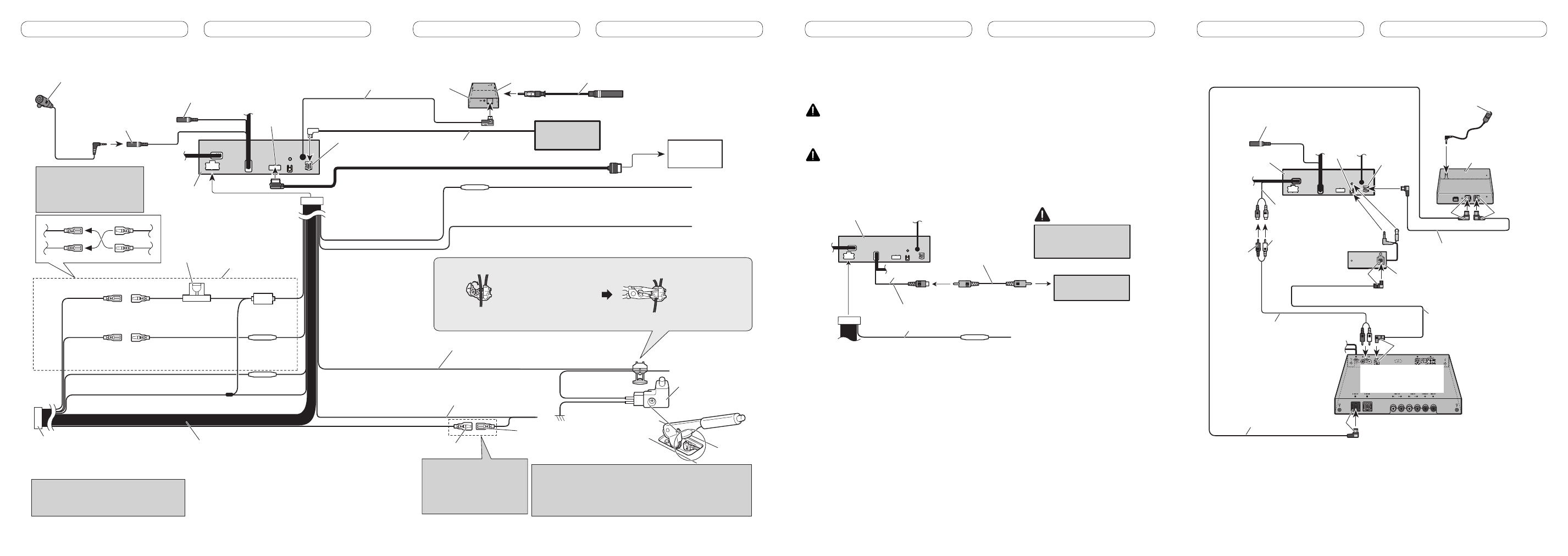

Connecting the power cord
26 pin cable (Supplied with Navigation unit)
Insert the 26 pin cable in the direction indicated in the figure.
Navigation unit
(AVIC-F220 (sold
separately)).
Notes:
· Change the initial setting of this unit (refer to the Operation Manual). The
subwoofer output of this unit is monaural.
· When using a subwoofer of 70 W (2 Ω) , be sure to connect with Violet and
Violet/black leads of this unit. Do not connect anything to Green and
Green/black leads.
Connection method
1. Clamp the lead. 2. Clamp firmly with
needle-nosed pliers.
Note:
· The position of the parking brake switch depends on the vehicle model. For details, consult the vehicle
Owner’s Manual or dealer.
Yellow/black
If you use an equipment with Mute function, wire this lead to the Audio Mute lead on
that equipment. If not, keep the Audio Mute lead free of any connections.
Light green
Used to detect the ON/OFF status of the parking brake.
This lead must be connected to the power supply side of
the parking brake switch.
Blue/white
Connect to system control
terminal of the power amp
(max. 300 mA 12 V DC).
Blue/white (6*)
Connect to auto-antenna relay control
terminal (max. 300 mA 12 V DC).
The pin position of the ISO
connector will differ depending on
the type of vehicle. Connect 5* and
6* when Pin 5 is an antenna control
type. In another type of vehicle,
never connect 5* and 6*.
Blue/white (5*)
Ground side
Power supply side
Parking brake
switch
Speaker leads
White: Front
left 
White/black: Front left 
Gray: Front right 
Gray/black: Front right 
Green: Rear left  or subwoofer 
Green/black: Rear left  or subwoofer 
Violet: Rear right  or subwoofer 
Violet/black: Rear right  or subwoofer 
ISO connector
Note:
In some vehicles, the ISO connector may be divided into
two. In this case, be sure to connect to both connectors.
Note:
Depending on the kind of vehicle,
the function of 2* and 4* may be
different. In this case, be sure to
connect 1* to 4* and 3* to 2*.
1*
3*
2*
4*
Yellow (2*)
Back-up
(or accessory) Yellow (1*)
Connect to the constant 12 V
supply terminal.
Connect leads of the same
color to each other.
Fuse resistor
Red (4*)
Accessory
(or back-up) Red (3*)
Connect to terminal controlled by
ignition switch (12 V DC).
Black (chassis ground)
Connect to a clean, paint-free metal location.
This product
Microphone input Jack (MIC)
Microphone (supplied) Antenna input
Fuse resistor
Orange/white
Connect to lighting switch terminal. Fuse resistor
Violet/white
Of the two lead wires connected to the back lamp, connect the one in which the
voltage changes when the gear shift is in the REVERSE (R) position. This connection
enables the unit to sense whether the car is moving forwards or backwards.
4 m
Fuse (10 A)
Please contact your dealer to inquire
about the connectable navigation unit.
Tuner box (supplied)
Antenna cable (supplied)
80 cm
80 cm Wired remote input (WIRED REMOTE INPUT)
Hard-wired remote control adaptor can be
connected (sold separately).
RGB input
17 cm
17 cm
When you connect the separately sold
multi-channel processor (DEQ-P6600) to this unit,
do not connect anything to the speaker
leads and system remote control (blue/white).
IP-BUS input
(Blue)
Pioneer IP-BUS
accessories
IP-BUS cable
Connecting the units Connecting the units Connecting the units Connecting the units
When connecting with a rear view camera
When this product is used with a rear view camera, it is possible to automatically switch
from the video to rear view image when the gear shift is moved to REVERSE (R).
WARNING
USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY
RESULT IN INJURY OR DAMAGE.
CAUTION
• The screen image may appear reversed.
• The rear view camera function is to be used as an aid for backing into a tight parking spot. Do
not use this function for entertainment purposes.
• Objects in the rear view may appear closer or more distant than they actually are.
To video output
Rear view camera
(sold separately)
Rear view camera input (REAR VIEW CAMERA IN)
Violet/white
Of the two lead wires connected to the back lamp, connect the one
in which the voltage changes when the gear shift is in the
REVERSE (R) position. This connection enables the unit to
sense whether the car is moving forwards or backwards.
You must use a camera
which outputs mirror
reversed images.
CAUTION
Fuse resistor
This product
RCA cable (sold separately)
15 cm
13 cm
• It is necessary to set Camera Polarity properly in System Menu when connecting the rear view camera.
When connecting with a multi-channel processor
IP-BUS cable (supplied with
multi-channel processor)
RCA cable (supplied with
multi-channel processor)
Optical cable
(supplied with
multi-channel processor)
This product
IP-BUS cable
(Supplied with Bluetooth adapter)
Black
Bluetooth adapter
(e.g. CD-BTB200)
(sold separately)
Microphone
for hands-free phoning
(supplied with Bluetooth adapter)
Black
Optical cable connection box
(supplied with multi-channel processor)
To SWL
To SWR
Blue
Blue
Multi-channel processor
(e.g., DEQ-P6600)
(sold separately)
Black
IP-BUS input
Optical
output
Wired remote input (WIRED REMOTE INPUT)
Hard-wired remote control adaptor can be
connected (sold separately).
17 cm
17 cm
Subwoofer output
(SUBWOOFER OUTPUT
or NON-FADING OUTPUT
)
