Installation Manual
Руководство по установке
DVD AV RECEIVER
DVD AV РЕСИВЕР
AVH-P5200BT
WARNING
• To avoid the risk of accident and the potential
violation of applicable laws, the front DVD or TV
(sold separately) feature should never be used
while the vehicle is being driven. Also, rear displays
should not be in a location where it is a visible
distraction to the driver.
• In some countries or states the viewing of images
on a display inside a vehicle even by persons
other than the driver may be illegal. Where such
regulations apply, they must be obeyed and this
unit’s DVD features should not be used.
CAUTION
• PIONEER does not recommend that you install
or service your display yourself. Installing or
servicing the product may expose you to risk
of electric shock or other hazards. Refer all
installation and servicing of your display to
authorized Pioneer service personnel.
• Secure all wiring with cable clamps or
electrical tape. Do not allow any bare wiring to
remain exposed.
• Do not drill a hole into the engine compartment
to connect the yellow lead of the unit to
the vehicle battery. Engine vibration may
eventually cause the insulation to fail at
the point where the wire passes from the
passenger compartment into the engine
compartment. Take extra care in securing the
wire at this point.
• It is extremely dangerous to allow the display
lead to become wound around the steering
column or gearshift. Be sure to install the
display in such a way that it will not obstruct
driving.
• Make sure that wires will not interfere with
moving parts of the vehicle, such as the
gearshift, parking brake or seat sliding
mechanism.
• Do not shorten any leads. If you do, the
protection circuit may fail to work properly.
WARNING
LIGHT GREEN LEAD AT POWER CONNECTOR
IS DESIGNED TO DETECT PARKED STATUS
AND MUST BE CONNECTED TO THE POWER
SUPPLY SIDE OF THE PARKING BRAKE SWITCH.
IMPROPER CONNECTION OR USE OF THIS LEAD
MAY VIOLATE APPLICABLE LAW AND MAY RESULT
IN SERIOUS INJURY OR DAMAGE.
Important
• This unit cannot be installed in a vehicle without
ACC (accessory) position on the ignition switch.
ACC ON
S
T
A
R
T
O
FF
ON
S
T
A
R
T
O
FF
ACC position No ACC position
• Use of this unit in conditions other than the
following could result in fire or malfunction.
— Vehicles with a 12-volt battery and negative
grounding.
— Speakers with 50 W (output value) and 4 ohm to
8 ohm (impedance value).
• To prevent short-circuit, overheating or malfunction,
be sure to follow the directions below.
— Disconnect the negative terminal of the battery
before installation.
— Secure the wiring with cable clamps or adhesive
tape. Wrap adhesive tape around wiring that
comes into contact with metal parts to protect
the wiring.
— Place all cables away from moving parts, such
as gear shift and seat rails.
— Place all cables away from hot places, such as
near the heater outlet.
— Do not connect the yellow cable to the battery
by passing it through the hole to the engine
compartment.
— Cover any disconnected cable connectors with
insulating tape.
— Do not remove RCA caps if RCA cables are not
used.
— Do not shorten any cables.
— Never cut the insulation of the power cable of
this unit in order to share the power with other
devices. The current capacity of the cable is
limited.
— Use a fuse of the rating prescribed.
— Never wire the speaker negative cable directly to
ground.
— Never band together negative cables of multiple
speakers.
• When this unit is on, control signals are sent
through the blue/white cable. Connect this cable to
the system remote control of an external power amp
or the vehicle’s auto-antenna relay control terminal
(max. 300 mA 12 V DC). If the vehicle is equipped
with a glass antenna, connect it to the antenna
booster power supply terminal.
• Never connect the blue/white cable to the power
terminal of an external power amp. Also, never
connect it to the power terminal of the auto
antenna. Doing so may result in battery drain or a
malfunction.
• IP-BUS connectors are color-coded. Be sure to
connect connectors of the same color.
• The black cable is ground. Ground cables for
this unit and other equipment (especially, high-
current products such as power amps) must be
wired separately. If they are not, an accidental
detachment may result in a fire or malfunction.
<KNANX> <09K00000>
Printed in Thailand
Отпечатано в Таиланде
<CRD4485-A/N> UW

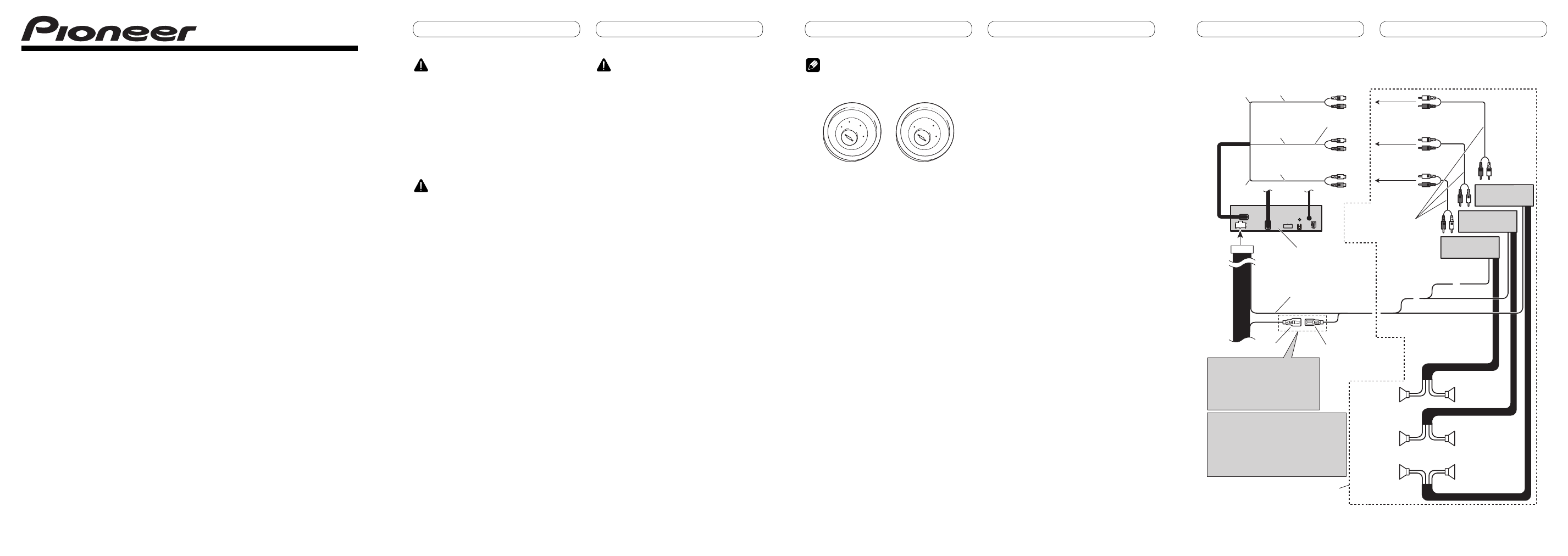

When connecting to separately sold power amp












Blue/white
Connect to system control
terminal of the power amp
(max. 300 mA 12 V DC).
Connect with RCA cables
(sold separately)
Rear speaker
Perform these connections when
using the optional amplifier.
System remote control
Front speaker Front speaker
Left Right
Rear speaker
Power amp
(sold separately)
Power amp
(sold separately)
Power amp
(sold separately)
Subwoofer
Subwoofer
To front output
To rear output
To subwoofer
output
This product
Rear output
(REAR OUTPUT)
Front output
(FRONT OUTPUT)
Subwoofer output
(SUBWOOFER OUTPUT)
13 cm
13 cm
17 cm
Blue/white (6*)
Connect to auto-antenna
relay control terminal
(max. 300 mA 12 V DC).
The pin position of the ISO connector
will differ depending on the type of
vehicle. Connect 5* and 6* when Pin
5 is an antenna control type. In
another type of vehicle, never
connect 5* and 6*.
Blue/white (5*)
· When you connect the separately sold
multi-channel processor (DEQ-P6600) to this
unit, do not connect anything to the speaker
leads and system remote control (blue/white).
· When you connect the multi-channel
processor to this unit, refer to multi-channel
processor’s installation manual for the
connection method.
Connecting the units Connecting the units Connecting the units
