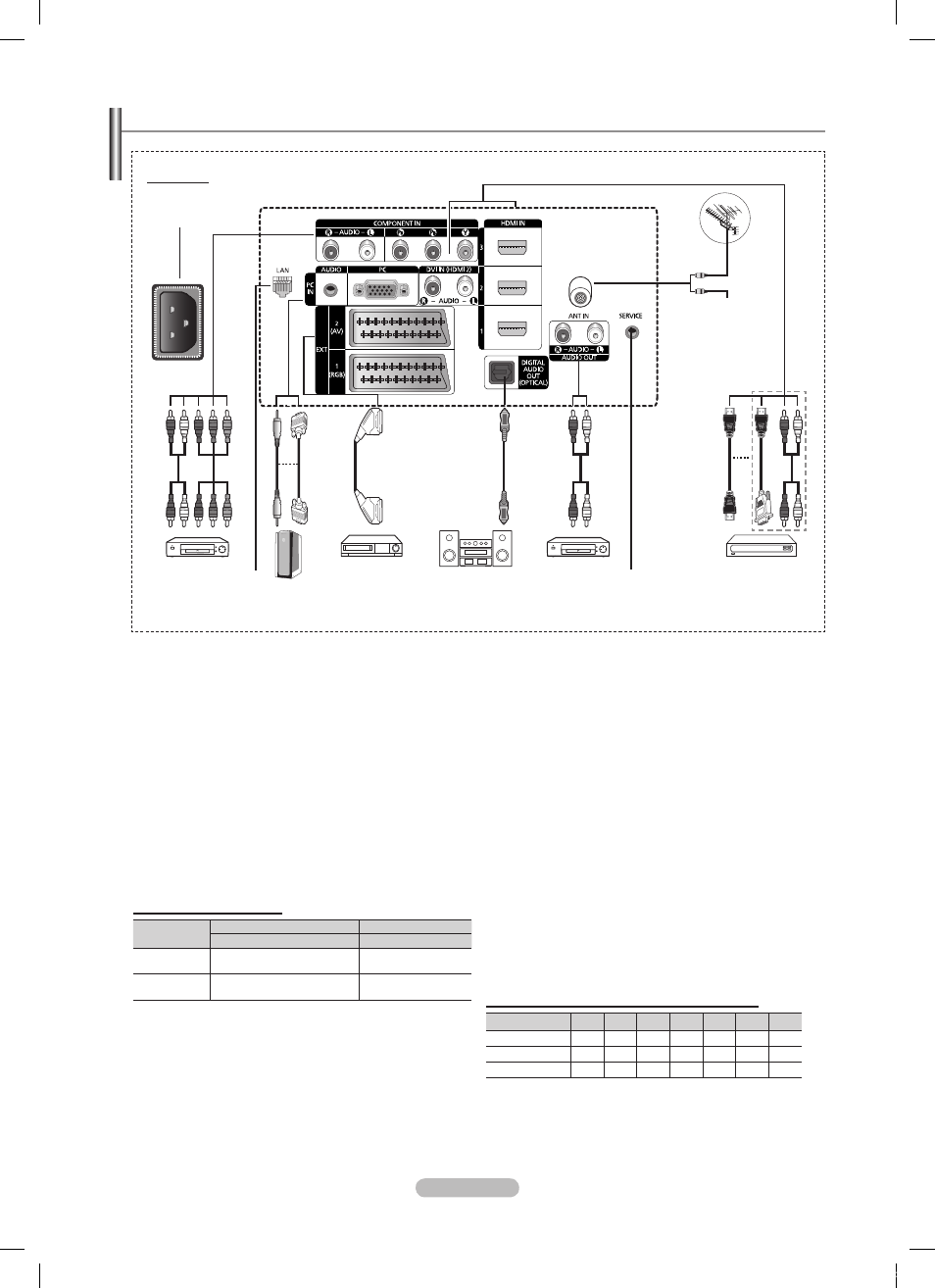

Viewing the Connection Panel

Whenever you connect an audio or video system to your set, ensure that all elements are switched off.

When connecting an external device, match the colour of the connection terminal to the cable.

N
N

Rear Panel

Cable Television

Network

or

or

or

1

5

7

9

6

0

8

3

4

The product colour and shape may vary depending on the model.

N

1

POWER IN

Connect the supplied power cord.

2

COMPONENT IN

Audio (AUDIO L/R) and video (Y/P

B

/P

R

) inputs for

Component.

3

LAN

Connect a LAN cable to this port to connect to the Network.

4

PC IN(PC) / AUDIO

Connect to the video and audio output jack on your PC.

5

EXT 1, EXT

Inputs or outputs for external devices, such as VCR, DVD,

video game device or video disc players.

Input/Output Specification

Connector

Input

Output

Video Audio(L/R) RGB

Video + Audio(L/R)

EXT 1

Only TV or DTV output is

available.

EXT 2

Output you can choose.

6

DIGITAL AUDIO OUT (OPTICAL)

Connect to a Digital Audio Component.

7

AUDIO OUT(AUDIO R/L)

Connect RCA audio signals from the TV to an external

source, such as Audio equipment.

8

SERVICE

Connector for service.

9

HDMI IN 1, , 3

- No additional Audio connection is needed for an HDMI to

HDMI connection.

- When using an HDMI/DVI cable connection, you must

use the HDMI IN 2 jack.

What is HDMI?

-

High Definition Multimedia interface allows the

transmission of high definition digital video data and

multiple channels of digital audio.

- The HDMI/DVI terminal supports DVI connection to

an extended device with the appropriate cable (not

supplied). The difference between HDMI and DVI is

that the HDMI device is smaller in size, has the HDCP

(High Bandwidth Digital Copy Protection) coding feature

installed, and supports multi - channel digital audio.

DVI IN(HDMI) AUDIO L/R

DVI audio outputs for external devices.

0

ANT IN

75Ω Coaxial connector for Aerial/Cable Network.
