English - 6

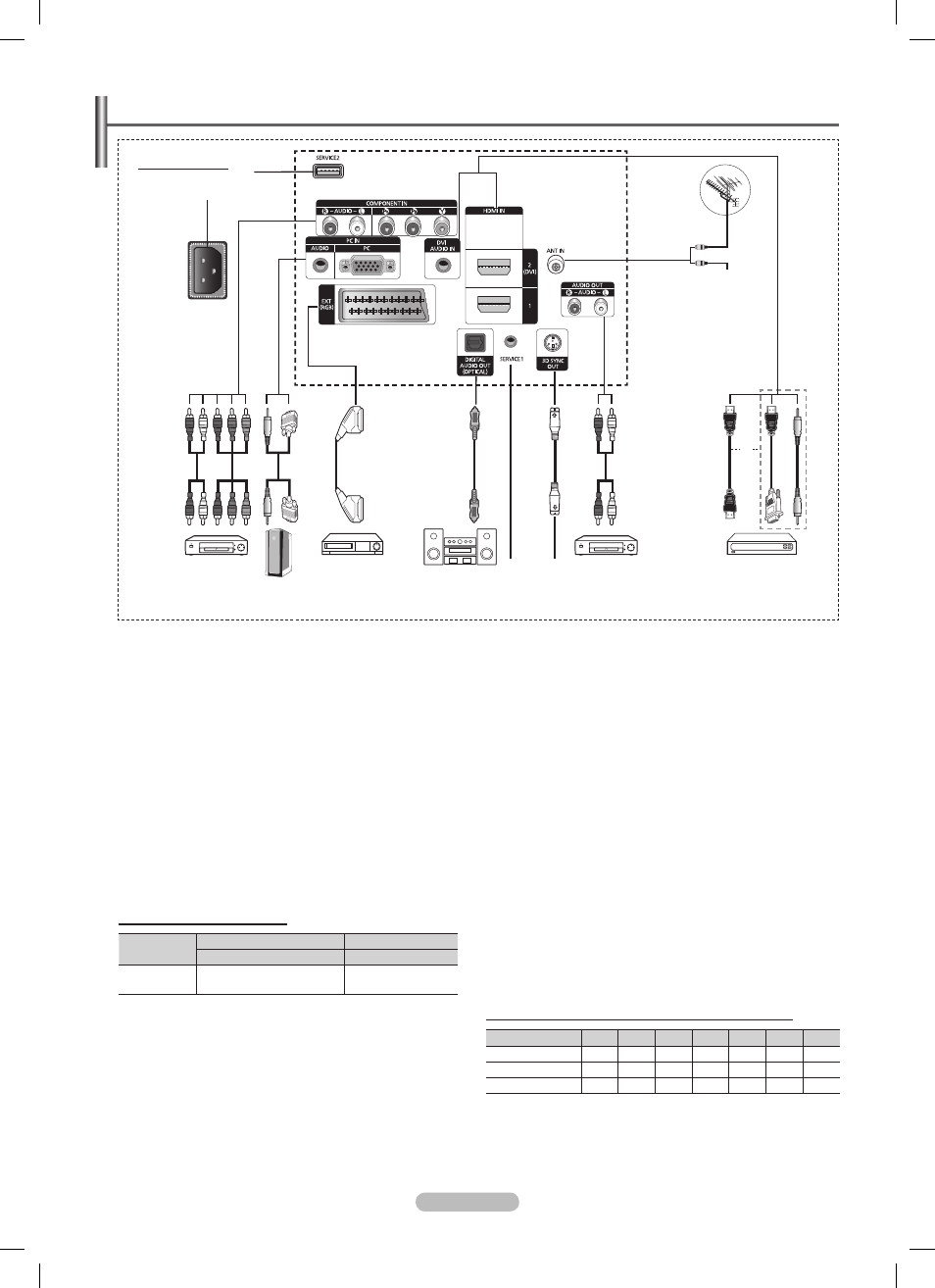

Viewing the Connection Panel

Whenever you connect an audio or video system to your set, ensure that all elements are switched off.

N

When connecting an external device, match the colour of the connection terminal to the cable.

N

The product colour and shape may vary depending on the model.

N

1

SERVICE1, 2

Connector for service.

2

POWER IN

Connect the supplied power cord.

3

COMPONENT IN

Audio (AUDIO L/R) and video (Y / P

B

/ P

R

) inputs for

Component.

4

PC IN(PC) / (AUDIO)

Connect to the video and audio output jack on your PC.

5

EXT (RGB)

Inputs or outputs for external devices, such as VCR, DVD,

video game device or video disc players.

Input/Output Specification

Connector

Input

Output

Video Audio(L/R) RGB

Video + Audio(L/R)

EXT

Only TV or DTV output

is available.

6

DIGITAL AUDIO OUT (OPTICAL)

Connect to a Digital Audio Component.

7

3D SYNC OUT

Connect to 3D IR Emitter.

8

AUDIO OUT(AUDIO R/L)

Connect RCA audio signals from the TV to an external source,

such as Audio equipment.

9

HDMI IN 1, 2(DVI)

No additional Audio connection is needed for an HDMI to

HDMI connection.

When using an HDMI/DVI cable connection, you must use

-

the HDMI IN 2 (DVI) jack.
What is HDMI?

N

High Definition Multimedia interface

-

allows the

transmission of high definition digital video data and

multiple channels of digital audio.

The HDMI/DVI terminal supports DVI connection to

-

an extended device with the appropriate cable (not

supplied). The difference between HDMI and DVI is

that the HDMI device is smaller in size, has the HDCP

(High Bandwidth Digital Copy Protection) coding feature

installed, and supports multi - channel digital audio.

DVI AUDIO IN

DVI audio outputs for external devices.

0

ANT IN

75Ω Coaxial connector for Aerial/Cable Network.

Supported modes for HDMI/DVI and Component

480i 480p 576i 576p 720p 1080i 1080p

HDMI/DVI 50Hz

X

X

X

O

O

O

O

HDMI/DVI 60Hz

X

O

X

X

O

O

O

Component

O

O

O

O

O

O

O

TV Rear Panel

Cable Television

Network

or

or

2

5

4

3

8

9

6

0

1

1

7
