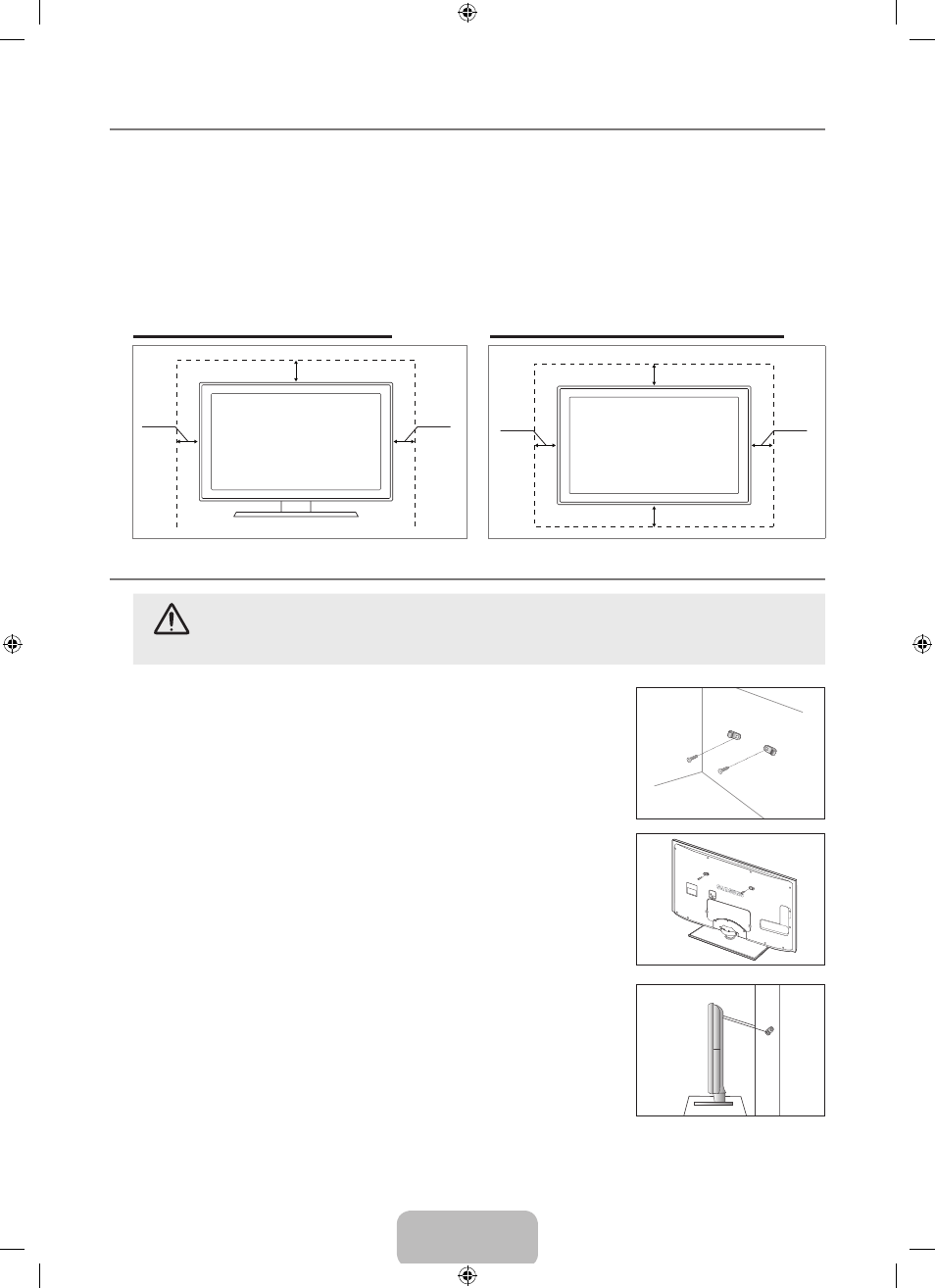

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.
Install the product so the required distances shown in the figure are kept.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the

product falling.
If you use parts provided by another manufacturer, it may result in a problem with the product or fire due to an increase in

the internal temperature of the product due to poor ventilation.

The appearance may differ depending on the product.

When installing the product with a stand

When installing the product with a wall-mount

10 cm

10 cm

10 cm

10 cm

10 cm

10 cm

10 cm

Securing the TV to the Wall

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your

children do not hang over or destabilize the TV; doing so may cause the TV to tip over, causing serious

injuries or death. Follow all safety precautions provided on the included Safety Flyer. For added stability,

install the anti-fall device for safety purposes, as follows.

To avoid the TV from falling:

1. Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the

screws have been firmly installed onto the wall.

You may need additional material such as an anchor depending on the type of

wall.
Since the necessary clamps, screws, and string are not supplied, please

purchase these additionally.

2. Remove the screws from the centre back of the TV, put the screws into the clamps,

and then fasten the screws onto the TV again.

Screws may not be supplied with the product. In this case, please purchase the

screws of the following specifications.
Screw Specifications
For a 17 ~ 29 Inch LED TV: M4 X L15
For a 32 ~ 40 Inch LED TV: M6 X L15
For a 40 ~ 55 inch LED TV : M8 X L30

3. Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong

string and then tie the string tightly.

Install the TV near to the wall so that it does not fall backwards.
It is safe to connect the string so that the clamps fixed on the wall are equal to or

lower than the clamps fixed on the TV.
Untie the string before moving the TV.

4. Verify all connections are properly secured. Periodically check connections for any

sign of fatigue for failure. If you have any doubt about the security of your connections,

contact a professional installer.

¦

N

N

¦

N

N

N

N

•
•
•

N
N

N

Wall

Wall
