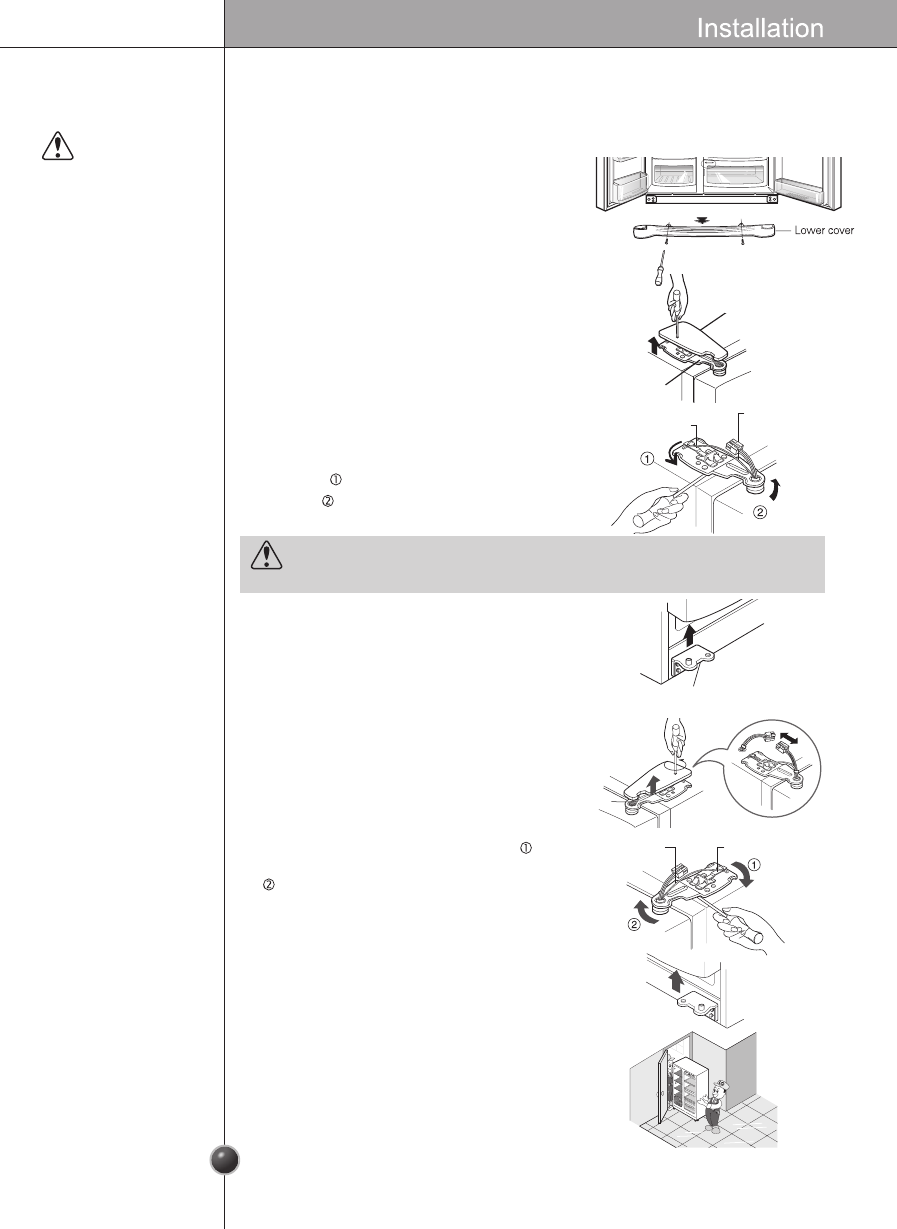

Door removal
Remove the lower cover by lifting upward.
Pass the refrigerator laterally through access
door as shown in the right figure.
Remove lower
cover
Remove the
freezer
compartment
door
Remove the
refrigerator
door
Pass the
refrigerator
1) Loosen the hinge cover screws and remove
the cover.
2) Remove the keeper by rotating it to counter
clockwise ( ) and then lifting the upper
hinge up ( ).
3) Remove the freezer compartment door by
lifting it upward.
1) Loosen the hinge cover screws and remove
the cover. Removeconnection wire if any,
except for the earth line.
2) Remove keeper by rotating it clockwise ( )
and then remove upper hinge by lifting it up
( ).
3) Remove refrigerator compartment door by
lifting up.
•
When removing the upper hinge, be careful that the door does not fall forwards.
Lower hinge
Keeper
Connection
wires
Hinge
cover
Upper hinge
Upper hinge
Keeper
Upper
hinge
Failure to do so could result in death
or serious injury.
If your access door is too narrow for the
refrigerator remove the refrigerator door and
pass the refrigerator laterally.
Electric Shock Hazard
Disconnect electrical supply to refrigerator before
installing.
