34
Assembling and Maintaining the UBK 615 Upright Exercise Bike
4. Route the flat, black base unit data cable to the left of the
mounting bracket and about three-quarters of the way up
the left side of the console, as shown in the following
figure. Attach the base unit data cable to the
eight-conductor modular jack labeled LOWER BOARD
CONNECTION.

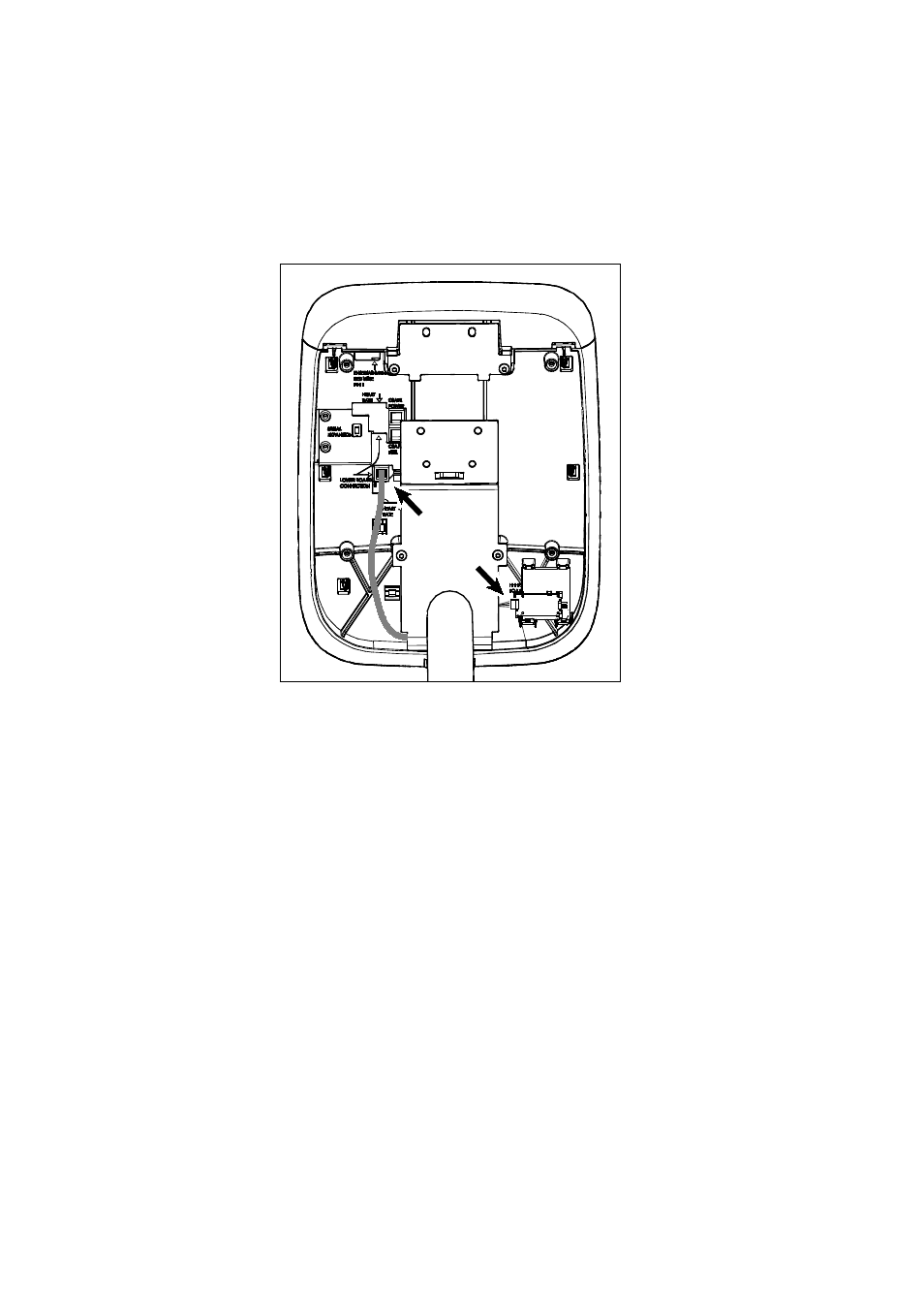

Figure 15: Routing the data and heart rate cables
5. Attach the twisted, red-and-black heart rate sensor cable
to the four-pin connector on the heart rate circuit board at
the lower right corner of the console.
Note: The connectors can fit together in only one way.
There may also be a 10-pin connector labeled HEART
RATE on the console, but it is not compatible with this
equipment.
Important: If you are installing a Cardio Theater screen or
receiver, complete the Cardio Theater installation before you
reattach the console’s rear cover.
6. Insert four ¹₄-inch x ³₄-inch buttonhead screws through
the screw holes in the tabs on the mounting bracket and
into the screw anchors on the console. Tighten the screws
completely using a ⁵₃₂-inch hex wrench.
