30
Assembling and Maintaining the UBK 615 Upright Exercise Bike
3. Seat the handlebars on the upright support as shown in
the following figure, storing extra cable in the upright
support as needed.

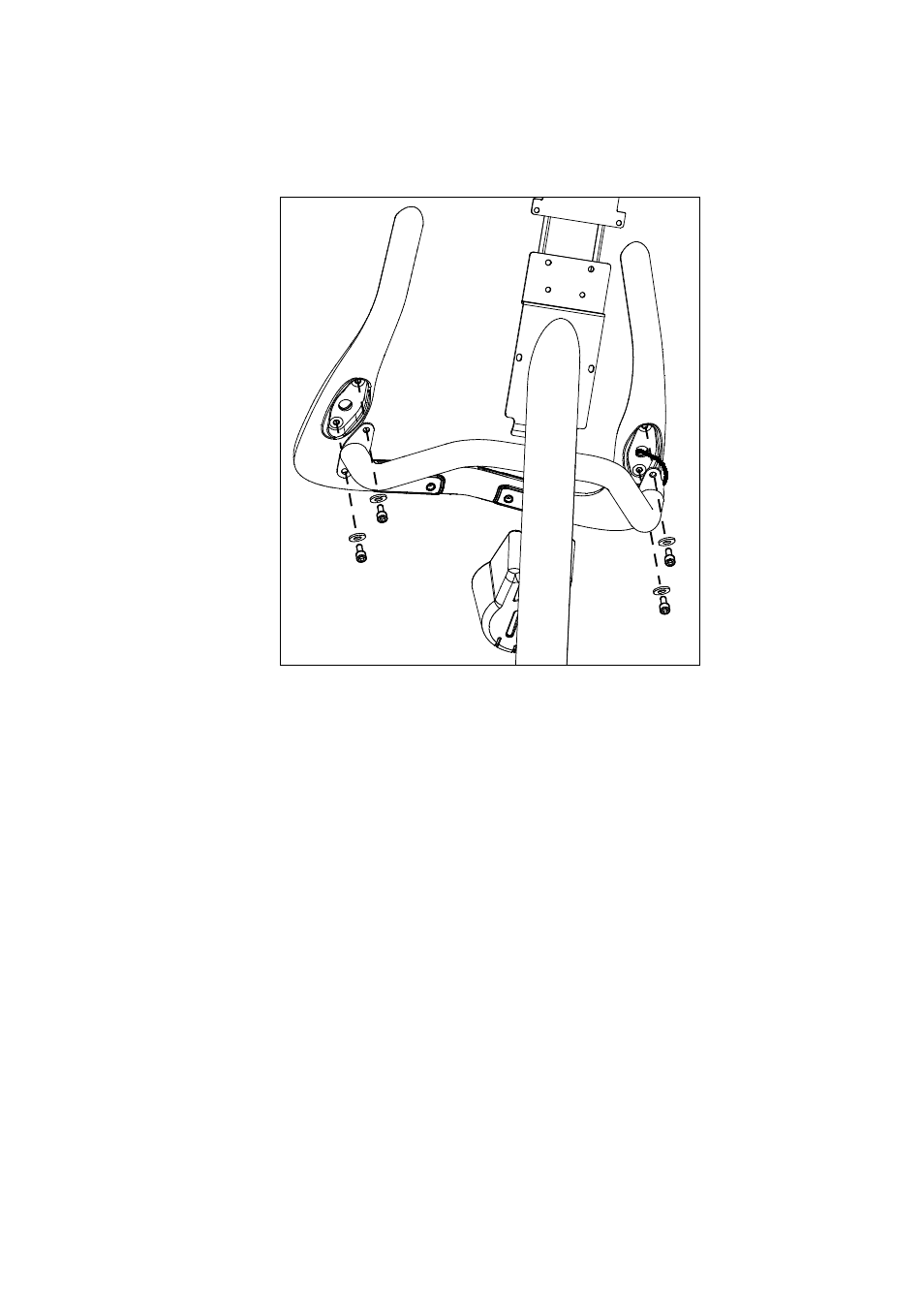

Figure 12: Handlebar installation
4. Place four 8.1 mm flat black washers onto four M8 x 25
mm sockethead screws. Place the handlebar assembly
onto the brackets and attach the four sockethead screws
with their washers. Tighten the screws completely using a
6 mm hex wrench.
