Video output cable types

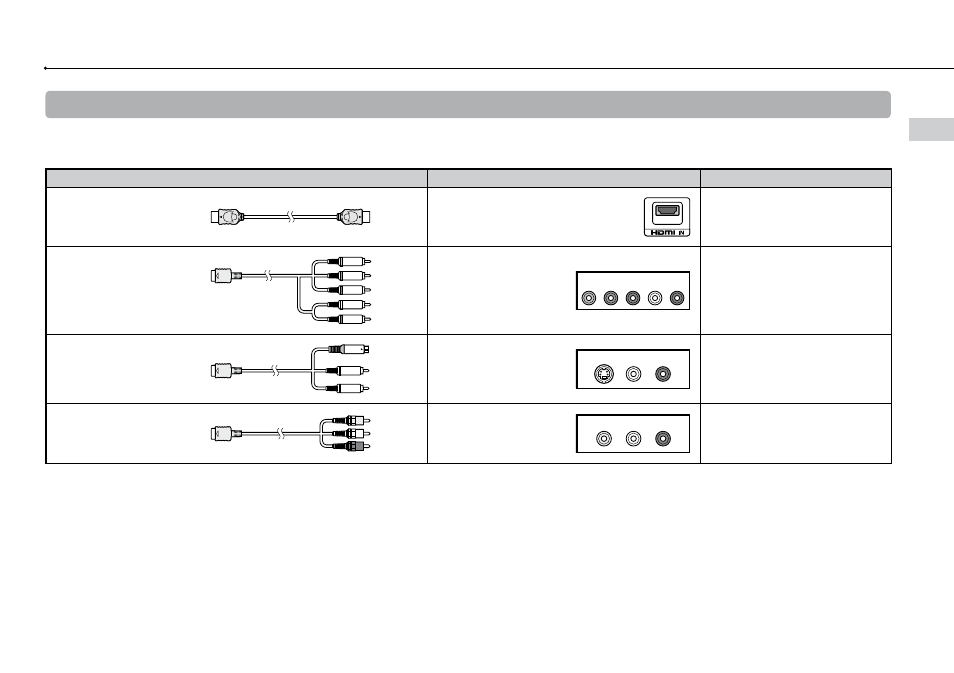

The resolution displayed on the TV varies depending on the input connectors on the TV and the type of cable in use. Select a cable to match the TV
in use.

Cable type

Input connector on the TV

Supported video modes*¹

HDMI Cable*²
(sold separately)

HDMI IN connector

1080p / 1080i / 720p / 576p

Component AV Cable*

4

(sold separately)

Component VIDEO IN
connector

Y

L

R

P

R

/C

R

P

B

/C

B

COMPONENT VIDEO IN

AUDIO IN

1080p / 1080i / 720p / 576p / 576i*

3

S VIDEO Cable
(sold separately)

S VIDEO IN connector

S VIDEO

L-AUDIO-R

576i*

3

AV Cable
(supplied)

VIDEO IN connector
(composite)

VIDEO

L-AUDIO-R

576i*

3

*

1

Depending on the type of TV or content to be played, some video modes may not be supported.

*

2

Connect the system to the TV using an HDMI cable (sold separately). An HDMI cable can output both video and audio and enables you to enjoy digital-quality

video and audio.

*

3

The video output setting on the system will display as [Standard (PAL)].

*

4

When the PS3™ system is connected to a TV using a component AV cable, analogue high-definition output is restricted to comply with the copyright protection

technology used by Blu-ray (AACS). BD video software (BD-ROM) and BDs recorded with copyright-protected video content are output at interlaced standard

definition (SD) resolution.
