To transfer pictures recorded on the “Memory
Stick” with your Handycam to a PC, the software
must be installed, and the MSAC-SR1 must be
connected to the PC beforehand.
For details about software installation, refer to the
operating instructions supplied with the
“PictureGear 3.2Lite” software.
Connecting to the PC

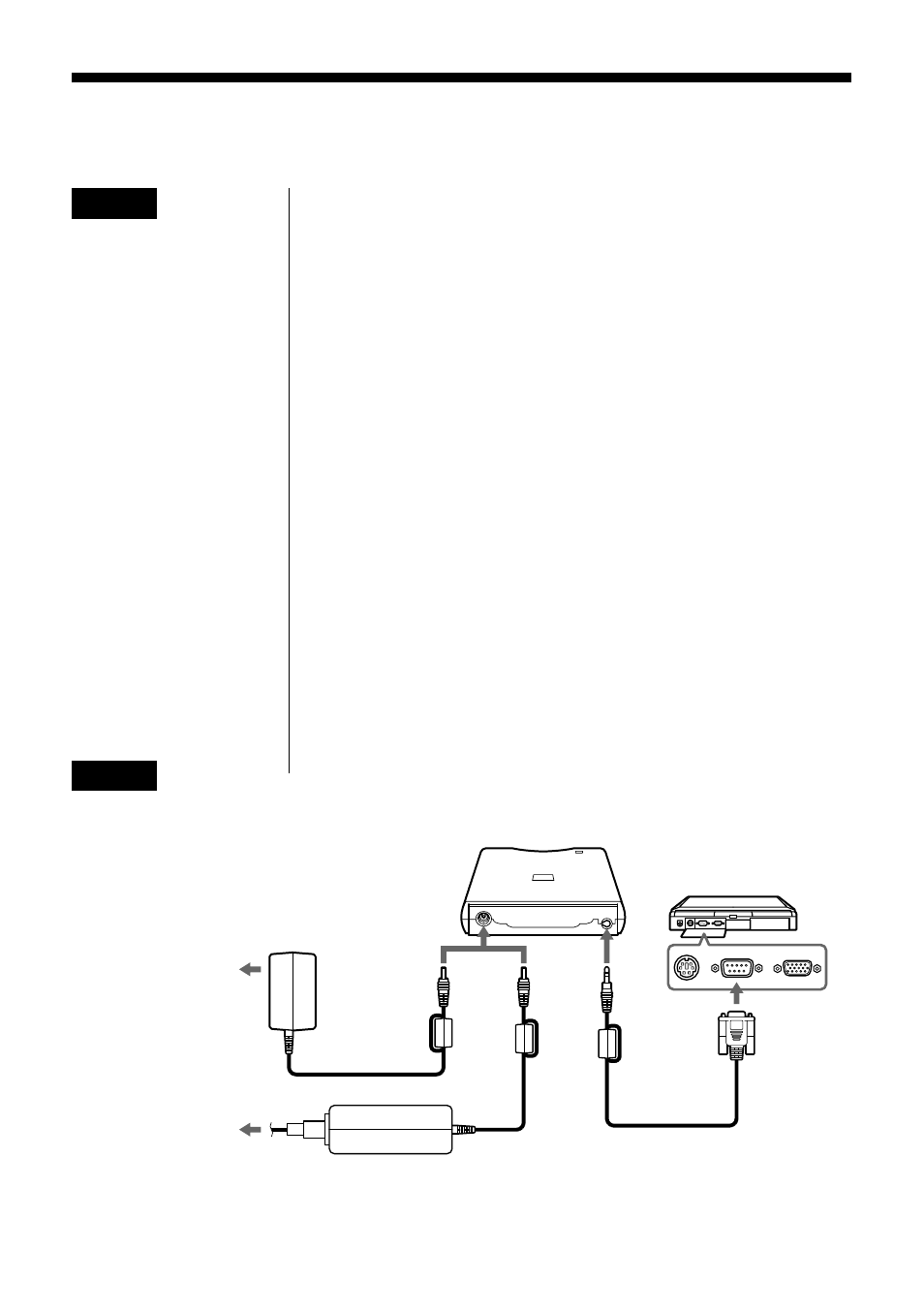

Connect the MSAC-SR1 to the PC as follows.
(1) Connect the cable.
Connect the DIGITAL IN/OUT jack on the
MSAC-SR1 to the serial port of the PC using the
supplied serial cable.
(2) Connect the AC power adaptor.
Insert the AC power adaptor connector into the
DC jack on the MSAC-SR1 and plug the AC
power adaptor into an AC outlet.
Connections
Note
Ensure the shape of
serial port
connector.
Serial cable
Rear of the
MSAC-SR1
DC IN jack
To an AC
outlet
AC power adaptor
AC-PW1
DIGITAL
IN/OUT jack
PC
To the
serial
port
Note
A socket outlet
should be as close as
possible to the unit
and easily
accessible.
AC power adaptor
AC-PT1
or
To an AC
outlet
