3
1. Instruction for the User
HOB BURNERS CONTROL KNOBS
The hob burners control knobs are situated on the hob
front panel. The symbols on the knobs mean that :
z there is no gas supply
there is maximum gas supply
there is minimum gas supply
LIGHTING THE BURNERS
• For easier lighting, proceed before putting a pan
on the pan support.
Burner minimum maximum
diameter diameter
Big (rapid) 180 mm. 240 mm.
Small (Auxiliary) 80 mm. 160 mm.

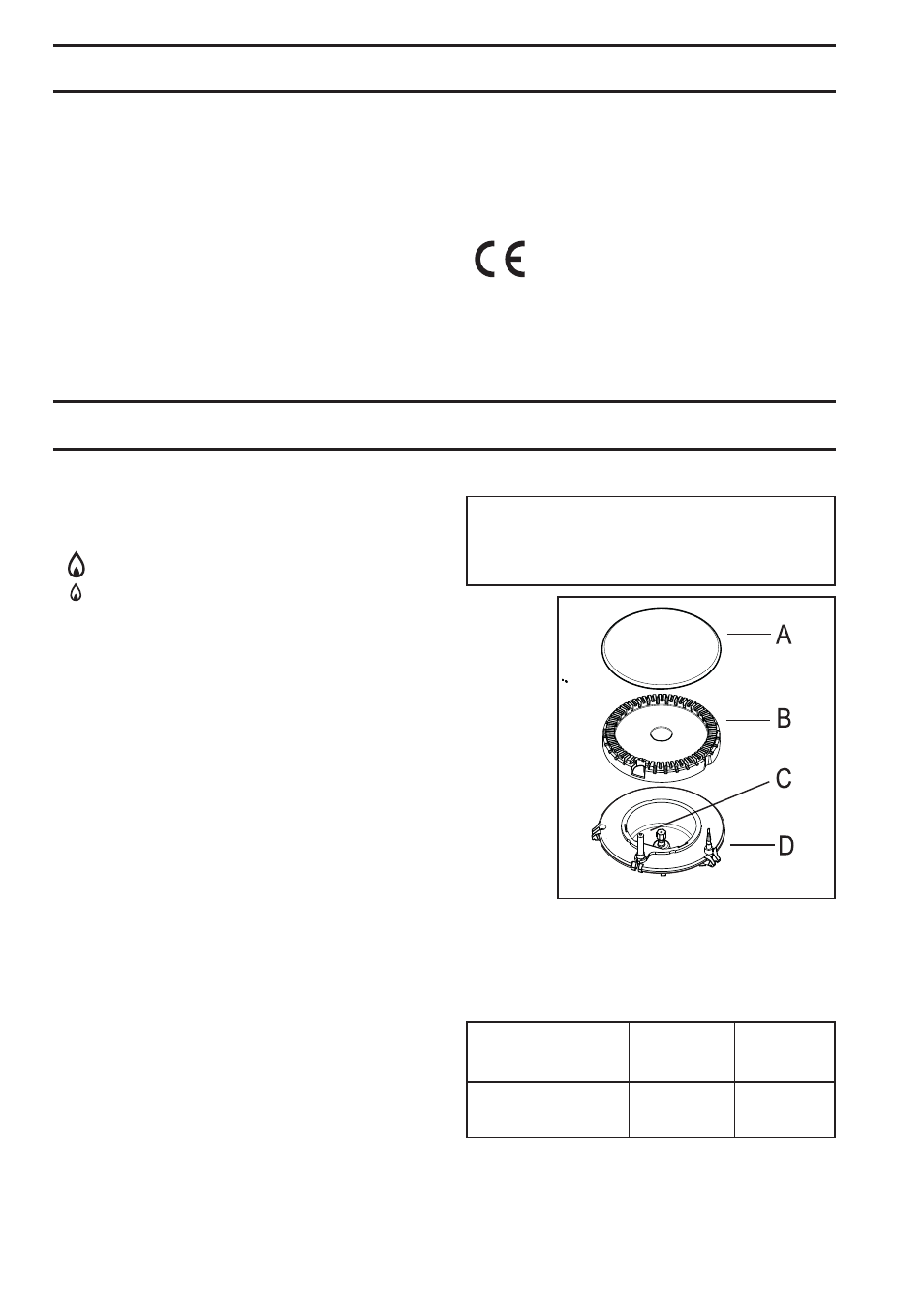

Fig. 1
Contents
1. Instruction for the User ................... Pag. 3
2. Cleaning and Maintenance ............. Pag. 4
3. Technical Data .................................. Pag. 4
4. Instruction for the Installer ............. Pag. 5
5. Electrical Connection ..................... Pag. 6
6. Adaptation to different
types of gas ...................................... Pag. 7
7. Building In ........................................ Pag. 8
Table of minimum and maximum diameters of pots
which can be placed on the burners
This appliance complies with the following
E.E.C. Directives:
- 2006/95 (Low Voltage Directive);
- 89/336 (Electromagnetical Compatibility Directive);
- 90/396 (Gas Appliances)
- 93/68 (General Directives)
and subsequent modifications.
MANUFACTURER:
ELECTROLUX HOME PRODUCTS ITALY S.p.A.
Viale Bologna 298 - 47100 FORLI’ (Italy)
FO 0204
A - Burner cap
B - Burner crown
C - Ignition candle
D - Thermocouple
Push the electric ignition push botton which is marked by a
little spark.
At the same time, turn the relevant controlo knob anticlockwise
to maximum position and keep it pushed down for about 5
seconds.
This will allow the "thermocouple" (Fig. 1 lett. D)
to be heated and the safety device to be switched off,
otherwise the gas supply would be interrupted.
Then, check the flame is regular and adjust it as
required.
If you cannot light the flame even after several
attempts, check the "cap" (Fig. 1 lett. A) and the
"crown" (Fig. 1 lett. B) are in the correct position.
To put the flame out, turn the knob to the symbol
z.
• Always turn the flame down or put it out before
taking the pans off the burner.
USING THE HOB CORRECTLY
To ensure maximum burner efficiency, it is strongly
recommended that you use only pots and pans with a
bottom fitting the size of the burner used, so that flame will
not spread beyond the bottom of the vessel (see the table
beside).
It is also advisable, as soon as a liquid starts boiling, to
turn down the flame so that it will barely keep the liquid
simmering.
• Use only pans or pots with flat bottom.
Carefully supervise cookings with fats or oil, since
these types of foodstuff can result in a fire, if over-
heated.
