6

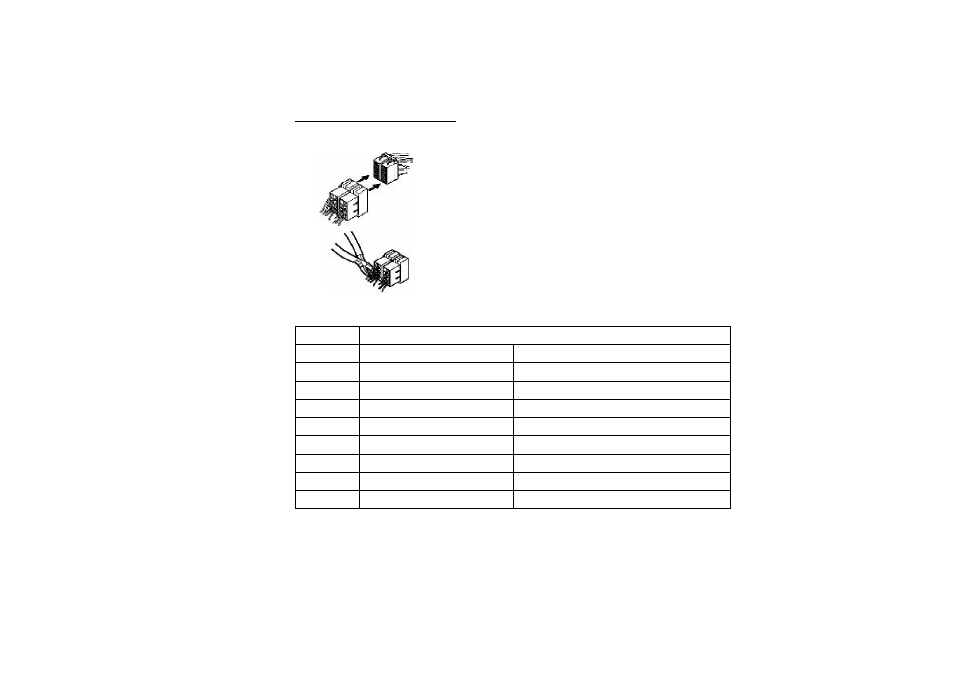

Using the ISO Connector
1. If your car is equipped with the ISO connector, then connect the ISO
connectors as illustrated.
2. For connections without the ISO connectors, check the wiring in the
vehicle carefully before connecting, incorrect connection may cause serious
damage to this unit.
Cut the connector, connect the colored leads of the power cord to the car
battery as shown in the color code table below for speaker and power cable
connections.
Location Function
Connector A Connector B
1 Rear Right(+)---Violet
2 Rear Right(-)---Violet/Black stripe
3 Front Right(+)---Grey
4 Battery 12V (+)/yellow Front Right(-)---Grey/Black Stripe
5 Auto Antenna/blue Front Left(+)---White
6 Front Left((-)---White/Black Stripe
7 ACC+/red Rear Left(+)---Green
8 Ground/black Rear Left(-)---Green/Black Stripe
