8
Caution: Do not interchange the connection of the wiring!!!
For some car models you may need to modify wiring of the supplied power cord. Contact your authorized car
dealer before installing this unit.

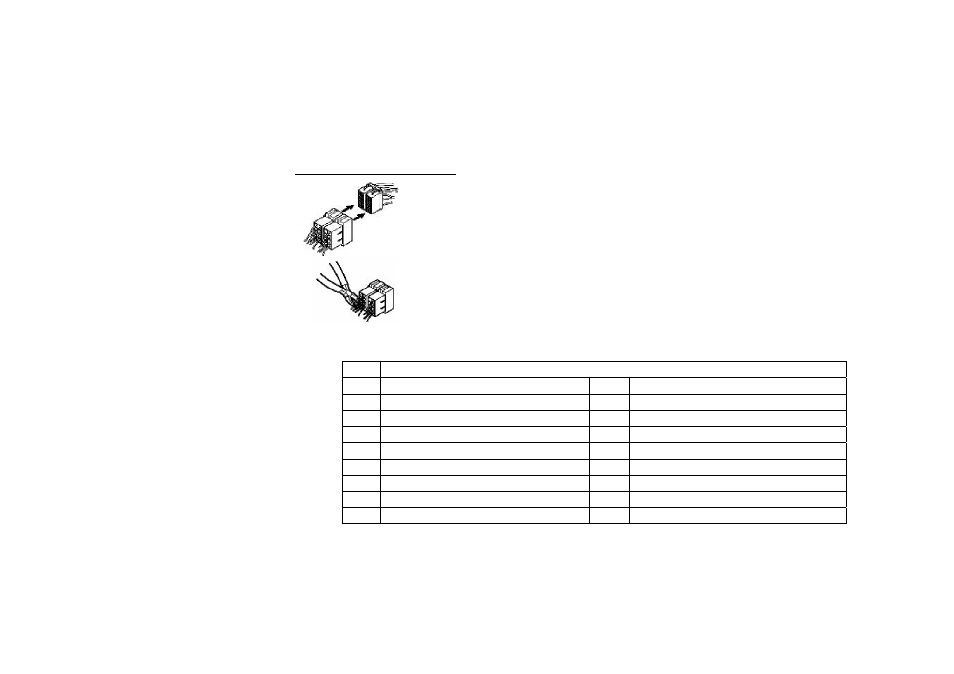

Using the ISO Connector
1. If your car is equipped with the ISO connector, then connect the ISO connectors
as illustrated.
2. For connections without the ISO connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection may cause serious damage to this
unit.
3. Cut the connector, connect the colored leads of the power cord to the car battery
as shown in the color code table below for speaker and power cable connections.
Function
№ Connector A № Connector B
1 7 Rear Right(+)---Violet
2 8 Rear Right(-)---Violet /Black Stripe
3 9 Front Right(+)---Gray
4 Battery 12V (+)/yellow 10 Front Right(-)---Gray/Black Stripe
5 Auto Antenna/blue 11 Front Left(+)---White
6 12 Front Left((-)---White/Black Stripe
7 ACC+/red 13 Rear Left(+)---Green
8 Ground/black 14 Rear Left(-)---Green/Black Stripe
