Installation/ connection
Din front-mount (method 1)
• After inserting the holder into the dashboard, select the
appropriate tab and bend them inwards to secure the holder in
place.
• Insert fingers into the groove in the front of frame and remove it.
• Insert the levers supplied with the unit to the grooves at both
sides. The unit can be installed or removed from the dashboard.

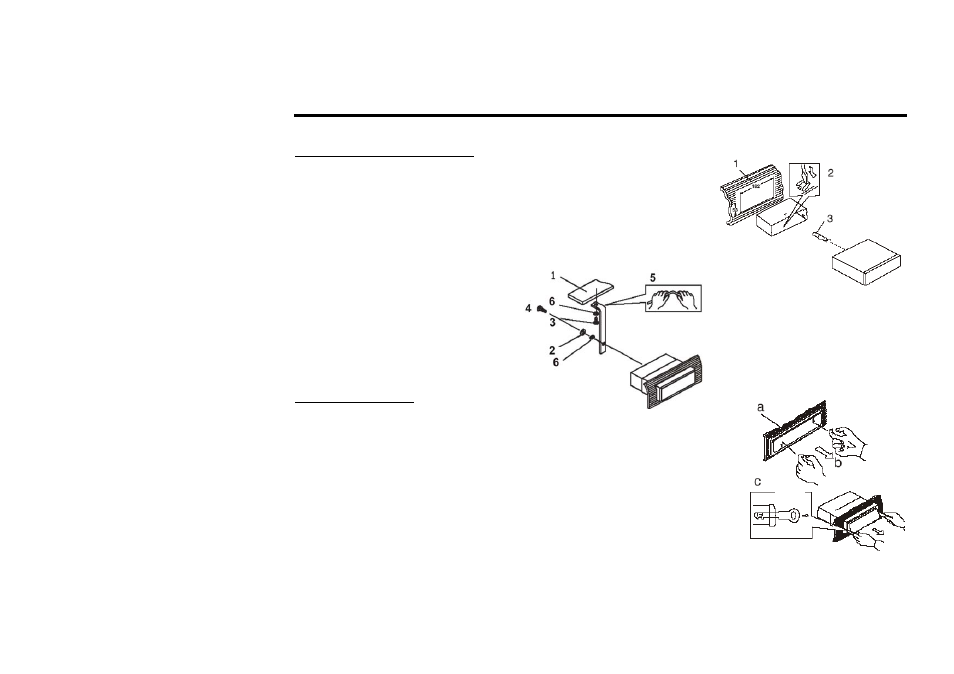

1. Dashboard
2. Spring washer
3. Screw (5 x 25mm)
4. Screw
5. Strap
6. Plain washer
Removing the unit
• Insert fingers into the groove in the front of frame and pull out to remove
the frame.
(When reattaching the frame, point the side with a groove down wards
and attach it.)
•
Insert the levers supplied with the unit into the grooves at both sides of
the unit as shown in figure until they click. Pulling the levers makes it
possible to remove the unit from the dashboard.
frame
lever
