10

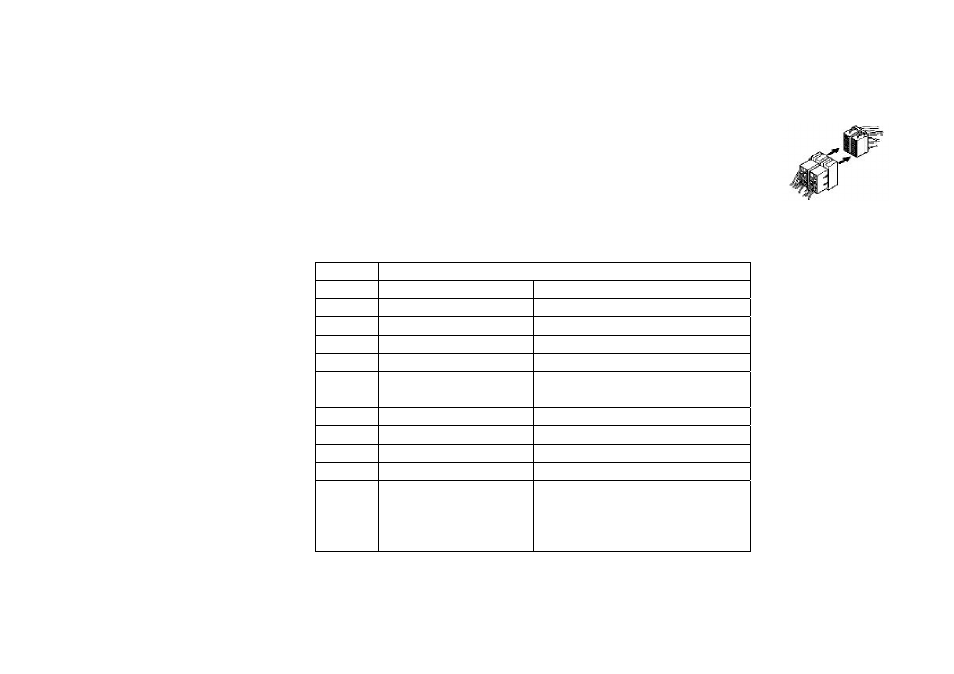

Using the ISO Connector
1. If your car is equipped with the ISO connector, then connect the ISO connectors as
illustrated.
2. For connections without the ISO connectors, check the wiring in the vehicle carefully
before connecting, incorrect connection may cause serious damage to this unit.
2. Cut the connector, connect the colored leads of the power cord to the car battery as
shown in the color code table below for speaker and power cable connections.
Location Function
Connector A Connector B
1 Rear Right(+)---Purple
2 Reverse cable Rear Right(-)---Purple/Black Stripe
3 Front Right(+)---Grey
4 Power Front Right(-)---Grey/Black Stripe
5 Power amp. or Auto
antenna
Front Left(+)---White
6 Front Left((-)---White/Black Stripe
7 Ignition (12V DC) Rear Left(+)---Green
8 Ground/black Rear Left(-)---Green/Black Stripe
