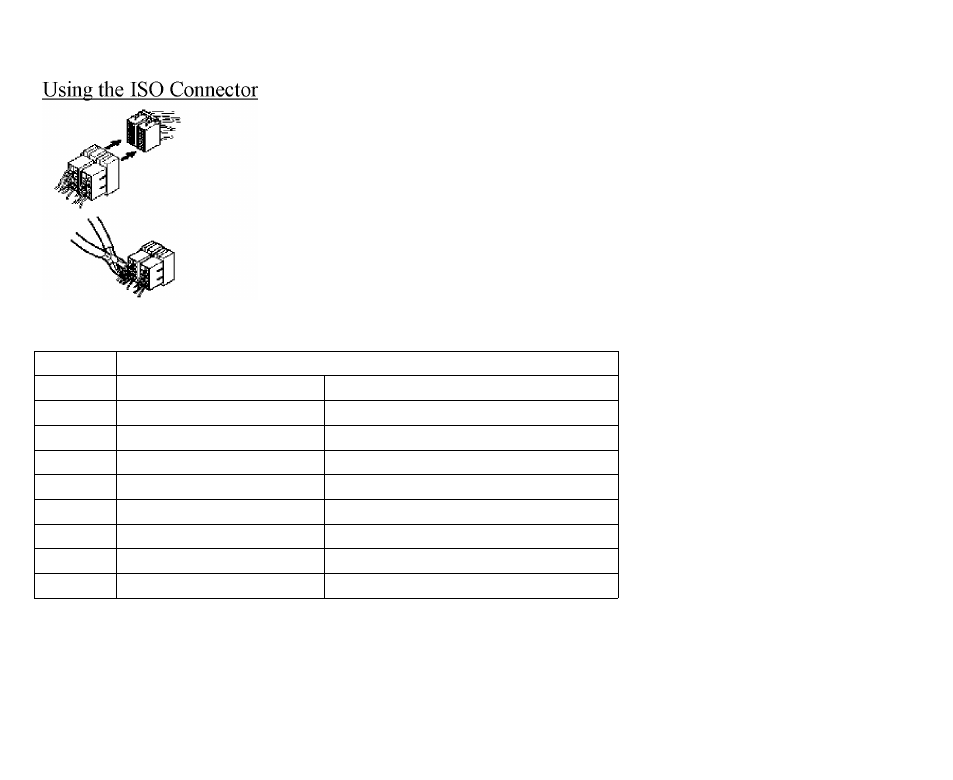

1. If your car is equipped with the ISO connector, then connect the ISO
connectors as illustrated.
2. For connections without the ISO connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection may cause serious damage to
this unit.
Cut the connector, connect the colored leads of the power cord to the car battery
as shown in the colour code table below for speaker and power cable
connections.
Location FUNCTION
Connector A Connector B
1 Rear Right(+)—Blue
2 Rear Right(-)---Blue/White Stripe
3 Front Right(+)—Grey
4 Battery 12V (+)/yellow Front Right(-)---Grey/White Stripe
5 Auto Antenna/Orange Front Left(+)---Green
6 Front Left((-)—Green/White Stripe
7 ACC+/red Rear Left(+)—Brown
8 Ground/black Rear Left(-)—Brown/White Stripe
