NOTE: Outer trim frame, hook, and mounting sleeve are not used for this
installation.
This is only intended as a general guide; contact the vehicle's manufacturer
for specific instructions.

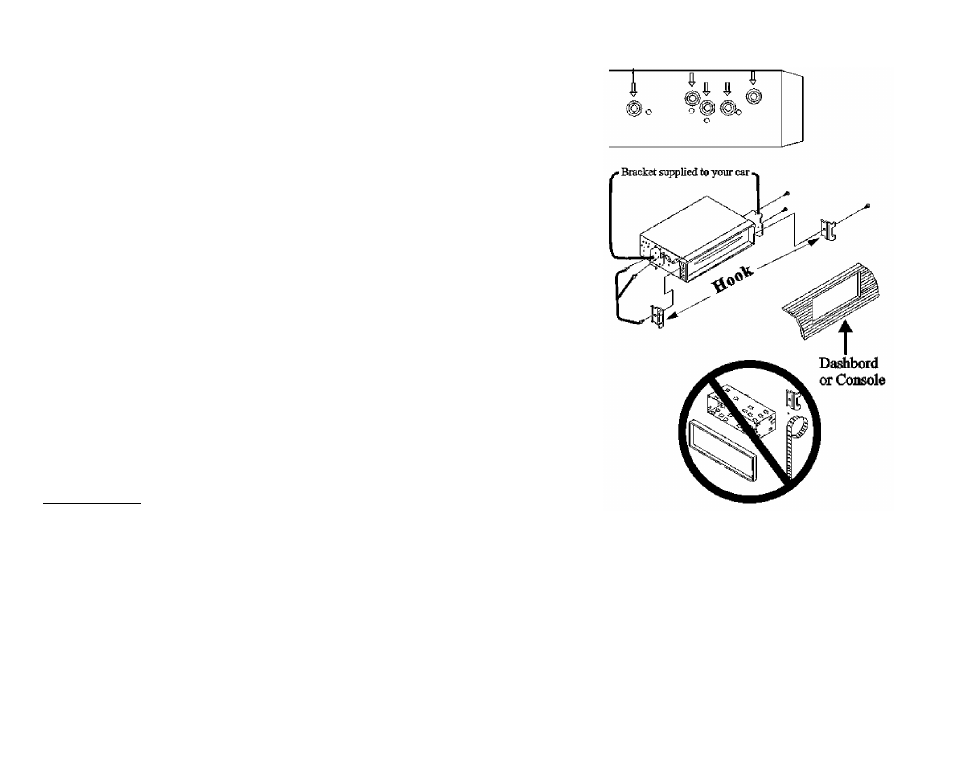

This method of installation uses the screw holes at the sides of the unit and
the holes of the existing vehicle mounting bracket.
1. Remove the hooks on both sides.
2. Align the screw holes of the mounting bracket supplied with the car and
the screw holes of the main unit. Tighten the 2 screws on each side of the
unit. Then fasten the brackets to the car.
3. Attach wires of the unit to existing speaker wires. See wiring diagram.
Electrical connections
Speaker Wiring Notes
Follow the above wiring diagram to install the head unit with new or existing speakers.
• This unit is designed for use with four (4) speakers with an impedance between 4 Ohms to 8 Ohms.
• An impedance load of less than 4 Ohms could damage the unit.
• Never bridge or combine the speaker wire outputs. When not using four speakers, use electrical tape to tape the
ends of the unused speaker outputs to prevent a short circuit.
• Never ground the negative speaker terminals to chassis ground.
