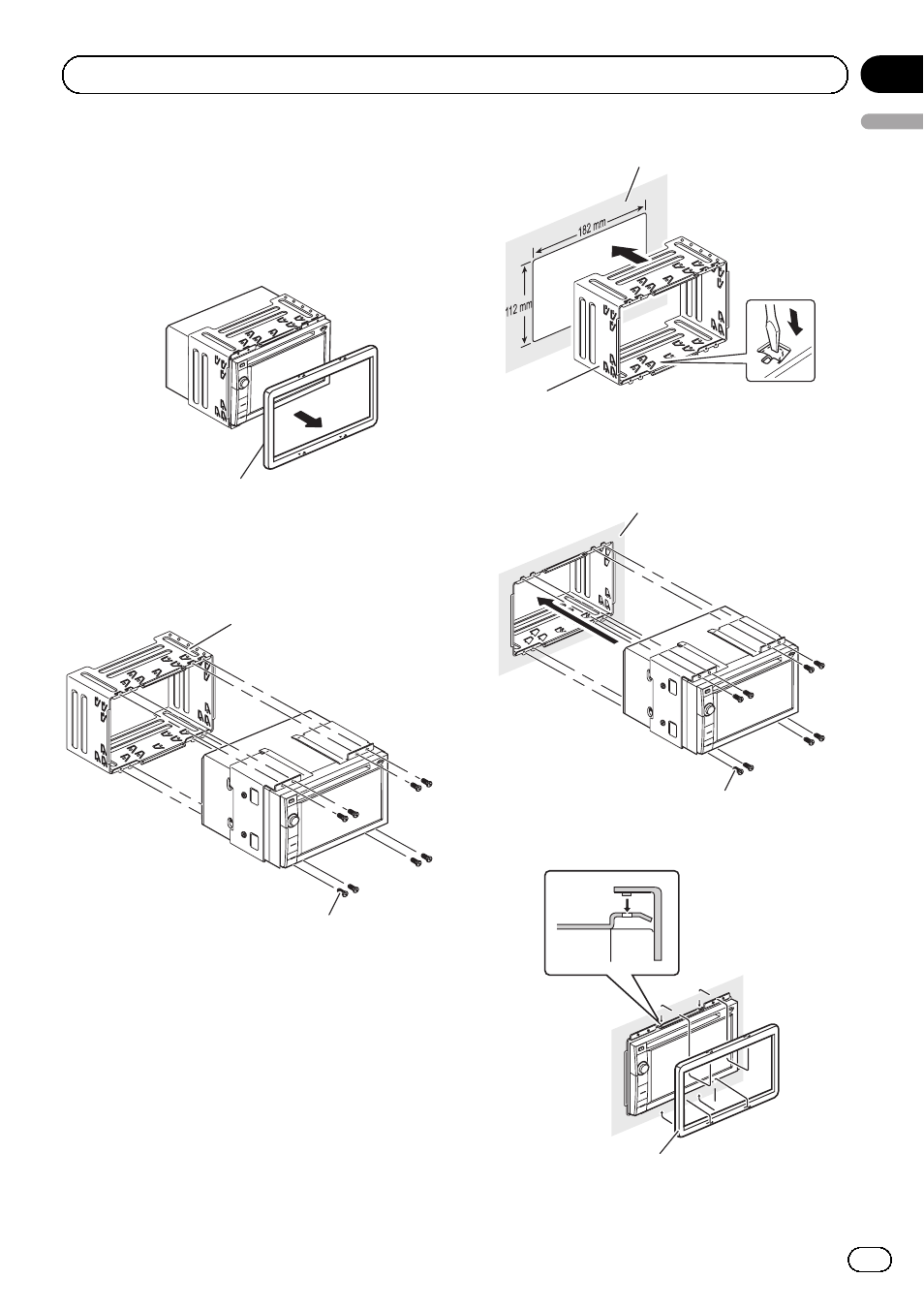

Before installing this
navigation unit
1 Remove the trim ring.
Extend top and bottom of the trim ring out-
wards to remove the trim ring.
Trim ring
2 Remove the holder.
Loosen the screws (3 mm × 6 mm) to remove
the holder.
Holder
Screw (3 mm × 6 mm)
Installation with the holder
and side bracket
1 Install the holder into the dashboard.
After inserting the holder into the dashboard,
select and bend the tabs appropriate to the
thickness of the dashboard material. (Install
this navigation unit as firmly as possible using
the top and bottom tabs. To secure this naviga-
tion unit, bend the tabs 90 degrees.)
Dashboard
Holder
2 Install this navigation unit and fasten
the screws.
Dashboard
Screw (3 mm × 6 mm)
3 Attach the trim ring.
Trim ring
Engb
23
English
Section
03 Installation
