Installing the navigation
system
Installation notes
! Do not install the navigation system in
places subject to high temperatures or hu-
midity, such as:
— Places close to a heater, vent or air con-
ditioner.
— Places exposed to direct sunlight, such
as on top of the dashboard.
— Places that may be exposed to rain,
such as close to the door or on the vehi-
cle
’s floor.
! Install this navigation system in an area
strong enough to bear its weight. Choose a
position where this navigation system can
be firmly installed, and install it securely. If
this navigation system is not securely in-
stalled, the current location of the vehicle
cannot be displayed correctly.

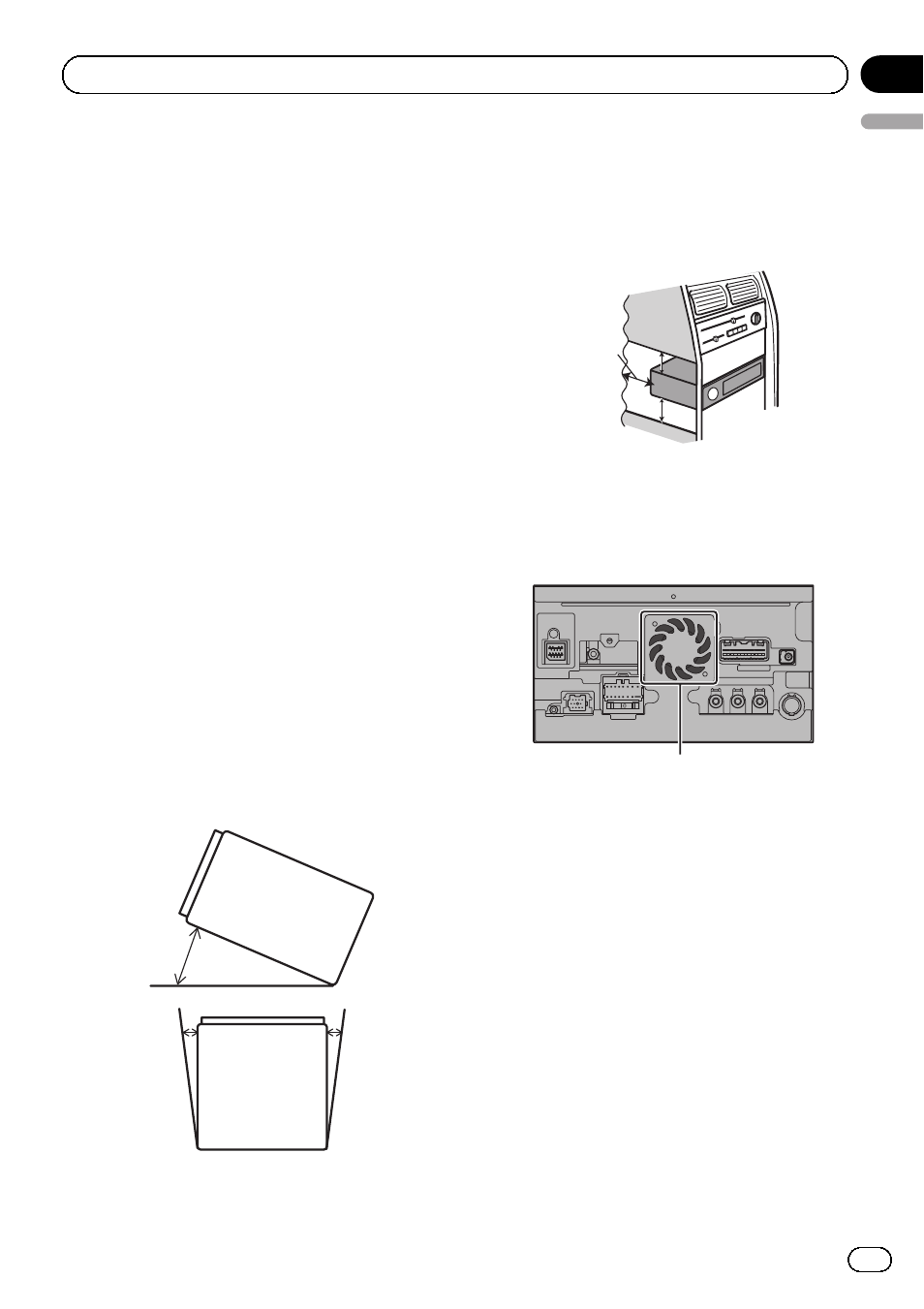

! Install the navigation unit horizontally on a
surface within 0 to 30 degrees tolerance
(within 5 degrees to the left or right). Impro-
per installation of the unit with the surface
tilted more than these tolerances increases
the potential for errors in the vehicle's loca-
tion display, and might otherwise cause re-
duced display performance.
30°
5° 5°
! When installing, to ensure proper heat dis-
persal when using this unit, make sure you
leave ample space behind the rear panel
and wrap any loose cables so they are not
blocking the vents.
Leave ample
space
5 cm
5 cm
! The cords must not cover the area shown
in the figure below. This is necessary to
allow the amps and navigation mechanism
to dissipate heat.
Do not cover this area.
! The semiconductor laser will be damaged
if it overheats, so don
’t install the naviga-
tion unit anywhere hot
— for instance, near
a heater outlet.
Engb
21
English
Section
03 Installation
