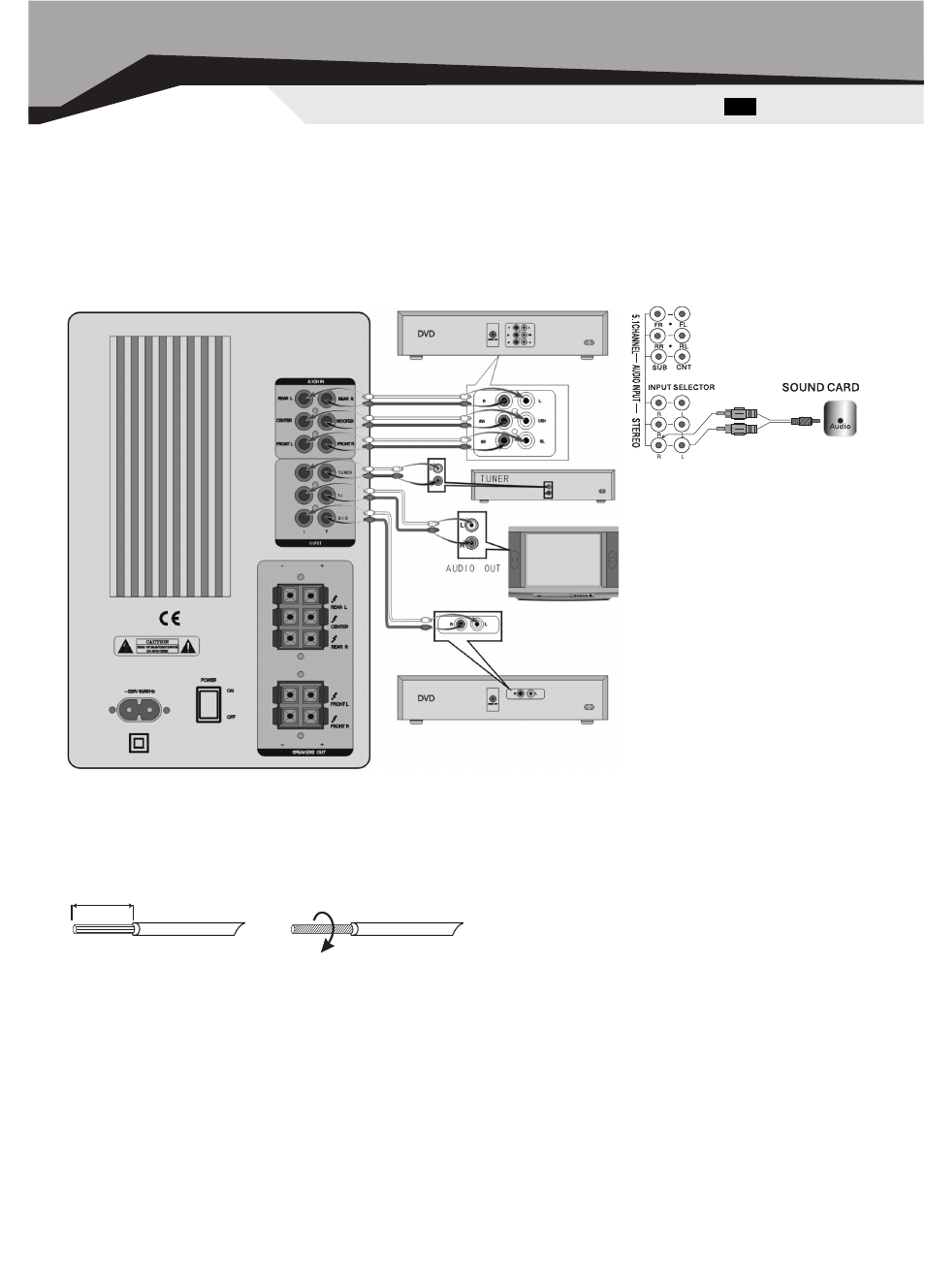

6. THE SYSTEM CONNECTION INSTRUCTION
WARNING!!! All components should be switched off before connection.
6.1 CONNECTION WITH THE SOUND SOURCE.
While connecting with sound source, use the RCA pin type connecting line.
Please connect correctly the marked “left” jack with other marked “left” plug of other components. Please refer the detailed connec
tion to the following connectivity diagram.
6.2 LOUDSPEAKERS CONNECTION
Don’t shortcircuit acoustics cable ends. Always watch polarity. For better wire contact with clips, strip about 10 mm of insulation and
twist it as shown below on picture 5
Eng
SVEN HT 480
15
Connection with sound card of PC
TUNER
TV
DVD
Fig. 4.
Fig. 5.
