Rear Panel Setting
a
CD Input Jack
Connect sound output of CD player with audio cable.
b
AUX Input Jack
Connect appropriate sound output with audio cable.
c
TV Input Jack
Connect sound output of TV set with audio cable.
d
DVD Input Jack (5.1 audio input connector)
Connect the 5.1 CH sound output with sound cable.
e
Front Right Speaker Output
Connect the sound output of Front Right Speaker with this jack.
f
Front Left Speaker Output
Connect the sound output of Front Left Speaker with this jack.
g
Centre Speaker Output
Connect the sound output of Centre Speaker with this jack.
h
Right Rear Speaker Output
Connect the sound output of Right Rear Speaker with this jack.
i
Left Rear Speaker Output
Connect the sound output of Left Rear Speaker with this jack.
j
Power cord
k
power switch
5. REMOTE CONTROL
a
Standby Selector
Press ON/OFF for standby mode.
b
Signal Input Selector (DVD, CD, AUX, TV)
Choose the appropriate mode according to your sound input.
c f
,
l
,
o
Centre, Surround and Subwoofer
Channels Adjustment
Press up and down to increase and decrease the
sound level.
g
,
i
Tone Control of Bass
Press up and down to change the tone.
h
,
j
Tone Control of Treble
Press up and down to change the tone.
k
Mute Button
Turn off the volume by pressing this button.
m
Virtual Surround Effect Selector
Press this button (not applicable in 5.1 CH ) to ON/
OFF the Virtual Surround.
n
Bypass
Press to bypass the original sound signal.
p
,
q
Master Volume button
Press up and down to control the volume
OPERATION MANUAL
14

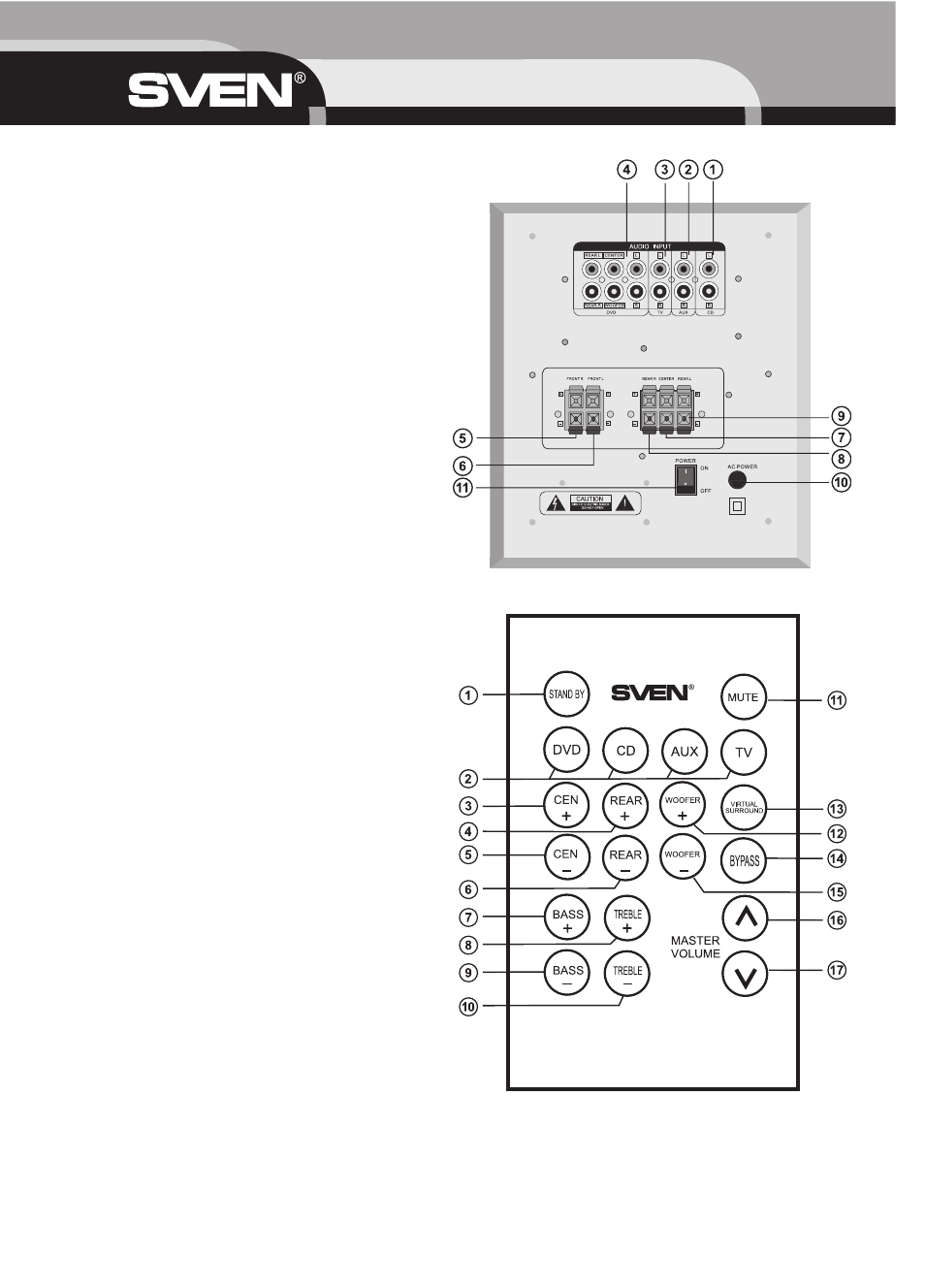

Fig. 2. Rear panel
Fig. 3. Remote control
