Eng SVEN HT 408
1. SAFETY WARNING
~ Do not allow AS wire connecting (including grounded ones), AS wire and amplifier package connecting, AS wire connecting to
ground, as this may cause amplifier output stages damage.
~ Never push objects of any kind (needles, hairpins, coins, insects) into this system.
~ Do not put the system in damp circumstances, prevent from ingress of moisture and dust. (Do not place flower vases and other
objects on the system.)
~ Prevent AS from heating. (Do not install AS near heat sources and prevent it from direct sunlight.)
~ Do not use petrol, alcohol and other solvents when cleaning, as they may damage stained surface. Clean only with dry soft cloth.
~ In order to avoid electric shock and other accidents, never open the back cover for repair without any professional guidance.
~ If AS does not operate, unplug it and refer to service personnel.
~ Please do not climb on system components
~ Unplug machine when there is smoke or odours emitting from the machine.
~ Please leave at least 15cm between the speaker and other objects (e. g. Wall)
2. FEATURES
~ Built in 6 channel amplifier
~ Analog 5.1 channel AC 3 and DTS input, 3 stereo inputs
~ 5.1 Virtual Surround
~ Input selection on front panel and remote control
~ Independent volume control for subwoofer, center and surround speakers
~ Bass and treble control
~ Compact and slim full function control
~ Full antimagnetic loudspeakers
3. SYSTEM COMPOSE
1. Subwoofer — 1 pc
2. Satellite speakers — 5 pcs
3. Remote control — 1 pc
4. User’s manual — 1 pc
5. RCA cables — 3 pcs
6. Speaker cables — 5 pcs
7. MiniJack 2 RCA cable – 1 pc
4. PANELS SETTING
Front Panel Setting
a
4 Input Channels
They are DVD, CD, AUX, and TV respectively. Press to choose the appropri
ate channel.
b
«CENTRE» Volume Control
In DVD mode, press the»Centre» and adjust the volume using the Master
Volume knob. In CD, AUX, TV Mode, press «VIRTUALSURROUND» button to
enter 5.1 Channel. Then press»Centre» and adjust the volume using the
Master Volume knob as well.
c
«REAR» Volume Control
In DVD mode, press «Rear» and adjust the volume using the Master Volume
knob. In CD, AUX, TV Mode, press «VIRTUAL SURROUND» button to enter
5.1 Channel. Then press «Rear» and adjust the volume using the Master
Volume knob as well.
d
«WOOFER» Volume Control
Press «Woofer» and adjust the volume using the Master Volume knob.
e
Master Volume
The Master Volume Control knob (M VOL) is a 360 digital switch. Besides, it
can adjust the volume of each channel (Centre, Rear and Woofer) after
entering the chosen channel.
f
Standby mode
Press to enter the standby mode.
13

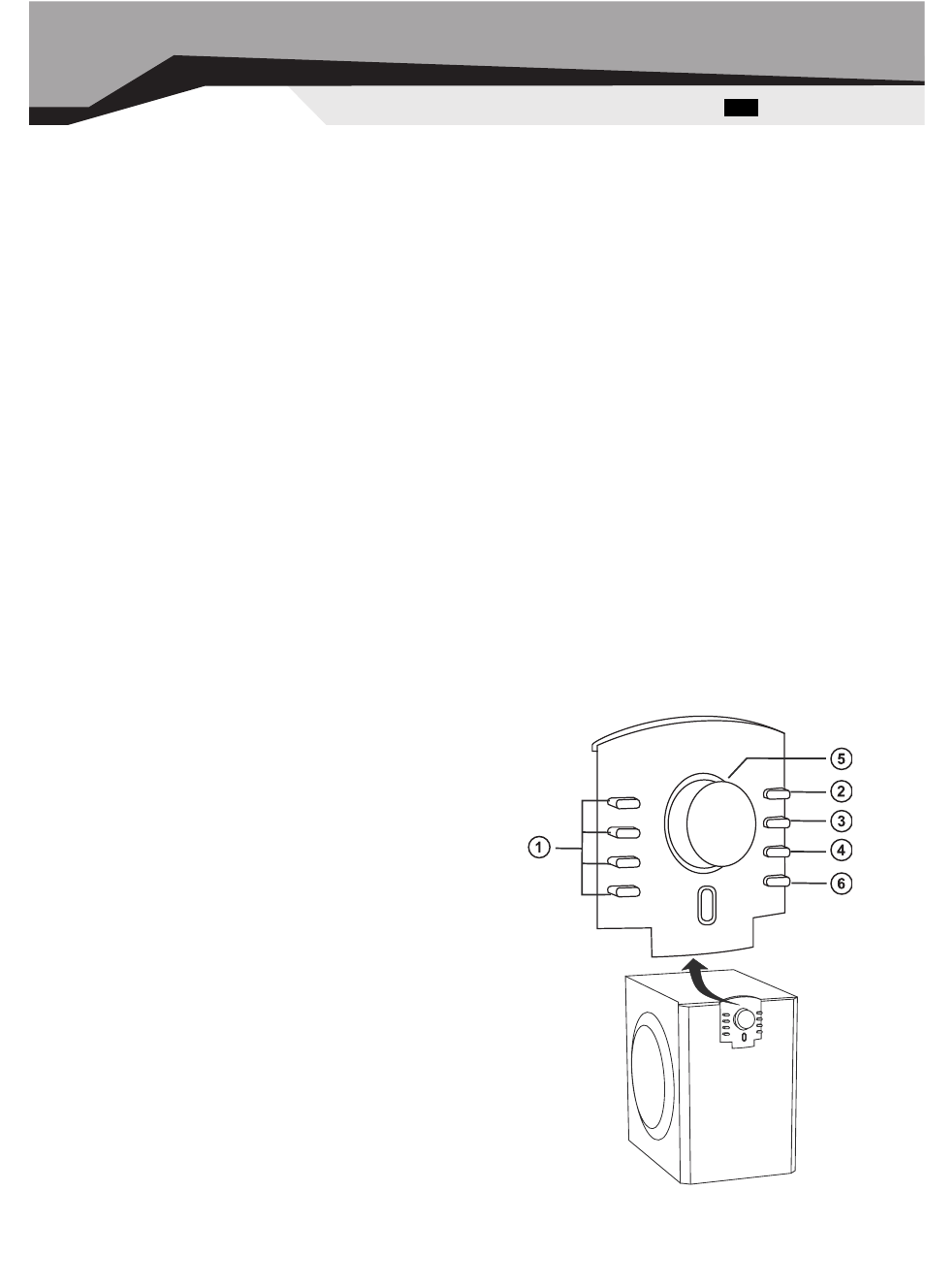

Fig. 1. Front panel
