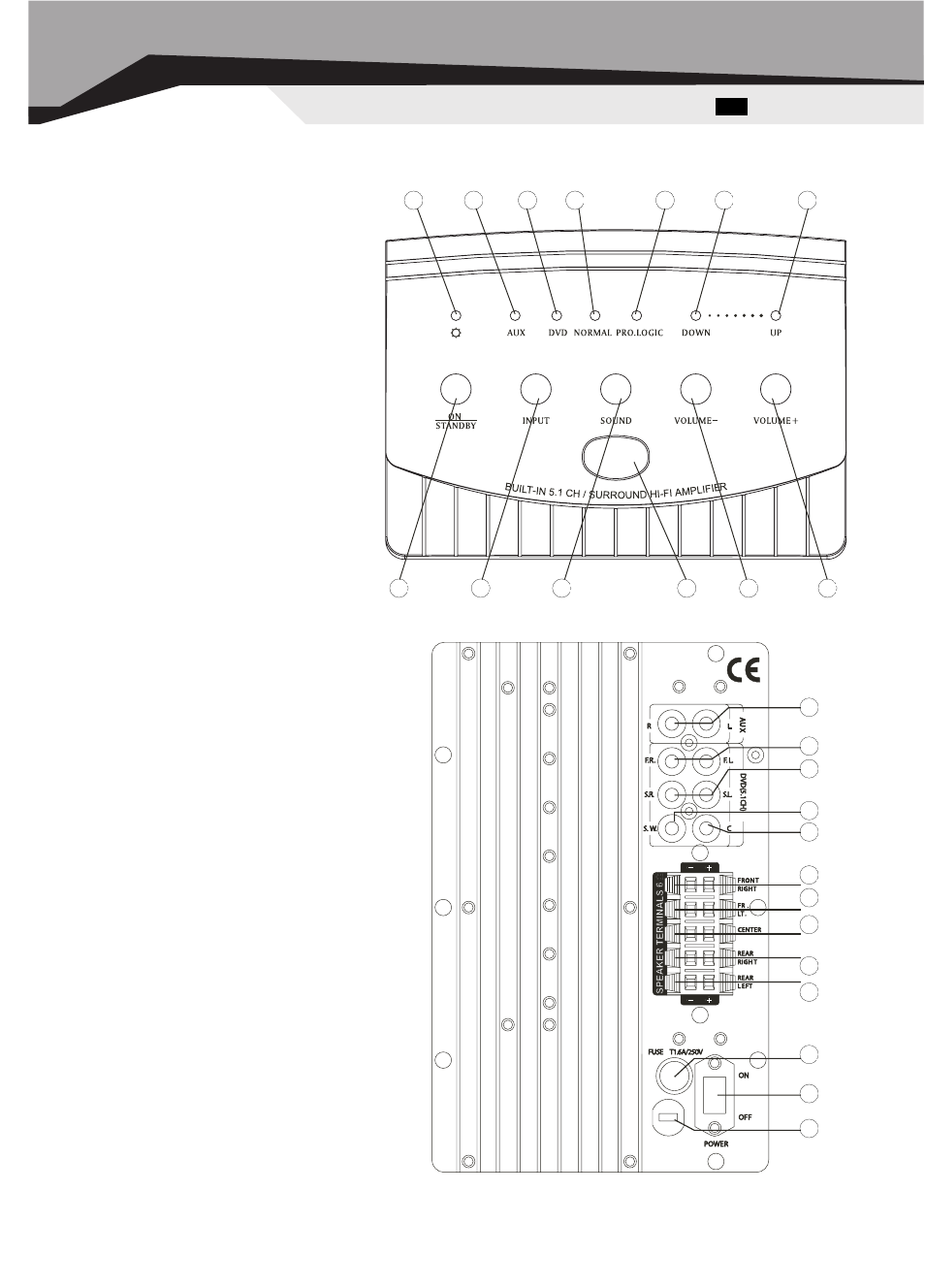

4. FRONT AND REAR PANEL DESCRIPTION
4.1 Front panel
a
STANDBY – indicator
b
AUX input indicator
c
DVD input indicator
d
Stereo input indicator
e
PRO. LOGIC switch input indicator
f
Volume decrease indicator
g
Volume increase indicator
h
Standby key
i
Input swith key
j
STEREO/PRO. LOGIC switch key
k
IR receive window
l
Volume decrease key
m
Volume increase key
4.2 Rear panel
a
AUX input jack
b
Front chanels input jacks
c
Rear chanels input jacks
d
Subwoofer chanel input jacks
e
Central chanel input jack
f
Right front output terminal
g
Left front output terminal
h
Center speaker output terminal
i
Right rear output terminal
j
Left rear output terminal
k
Fuse socket
l
Power switch
m
Power cable
1
2
3
4
5
7
6
8
9
10
11
12
13
Fig. 1.
Fig. 2.
1
2
3
4
5
7
6
8
9
10
11
12
13
