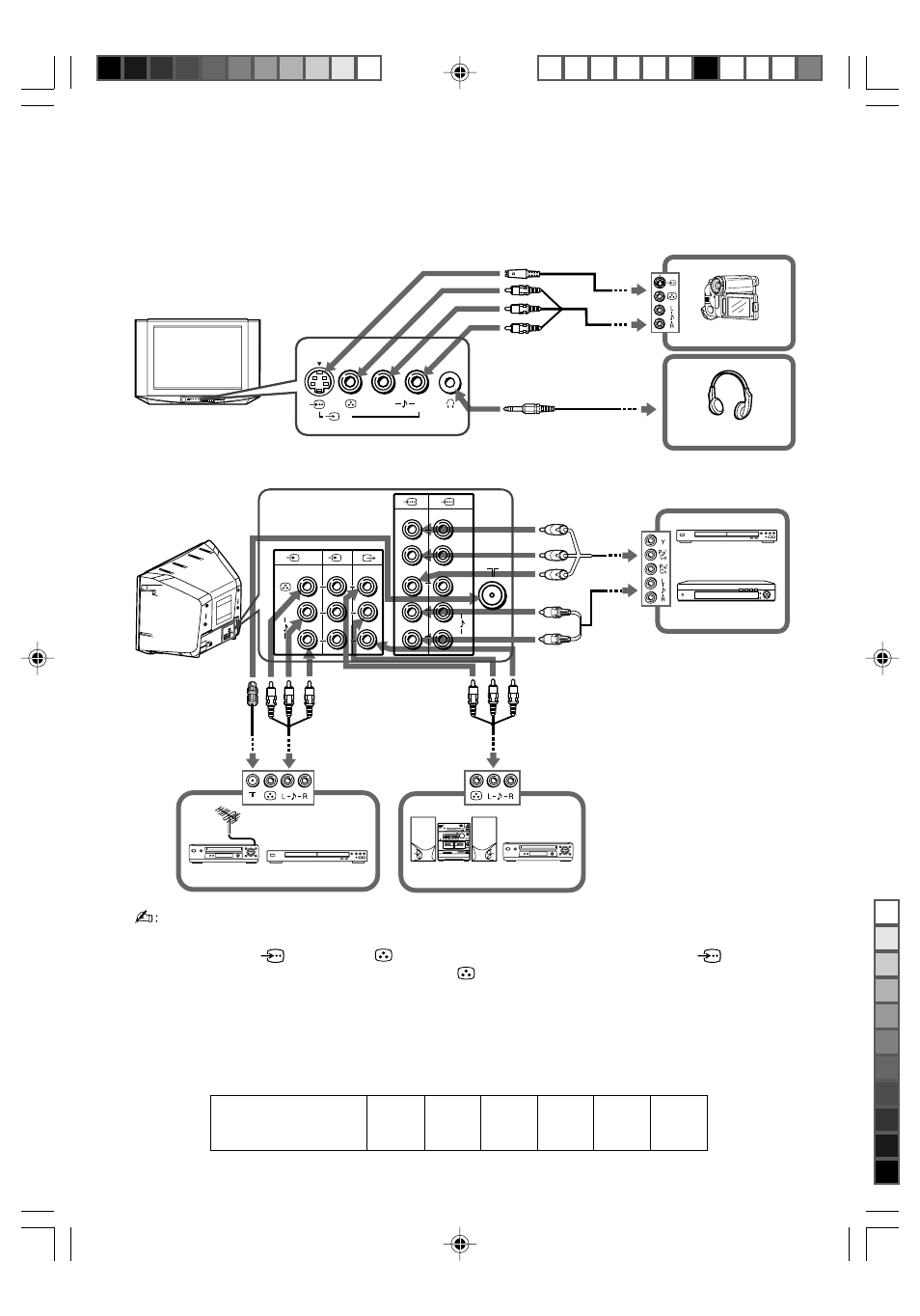

F Connecting optional components
You can connect a wide range of optional components to your TV. Connecting
cables are not supplied.
Connecting to the TV (front)
• If you connect a VCR to 8 (antenna input), preset the signal output from the VCR to the
program number 0 on the TV (see N).
• When both (S video) and (video) for t2 are connected at the same time,
(S video) is automatically selected. To view (video), disconnect the S video cable.
• The component video terminals on your DVD player are sometimes labeled Y/C
B
/C
R
,
Y/P
B
/P
R
, Y/C
b
/C
r
or Y/B-Y/R-Y.
• If you select “HD/DVD 1” or “HD/DVD 2” on your TV screen, the signal from the T
(monitor output) terminals will not be output properly. This does not indicate a
malfunction.
• The TV accepts the following signal formats:
Total scanning line 1125i 750p 625p 625i 525p 525i
Effective scanning line 1080i 720p 576p 576i 480p 480i
fV (Hz) 50/60 50/60 50 50 60 60
Connecting to the TV (rear)
S Video cable
Audio/Video cable
Camcorder
Headphones
1
1
3
2
L
C
Y
R
P / R
C B
P / B
R
(MONO)
L
R
Component
video cable
DVD Player
Digital TV receiver
Audio cable
Audio/Video cable Audio/Video cable Antenna cable
VCR DVD Player Audio System VCR
L(MONO) R
2
