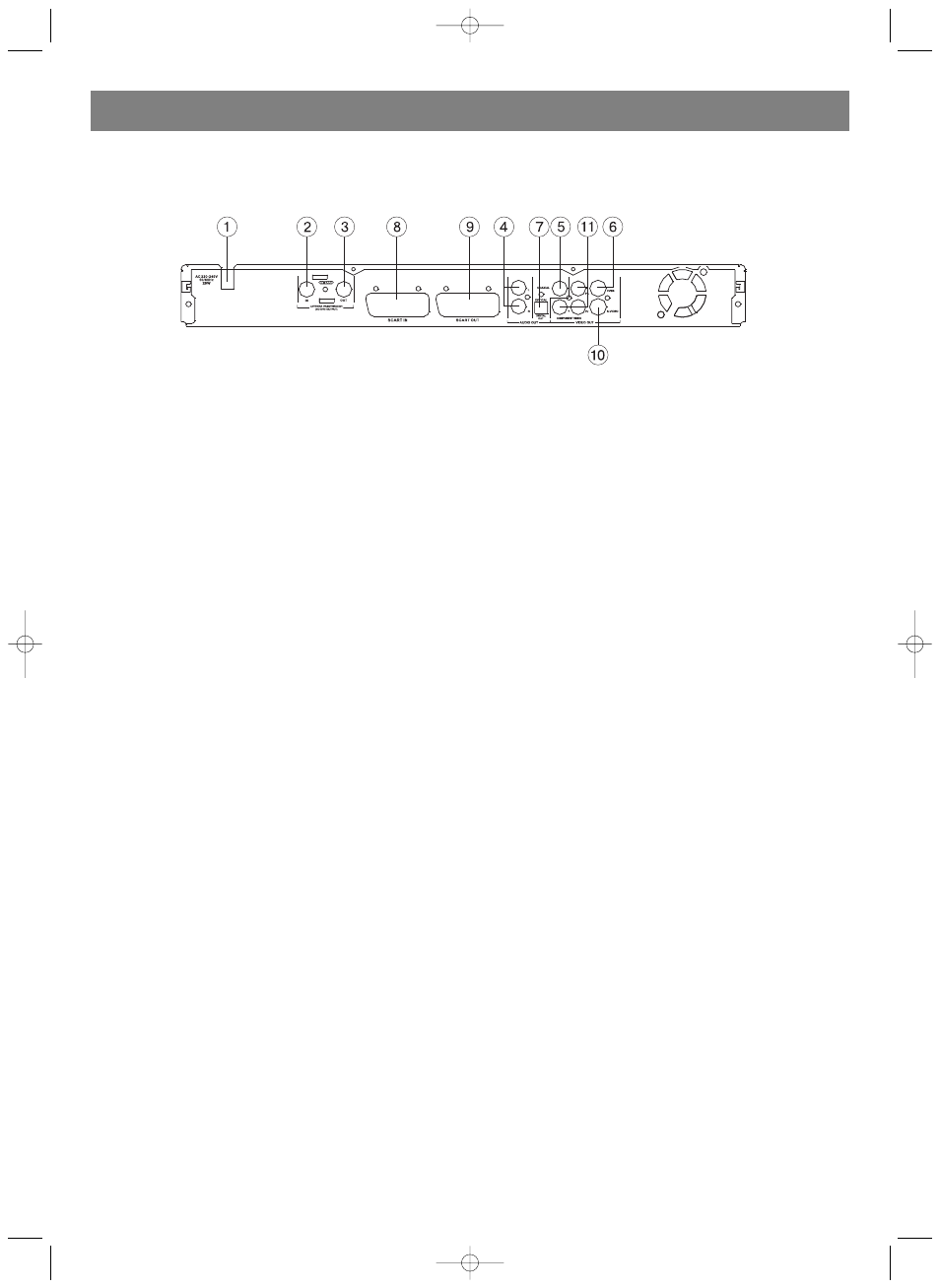

REAR PANEL
1. AC IN~
AC IN power cord connector to 220 240V,50/60Hz mains supply.
2. ANTENNA in
Use to connect to antenna/cable TV.
3. ANTENNA out
Use to output TV signal to TV set.
4. Audio output L/R
Analog audio output (left and right).
5. Coaxial output
Use to output digital audio recorded on discs by connecting to the coaxial digital audio input on an
AV amplifier or receiver with digital audio input capability.
6. CVBS
Use to connect to TV set with video(CVBS) input jack.
7. Optical output
Use to output digital audio recorded on discs by connecting to the optical digital audio input jack
on an AV amplifier or receiver with digital audio input capability.
8. S Video
Use to connect to TV set with S VIDEO input jack.
9. SCART IN
Use to connect to digital AV equipments with SCART OUTPUT capability.
(E.g. DVD player with SCART output jack)
10. SCART OUT
Use to connect to TV set or other equipments with SCART in jack.
11. Y Cb/Pb Cr/Pr
Use to connect to TV set with Y Cb/Pb Cr/Pr input jacks.
The output mode can be set as progressive or interlace
