F. Outdoot Antenna
Installation of the outdoor antenna is very
important for communication range and quality.
Be sure to follow the following steps.
1. Use the wrench to screw the antenna tightly.

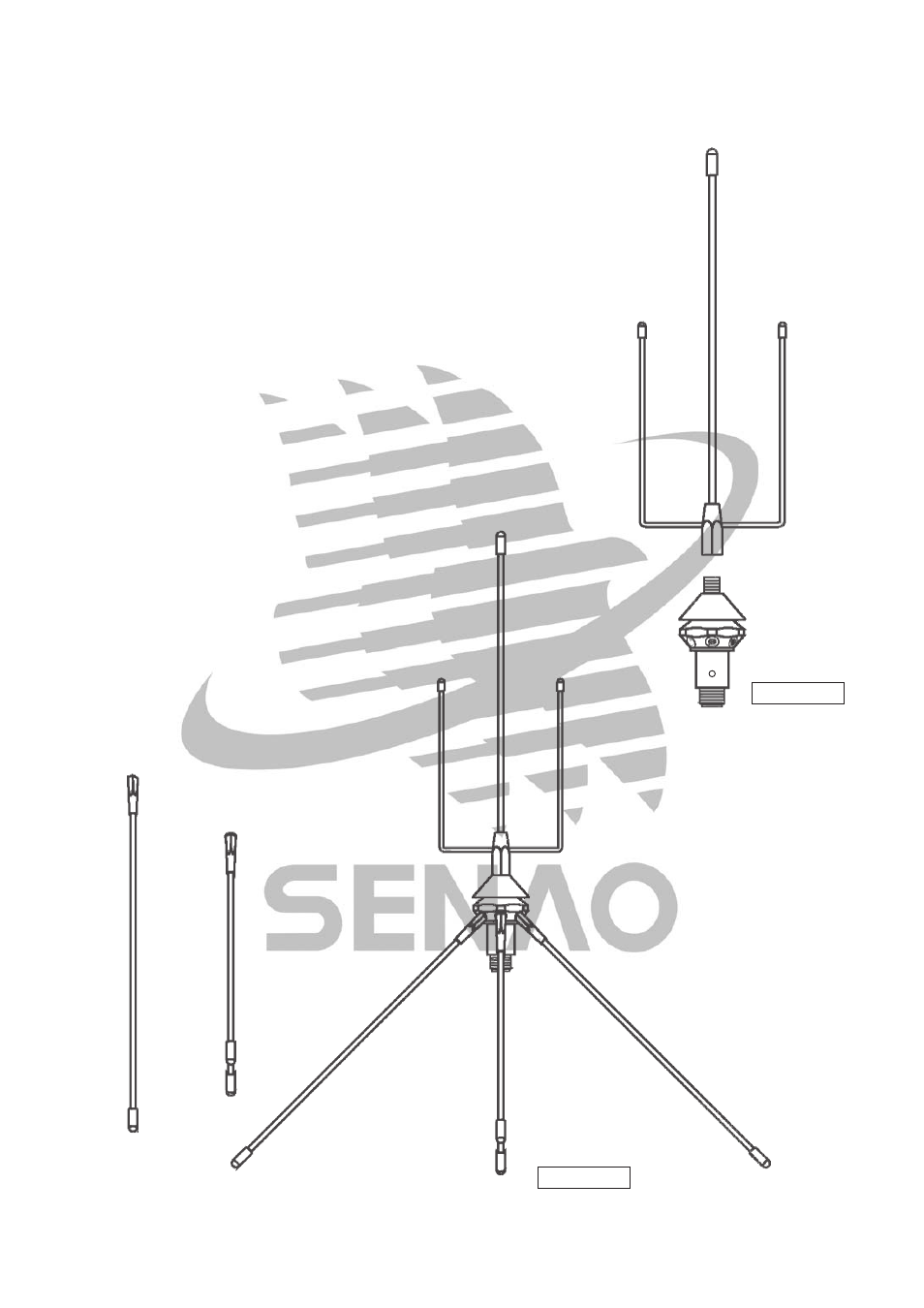

2. Lock the 3 ground planes with the base part as
illustrated in Figure 2.
NOTE: Long and short ground planes should be
alternately arranged.
