80
11 Приложение
VEGAPULS 67 • Протокол Modbus и Levelmaster
41369-R
U-121123
Thermo Electron Autopilot
Схема подключения
+
+
power supply
MODBU
S
D0
D1
IS GND
US
B
1
2
3
13
45
2o
ff
on
(
)
(
)
(-)
(-)
+8
+30 Vdc
to
GND
2
1
Rx -
Rx+

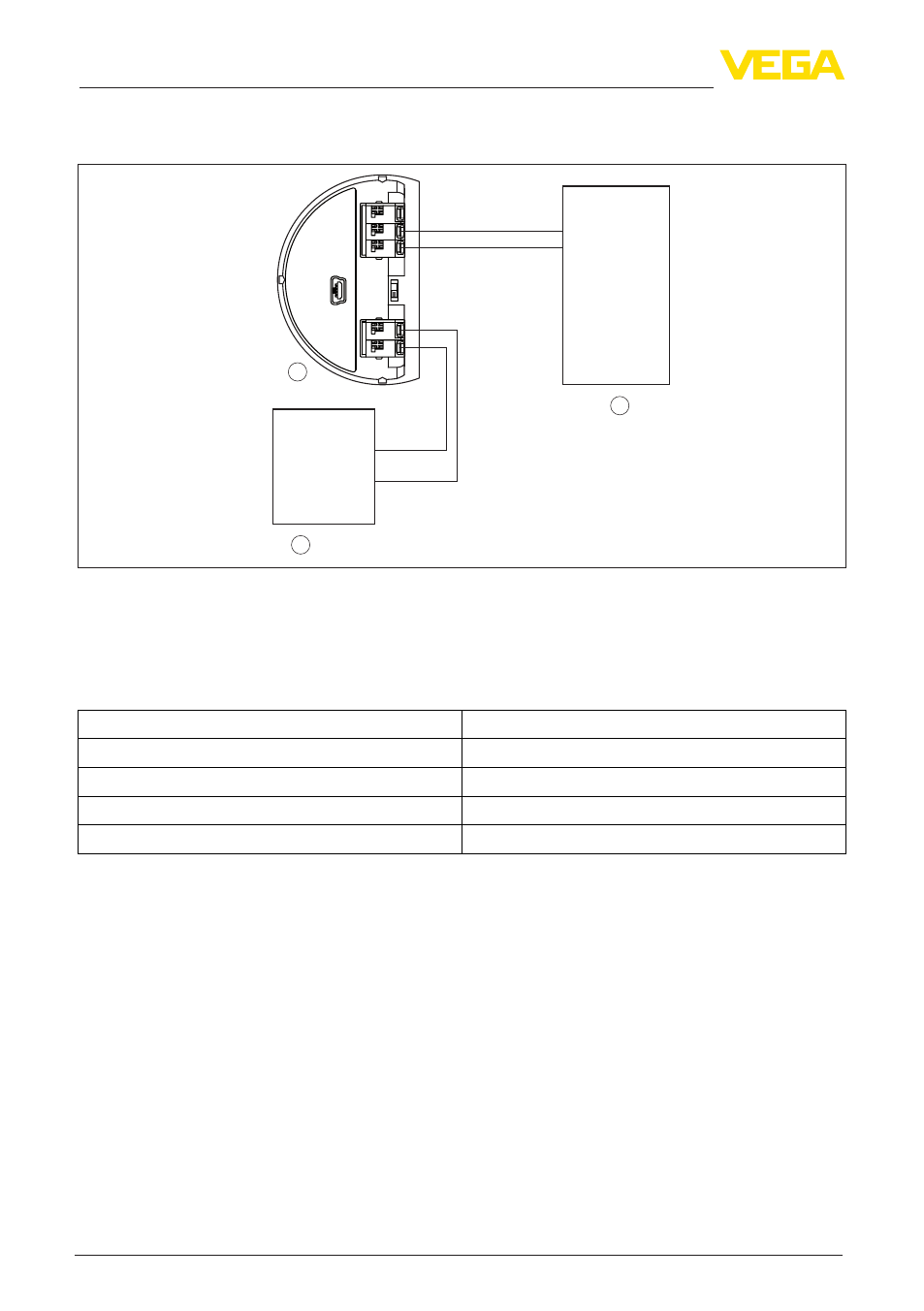

Рис. 54: Подключение VEGAPULS 67 к RTU Thermo Electron Autopilot
1 VEGAPULS 67
2 RTU Thermo Electron Autopilot
3 Питание
Параметр
Параметр
Value
Baud Rate
9600
Floating Point Format Code
0
RTU Data Type
IEE Fit 2R
Input Register Base Number
0
Базовый номер входных регистров всегда прибавляется к адресу входного регистра
VEGAPULS 67.
Поэтому для RTU Thermo Electron Autopilot как адрес регистра для 1300 должен быть задан
адрес 1300.
