Installation/Connection
Connection

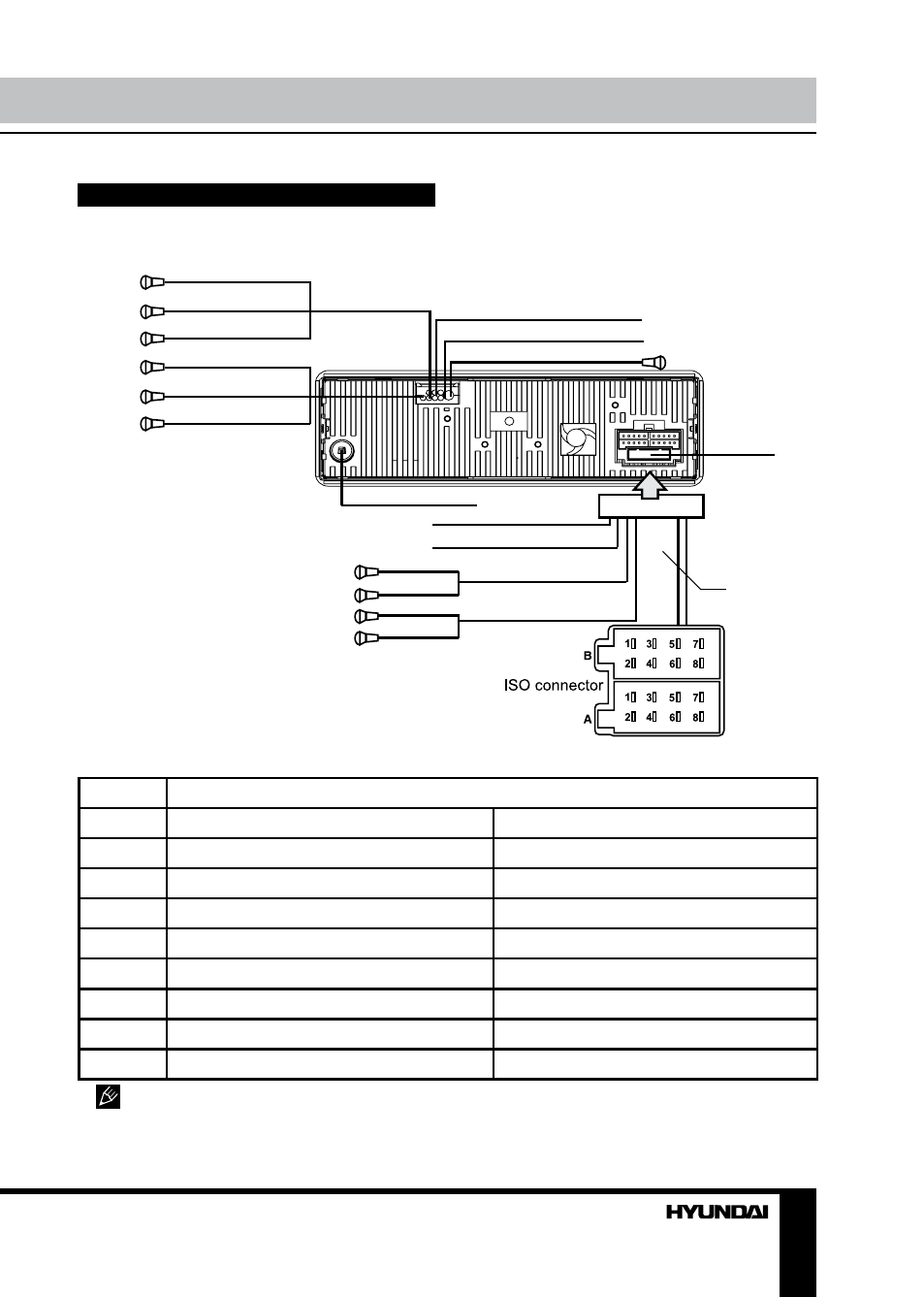

Connection diagram
ISO connection table
Location Function
Connector A Connector B
1 - Rear right (+) - Purple
2 - Rear right (-) - Purple/Black
3 - Front right (+) - Grey
4 Battery +12V/Yellow Front right (-) - Grey/Black
5 Power antenna/Blue Front left (+) - White
6 - Front left (-) - White/Black
7 Ignition key (+12V)/Red Rear left (+) - Green
8 Ground/Black Rear left (-) - Green/Black
Power antenna wire is intended for power supply of the antenna and for remote control of
an additional amplifier.
Video out (yellow)
Video in (yellow)
Audio out (red=right)
Audio in (red=right)
RCA AV out
RCA AV in
Audio out (white=left)
Audio in (white=left)
Radio antenna jack
Subwoofer out (blue)
TV antenna jack
Fuse 15 A
GPS antenna (option)
Parking (Brown)
Reverse (Pink)
RCA out (rear) grey
RCA out (front) brown
right (red)
right (red)
left (white)
left (white)
