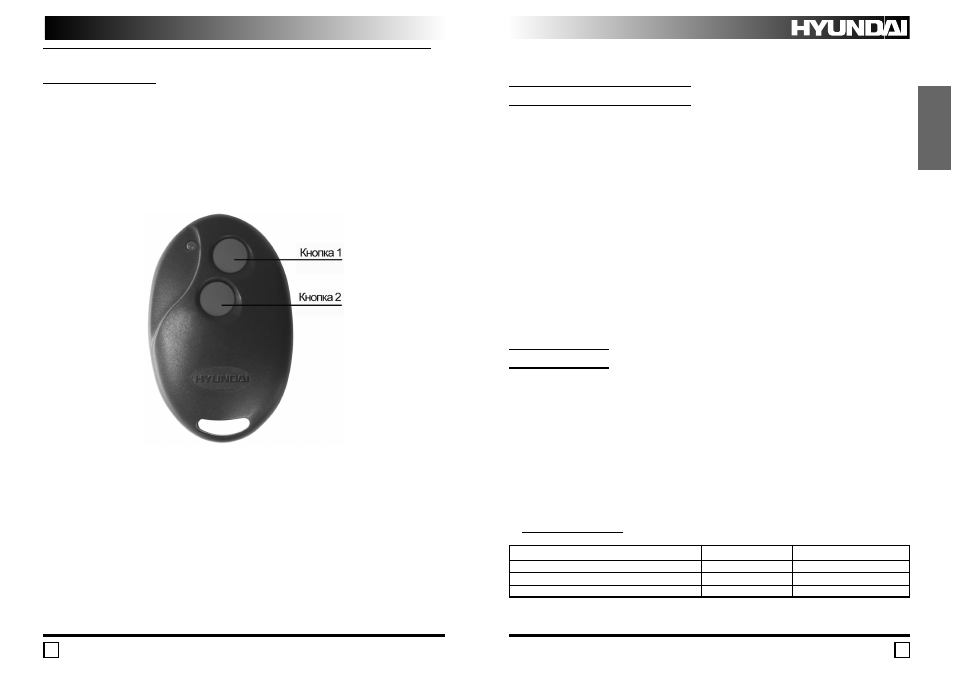

Однонаправленный пульт дистанционного управления
сигнализацией.
Миниатюрный радиопередатчик, питающийся от 12 вольтовой батарейки (тип 23 А),
которой хватает примерно на 1 год эксплуатации. Существенное снижение дальности
приема системой команд передатчика говорит о необходимости замены батарейки. На
брелоке расположены две кнопки управления и индикаторный светодиод. Алгоритм
формирования и передачи управляющих команд идентичен двунаправленному пульту
управления. Однонаправленный пульт предназначен только для управления сигнализа
цией.
Two Way Car Alarm System
HYUNDAI H-SS91
87
ENGLISH
Transceiver RF Range
Conditions
Pager
Remote Control
Built up City Area
350 – 400m
250 – 300m
Open Air within City Area
700 – 900m
400 – 450m
Open Air outside City Area
Up to 1500m
Up to 800m
Installation Manual
General recommendations
Before you get down to installation, disconnect the “ “ terminal of the car battery.
1. The main unit is to be installed inside the passenger compartment, away from sources of
moisture and heat.
2. The RF Base Station with antenna is to be mounted on the windscreen as high as possible
to reach maximal communication range between transceiver and vehicle.
3. The siren is installed in the engine compartment or in another location inaccessible for a
thief, with the megaphone down or sideward. The location must be away from heat sources
and protected from penetration of water. If the siren has a back up battery, access to the
service keyhole must be ensured.
4. The pin switches of the hood and trunk are mounted in locations protected from water and
inaccessible when the hood/trunk is closed.
5. The shock sensor is installed inside the passenger compartment on the car body’s metal
structures, as close to the car’s longitudinal axis as possible, and is fixed with screws or double
sided mounting pad.
6. All high power circuits should be fused for respective currents.
Technical Data
Voltage
9…15V
Current Consumption
20 mA
RF Frequency
433,92 MHz
Working Temperature
40…+85
0
C
Maximal Allowable Current via the Relay Contacts:
Immobiliser Relay
30A
Indicators Relay
10A
Central Door Lock Relays
15A
Transmission Format
AM/AM
