Pulldown Assembly Guide: Assembling the Equipment 17
Attaching the Instructional Placard and
Safety Labels
The equipment includes a metal bracket for the instructional placard. The
placard slides over a metal button near the bottom of the bracket. A small
screw then holds it in place.
To attach the instructional placard:
1. Remove the protective backings from the machine name label. Attach the
label carefully to the recess at the upper front of the placard, as shown in
the following figure.

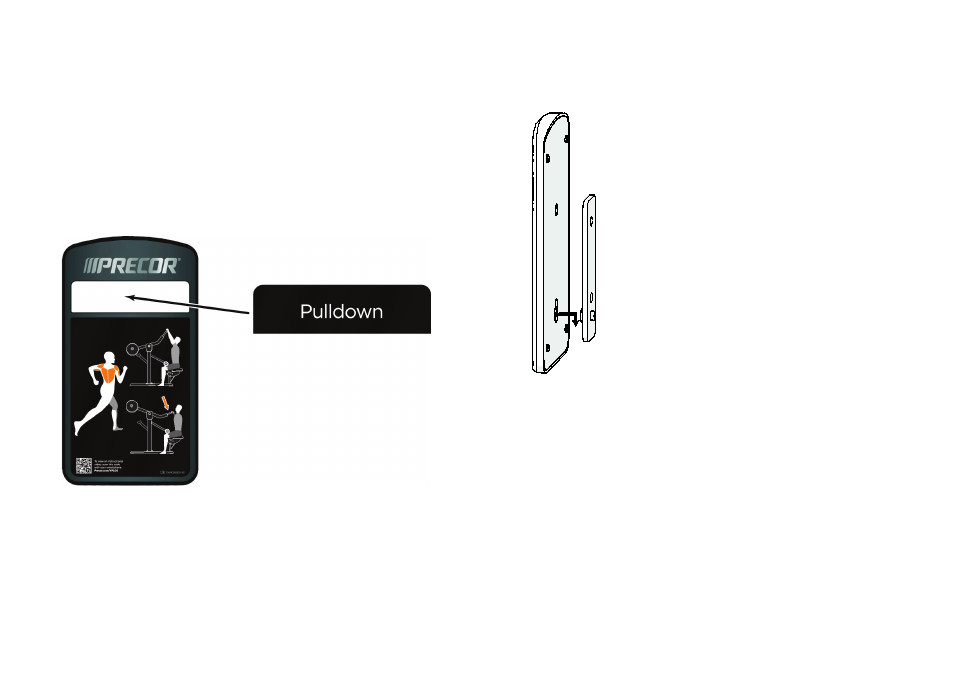

Figure 17: Placard label positioning
2. Place the large hole near the bottom of the placard over the button, then
slide the placard downward to lock it into place as shown in the following
figure.
Figure 18: Placard mounting
