Pulldown Assembly Guide: Assembling the Equipment 9
Attaching the Side Uprights to the
Base Frame
Perform the following procedure to attach both side uprights to the base
frame.
To attach the side uprights to the base frame:
1. Position the left side upright on the base frame so that the screw holes on
the base frame and the upright line up.
Note: Ask that your assistant hold the side uprights while you secure them
into position.
2. Add one M12 x 35mm socket head cap screw and one 13mm flat washer to
each of the screw holes. Finger tighten the fasteners.

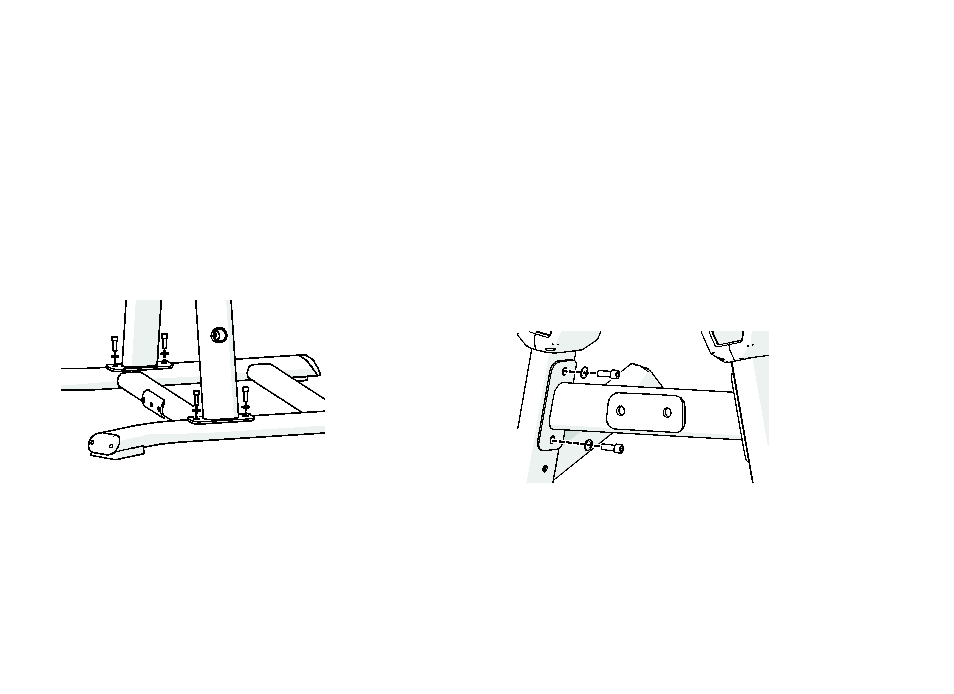

Figure 4: Side upright attachment
Installing the Crossbar
Note: Have your assistant hold the crossbar in place while you perform this
procedure.
To attach the crossbar to the side uprights:
1. Position the crossbar between the side uprights so the screw holes at
either end line up with the screw holes on the side uprights.
2. Place a 13 mm flat washer over a M12 x 35 mm socket head cap screw.
Insert the screw into the upper screw hole at one end of the crossbar and
tighten it partially.
3. Place a 13 mm flat washer over a M12 x 35 mm socket head cap screw.
Insert the screw through the lower screw hole and then tighten the screw
partially.
4. Repeat steps 2 and 3 to attach the crossbar on the other side of the frame.
Figure 5: Crossbar attachment
