Calf Raise Assembly Guide: Assembling the Equipment 9
Installing the Knee Pad Frame
A small retaining screw holds the knee pad frame in place and a pop pin sets
its position. Because both of these parts are installed at the factory, you must
move them out of the way to insert the knee pad frame.
To install the knee pad frame:
1. Remove the retaining screw from the movement arm.
2. Pull the pop pin out as far as it will go and insert the knee pad frame into
the slot.
3. Release the pop pin, then reinsert and tighten the retaining screw.

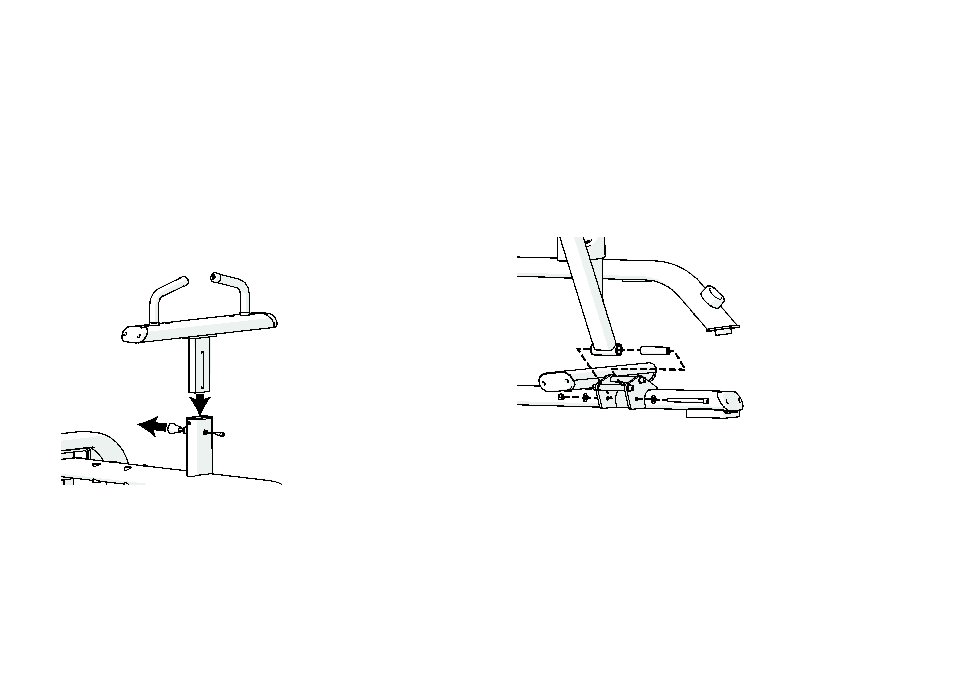

Figure 7. Knee pad frame installation
Attaching the Stop Arm
The stop arm allows a person to sit down in the appropriate position for the
exercise and holds the movement arm in a resting position between workouts.
To attach the stop arm to the base frame:
1. Slide the pivot sleeve into the stop arm.
2. Position the stop arm in the bracket of the base frame and secure it using
one M12 x 35 mm socket head screw, two 13 mm flat washers, and one
M12 nylon lock nut.
Figure 8: Stop arm sleeve and axle positioning
