Calf Raise Assembly Guide: Assembling the Equipment 8
Installing the Movement Arm
Before you attach the movement arm to the vertical frame, you must insert an
axle.
To insert the axle into the movement arm:
1. Slide the axle into the movement arm sleeve.

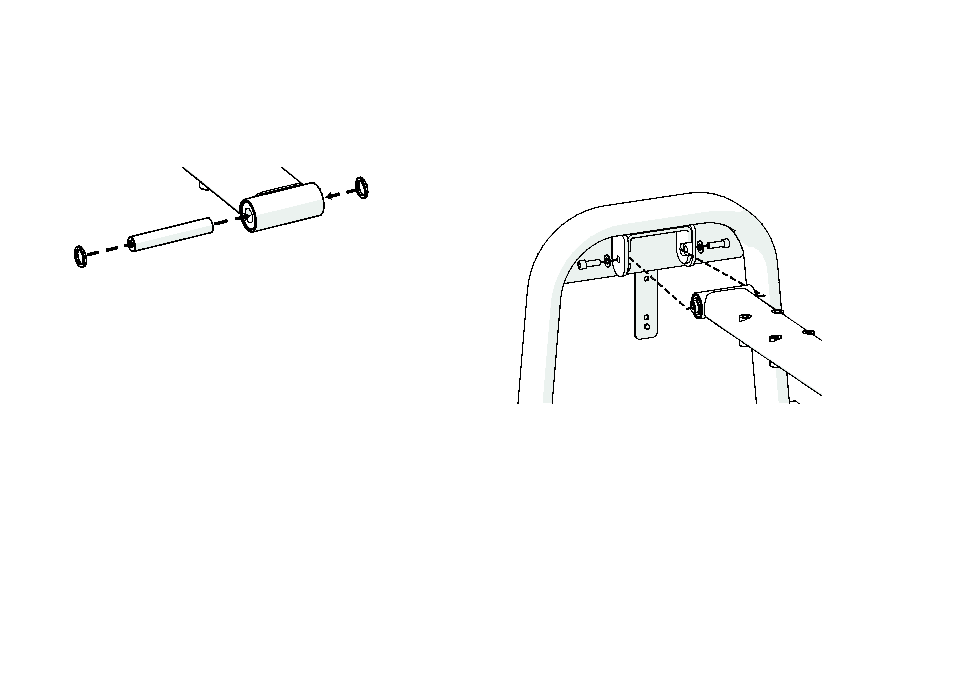

Figure 5: Axle and stop ring installation
2. Center the axle within the movement arm sleeve, then place a stop ring
over each end of the axle. Slide the stop rings as far in as they will go.
To attach the movement arm to the vertical frame:
1. Gently fit the movement arm into the bracket underneath the vertical
frame.
2. Attach the movement arm using two M12 x 35 mm socket head cap
screws and two 13 mm flat washers.
Important: The screws should be tight enough to prevent the movement arm
from rocking from side to side when in use.
Figure 6: Movement arm attachment
