Assembling the Exercise Bike
27
Installing the Bottle Holder
The bottle holder attaches directly to the upright support.
To install the bottle holder:
1. Position the bottle holder against the upright support so
that the screw holes in the bottle holder and the support
line up.
2. Secure the bottle holder onto the upright support using
two M5 x 12 mm panhead screws, as shown in the
following illustration. Tighten both screws completely
using a #2 Phillips screwdriver.

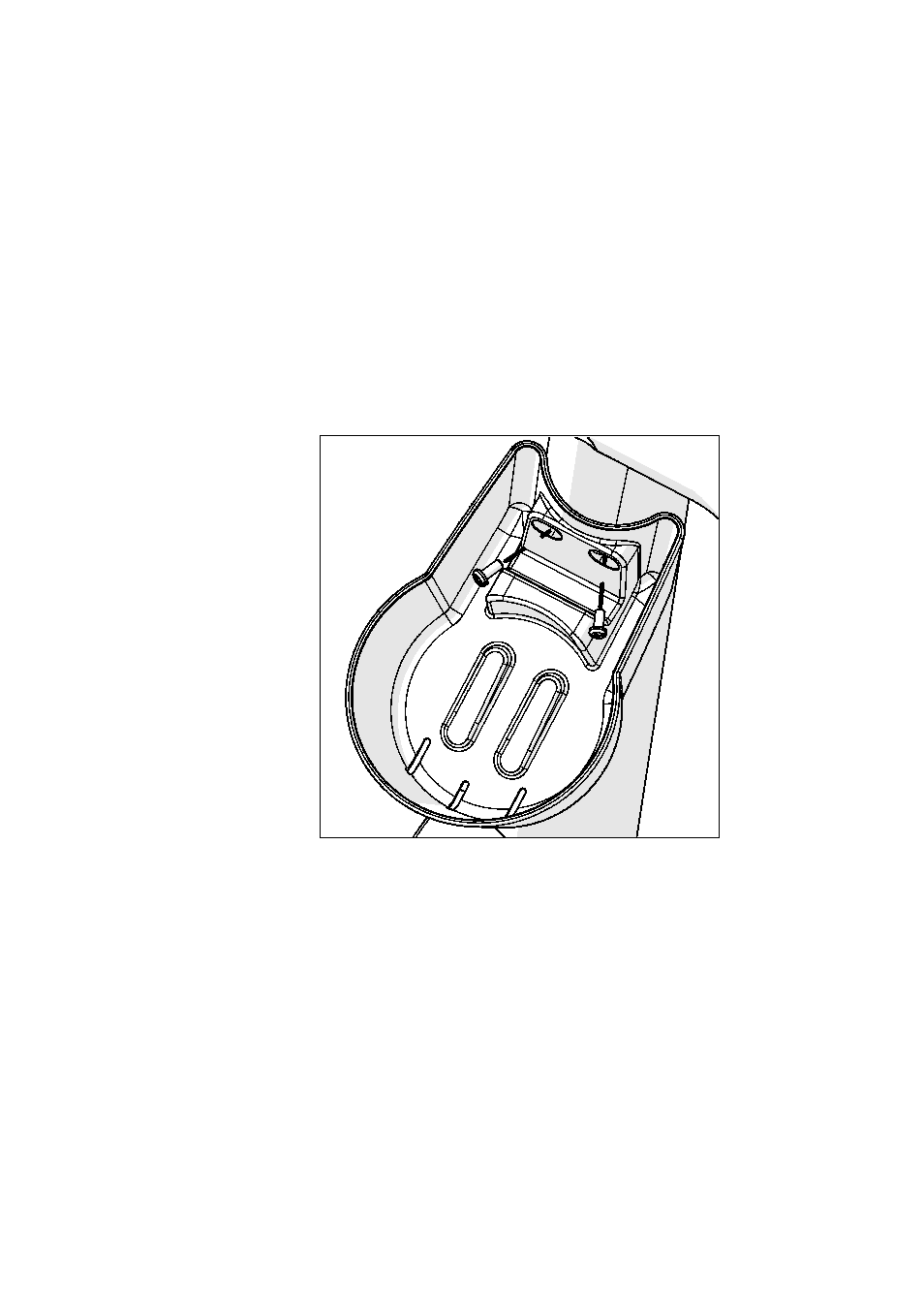

Figure 9: Bottle holder installation
