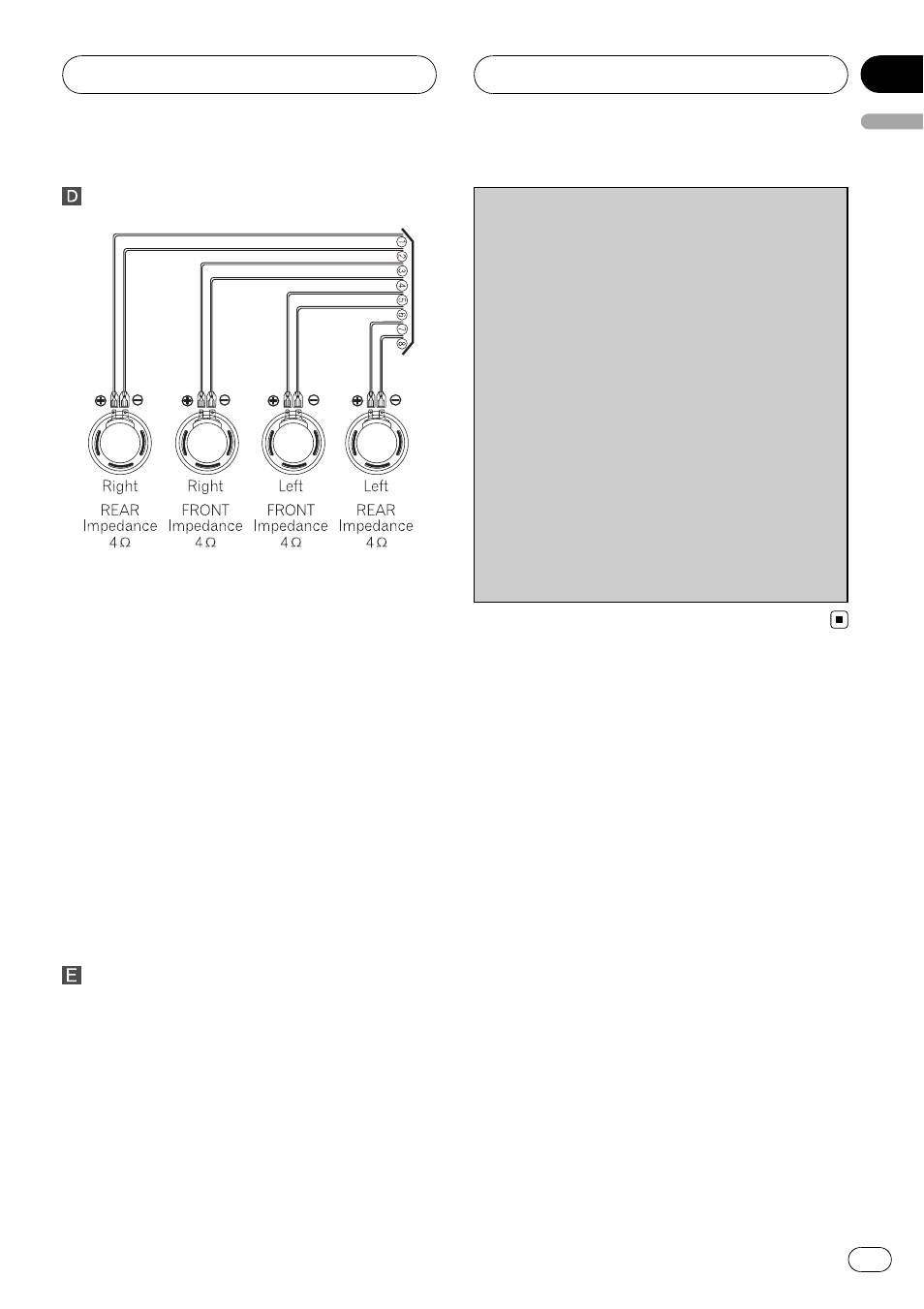

Speaker Connections
1 Violet
Rear right+
2 Violet/black
Rear right*
3 Gray
Front right+
4 Gray/black
Front right*
5 White
Front left+
6 White/black
Front left*
7 Green
Rear left+
8 Green/black
Rear left*
Wired remote input
Hard-wired remote control adaptor can be
connected (sold separately).
Attention
The connector wiring may vary depending on
the car manufacturer, even when ISO connec-
tors are used. We recommend to check the
car
’s wiring provision before connecting the
car stereo. Please pay particular attention to
pin 5, where a misconnection might cause da-
mage to the car or radio. Take special care
when installing into
’98 or later VW/Audi/
Skoda/Seat models as there may be a 12 V con-
nection on Pin 5, which could damage the car
stereo or into Ford from
’97 or later, with an
ISO connector, on which damage to the car
’s
microcomputers is possible if misconnected.
Use of ISO connector adapters available on the
market may facilitate installation.
Connection
En
45
English
Section
14
