Connecting to a car
Before connecting, make sure that the ignition
switch is set to OFF and remove the battery *
terminal to avoid short circuits.

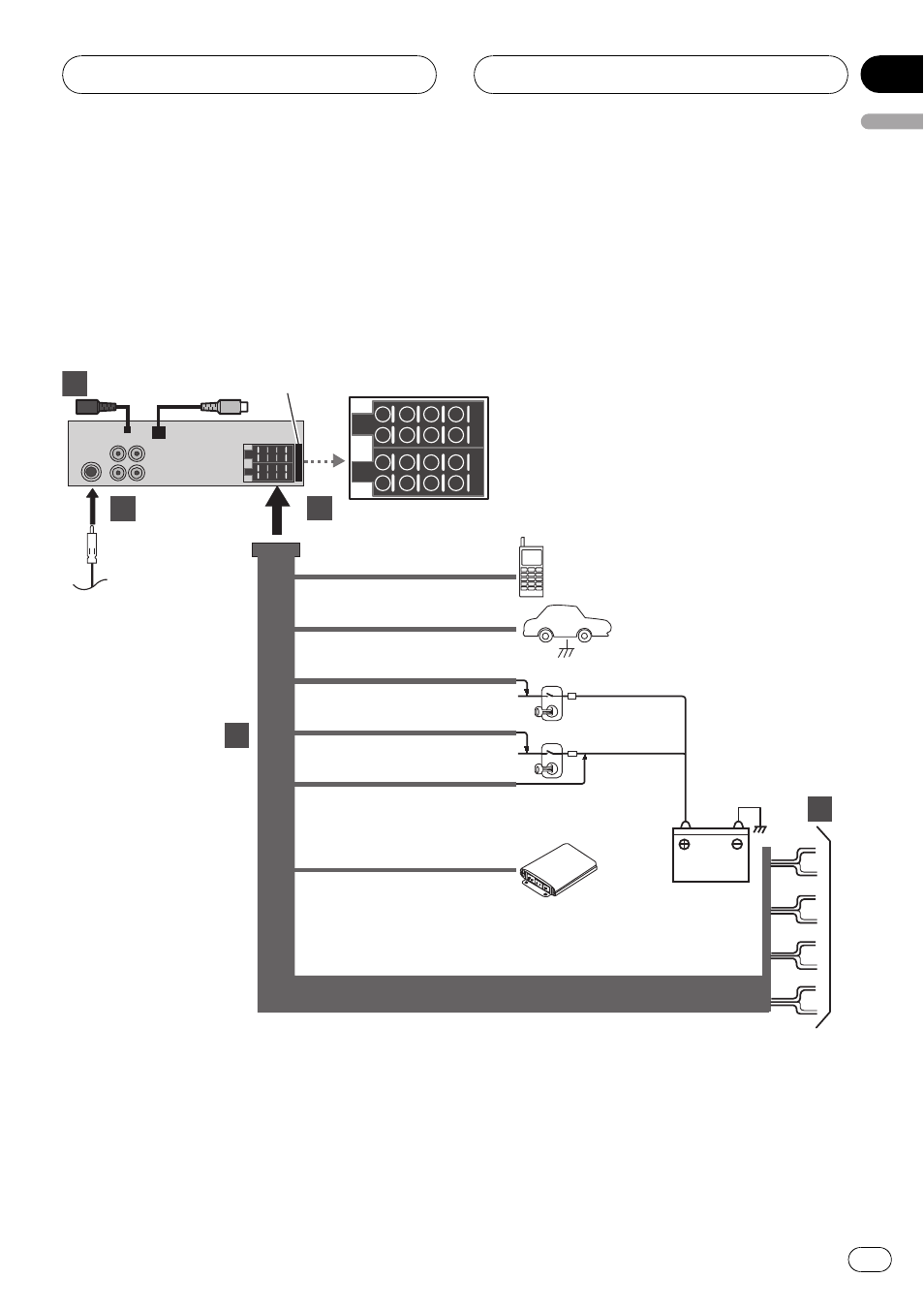

Connecting with the supplied power
cables
A
B
D
C
1 3 5 7
2 4 6 8
1 3 5 7
2 4 6 8
Blue/white
(System remote control)
Yellow/black (Phone mute)
Orange (Illumination)
Red (Accessory)
Black (chassis ground)
Yellow (Back up)
DIMMER SWITCH
IGNITION SWITCH
To Speaker
To Vehicle
AMPLLIFIER
(Optional)
BATTERY
Fuse (10 A)
15 cm
15 cm
E
Connection
En
43
English
