2. Machine design
Before start to use the appliance
first time, remove the water
release hole protective label
from the drip tray plate.

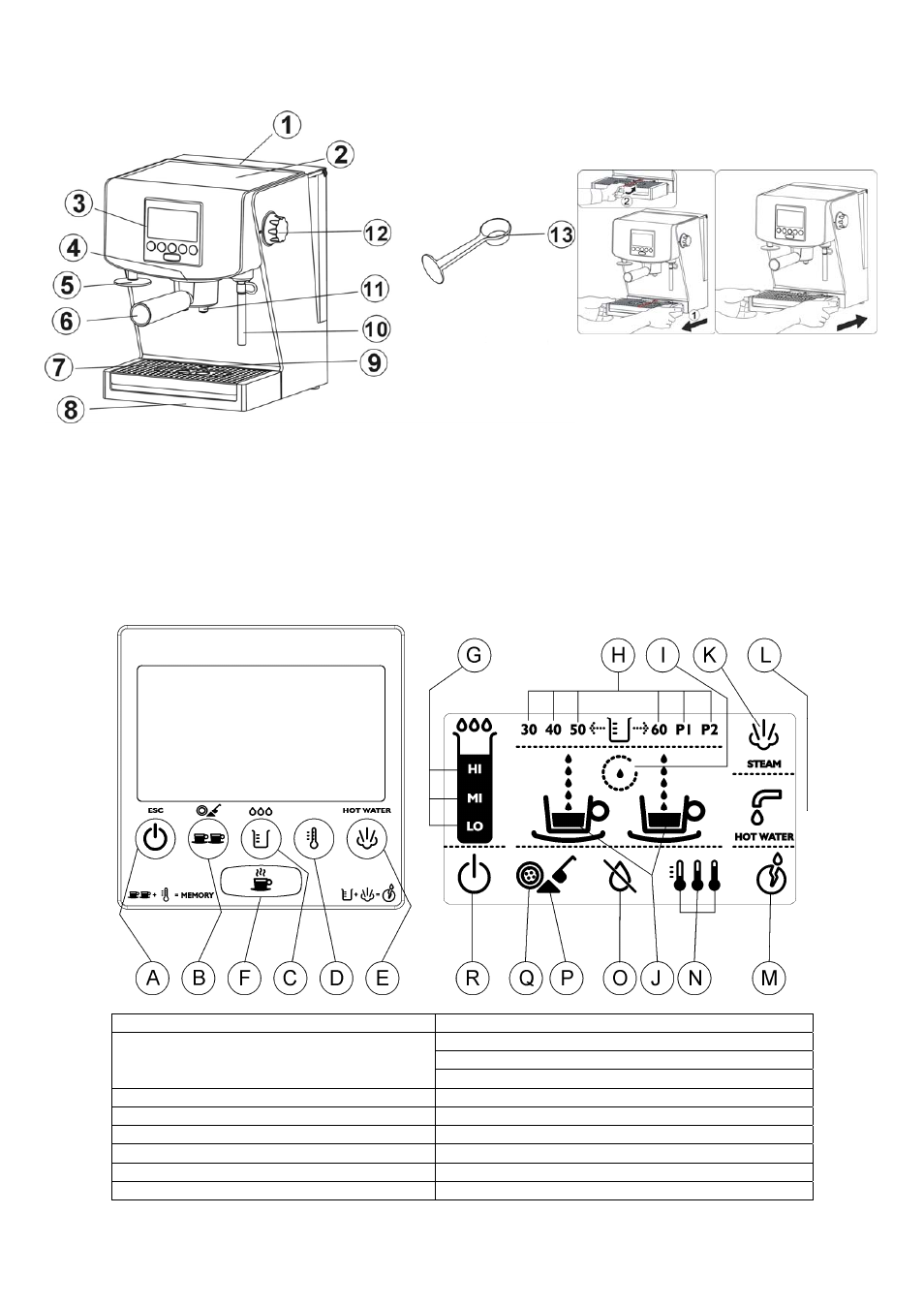

1. Removable covered water tank 8. Drip tray
2. Cup-warming plate 9. Drip tray emptiness gauge
3. Control panel 10. Steam nozzle/cappuccino attachment
4. Brew head 11. Coffee outflow
5. Coffee compressor 12. Steam/hot water control
6. Filter handle 13. Measuring cup with a whip
7. Drip tray grid
3. Control panel
A Power on/off button I Wait mode indicator
B Single/double cup select button/ espresso
instant bags mode/ground coffee mode
J Single/double cup indicator
K Steam indicator
L Hot water indicator
C Coffee amount select button M Limescale removal indicator
D Temperature select button N Temperature level indicator
E Steam/hot water select button O Low water level indicator
F Brew coffee button P Ground coffee mode indicator
G Water hardness indicator Q Espresso instant bags mode indicator
H Coffee amount indicator R Power on/off indicator
