Engli
s
h
3
En
Before making connections, make sure that the amplifier is
switched off.
• Connect the screw-type input terminals at the rear of the
speakers to the speaker output terminals of the amplifier (or
receiver) with the speaker cable.
• Connect the (+) terminals on the amplifier (or receiver) to the
(+) terminal of each speaker, making sure to confirm the color-
coded wire of the cable at each end. Use the other wire of the
cable to connect the (–) terminals of the components.
• Connect one speaker to the left (marked L) terminals of your
amplifier, and another speaker to the right (marked R)
terminals, making sure not to reverse the polarity (+, –). If one
speaker is connected with reversed polarity the sound will be
unnatural and lack bass.
■How to connect
1
Loosen the knob.
2
Remove 10 mm (3/8”) of insulation from each end of the
cables, and twist the exposed conductors together neatly and
tightly, as shown below.
3
Insert the bare wire.
4
Tighten the knob and secure the cables.
Test the firmness of the connection by pulling lightly on the
cables at the terminal.
Notes
• Do not let the bare speaker wires touch each other as this
could damage the speaker or the amplifier, or both.
• Do not insert the insulation into the hole. Sound may not be
produced.
■When using a banana plug
Note
Do not take off this cover unless using a banana plug.
1
Remove the cover by pulling it toward you.
2
Tighten the terminal knob.
3
Simply insert the banana plug into the terminal.

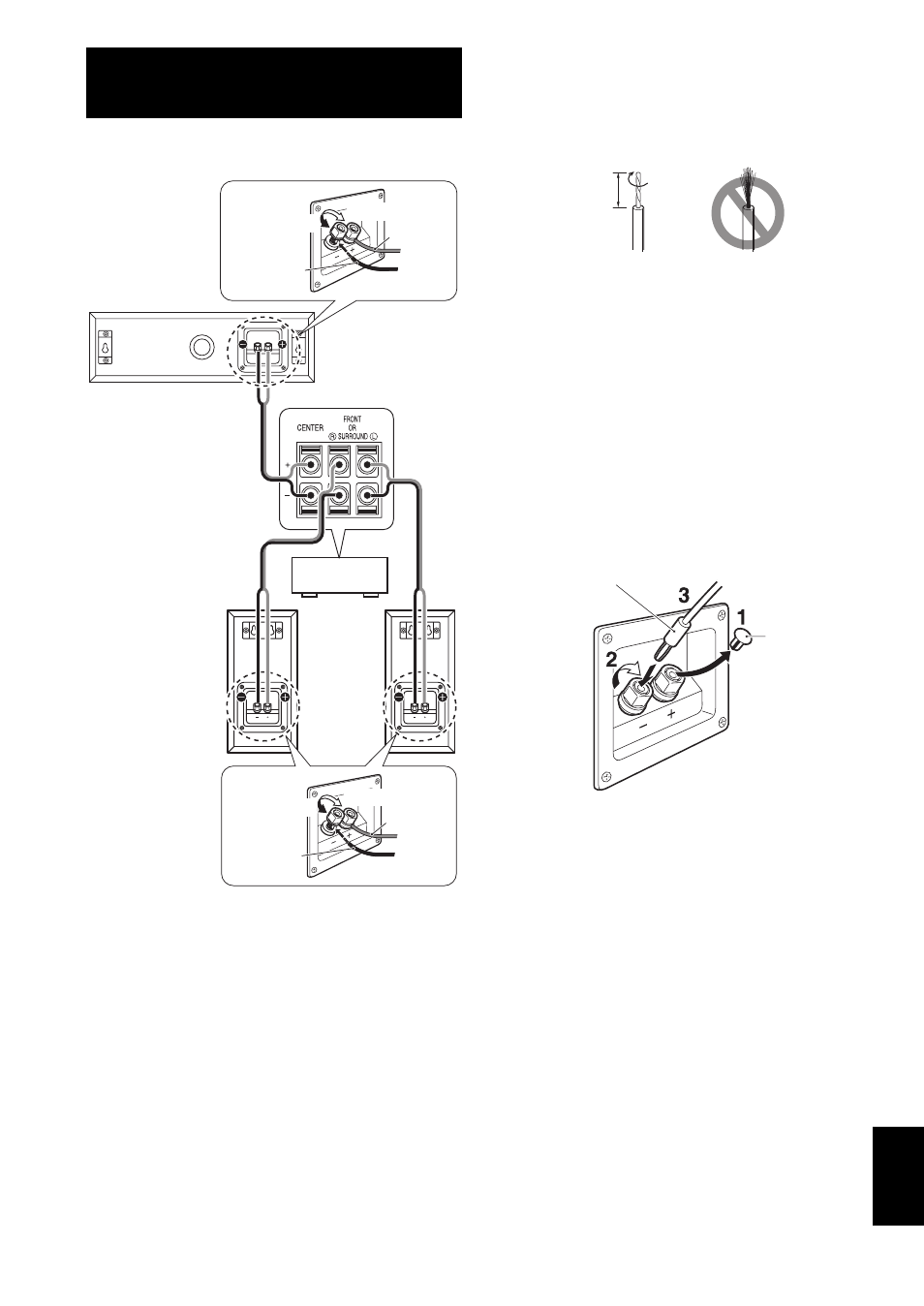

CONNECTIONS TO YOUR
AMPLIFIER
Loosen
Black (–)
Tighten
Red (+)
NS-B210
Amplifier or
receiver
NS-C210
NS-B210
Loosen
Black (–)
Tighten
Red (+)
Good No Good
10 mm
(3/8 ”)
Banana plug
Cover
