19
4. Install the battery.
Insert the top of the battery
first into the top edge of the
battery compartment. Push
down the bottom of the
battery until it snaps into
space.
! Caution
When you install or remove the battery, you should be
careful of the sharp edge of battery cover.
Charging the Battery
Before connecting the travel adapter to the phone
you must first install the battery.
1. Ensure the battery is fully charged before using
the phone for the first time.

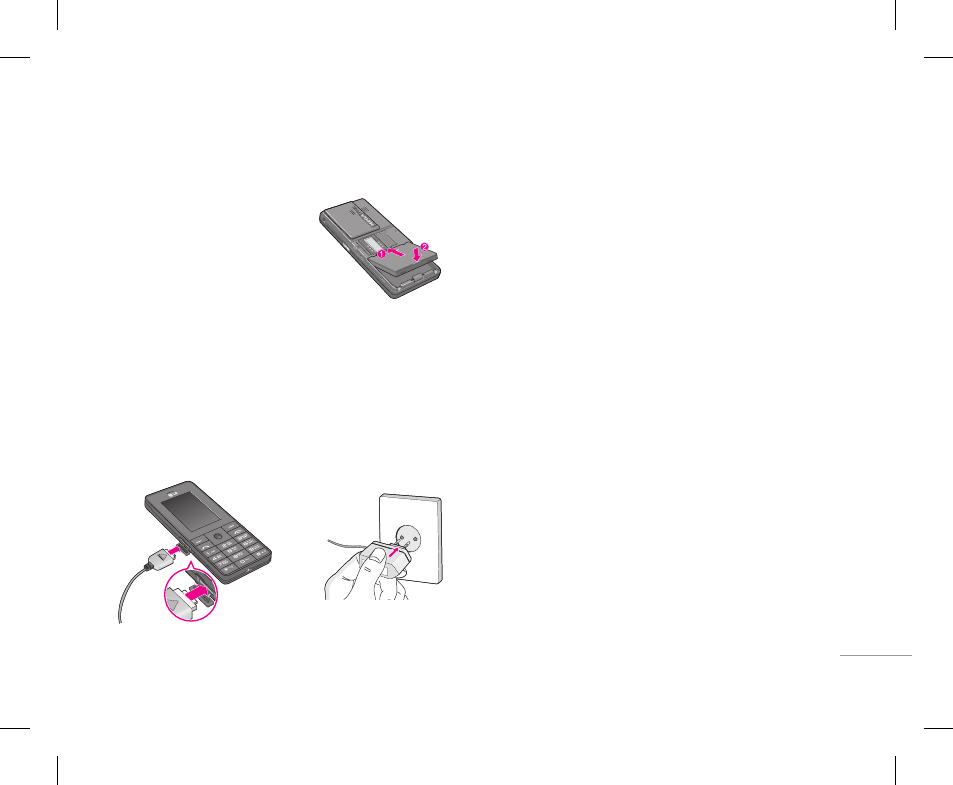

2. With the arrow facing you as shown in the
diagram push the plug on the battery adapter into
the socket on the side of the phone until it clicks
into place.
3. Connect the other end of the travel adapter to the
mains socket. Use only the charger included in
the box.
4. The moving bars of battery icon will stop after
charging is complete.
! Caution
• Do not force the connector as this may damage the
phone and/or the travel adapter.
• If you use the battery pack charger out of your own
country, use an attachment plug adaptor for the proper
configuration.
• Do not remove your battery or the SIM card while
charging.
Installing the SIM card and the
handset battery
Make sure the power is off before you remove the
battery.
1. Remove the battery cover.
Press and slide the battery cover toward the
bottom of the phone, and remove the battery
cover.
2. Remove the battery.
Hold the bottom edge of the battery and lift the
battery from the battery compartment.
3. Install the SIM card.
Insert the SIM card into the holder. Slide the SIM
card into the SIM card holder. Make sure that the
SIM card is inserted properly and that the gold
contact area on the card is facing downwards. To
remove the SIM card, press down lightly and pull
it in the reverse direction.
! Note
The metal contact of the SIM card can be easily damaged
by scratches. Pay special attention to the SIM card while
handling.
Follow the instructions supplied with the SIM card.
