2.
G_
®
a)Power supply indicator.
bjSleep mode indicator.
c) Temperature indicator.
d) Timer indicator.
e) Operation indicator
• use of particular Indicators depends on
model and series.
•• design of Indicator symbols may differ
depending on model and series.

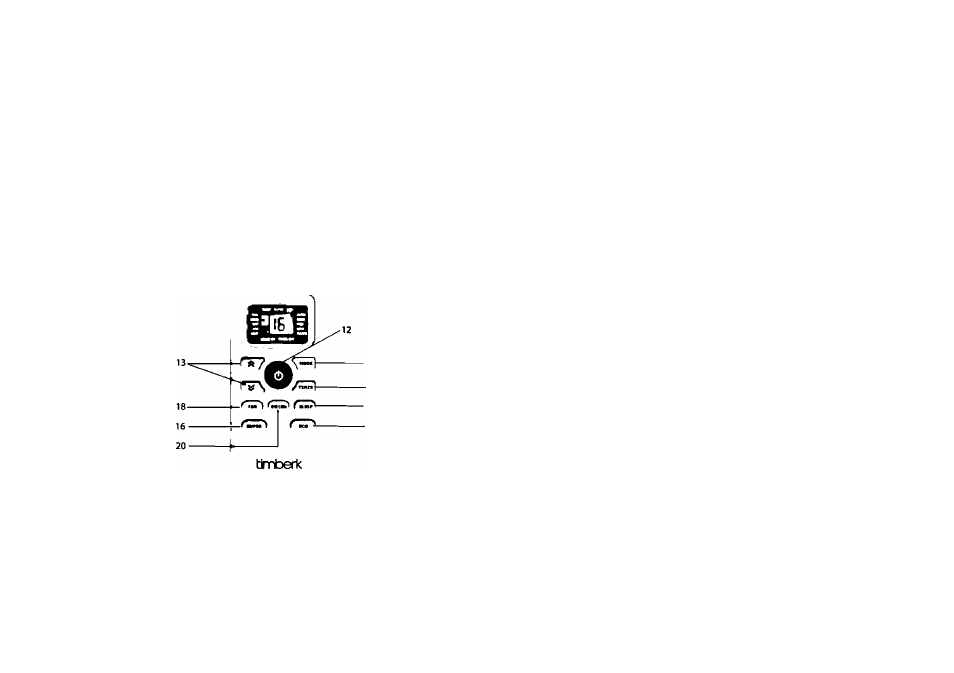

Rgure 3. Description of remote control board
- 17
19
12. Button «ON/OFF» (Povyer). Using this button, you may turn the conditioner
on or off.
13. Buttons «TEMP» (increase/decrease). Using this button, you may set needed
air temperature indoors.
14. Button «FAN». Using this button, you may select rotation speed of the
indoor unit fan; «Auto», «High», «Middle», «Low».
In "Auto' mode the fan speed will change automatically. In dry mode the fan
speed will remain unchanged -“Low".
IS.Button «SWING». Using this button, you may regulate position of air-
outlet blinds and forward treated air up and down.
1 B.Button «TIMER». Pressing this button, you may set the time for turning the
conditioner on and off (set the time by pressing "TEMP" buttons up and
down). If the conditioner is off, you may set the time for automatic turning
on in a set time interval. And vice versa, if the conditioner is on, you may set
the time for automatic turning off. Before activation of the Timer function
you may specify the needed settings.
17.Button «TURBO». Using this button, you may turn the turbo mode on and
off. in this mode the conditioner shows the maximum cooling (in cool mode)
or heating (In heat mode) capacity.
1 B.Button «ECO» (Economic). Using this button, you may turn the economic
mode on and off. In this mode temperature will Increase (In cool mode) or
decrease (In heat mode) slightly - by 2°C from the specified one.
19. Button «SLEEP» (Night Care). Using this button, you may turn the sleep
mode on and off. In this mode. If working for cooling, the conditioner will
increase temperature by 1 °C from the specified one within two hours. If
working for heating, the conditioner will decrease temperature by 1 °C from
the specified one within two hours. After 10 hours of operation the
conditioner will turn off automatically.
20. Button for selection of operating mode - «MODE». Using this button, you
may select a needed operating mode: AUTO, COOL, DRY, HEAT, FAN.
Indication of the control board display shall correspond to selected modes.
Work with remote control board
Mounting and replacement of batteries: mount two LR03 alkaline batteries,
according to polarity indicated on the remote control board.
In order to avoid malfunction of the remote control board do not insert used
batteries or batteries of various types.
If the conditioner is not used for a long time, remove batteries from the
board or else electrolyte may leak and damage the board.
In normal operation of the conditioner average service life of batteries will be
about a half-year.
Replace batteries, if command receiving is not confirmed with an audio
signal, or if the display does not show a sign of command transfer. When
generating commands from the remote control board, point an IR-radiator at
a remote-control signal receiver situated on the indoor unit Hold the remote
control board at the distance of no more than 8 m from the indoor unit.The
remote control board will network, if there are any curtains, doors or other
things between it and the indoor unit. Protect the board from water and
exposure to direct sunlight and heat sources.
